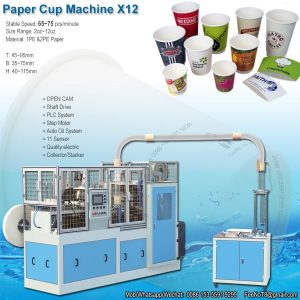

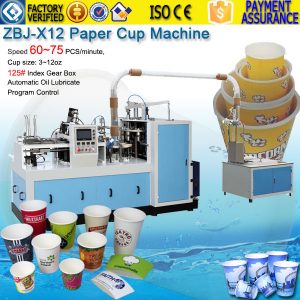

6.5oz Turkey Coffee Tea Paper Cup Machine ZBJ-X12

6.5oz Turkey Coffee Tea Paper Cup Machine ZBJ-X12 Video 6.5oz Turkey Coffee Tea Paper Cup Machine ZBJ-X12 Advanced : 1, Gears & Axis control movement, two index gear box, mor ...
BASIC INFO

6.5oz Turkey Coffee Tea Paper Cup Machine ZBJ-X12 Video

6.5oz Turkey Coffee Tea Paper Cup Machine ZBJ-X12 Advanced :

  • 1, Gears & Axis control movement, two index gear box, more efficient & accurate.
  • 2, HMI & PLC Program computer control, easy operate, fault auto-stop and easy solution.
  • 3, All procedure sensor detect (11-sensor control all step), Less wastage & fault, Reliable.
  • 4, Self lubrication (Automatic Oil Lubrication for machine moving part), long life time.
  • 5, Import electric Elements, Superior Bearing & Quality material, more durable and reliable.
  • 6, Working power only 3.5KW, save electric power cost.
  • 7, One worker can run 2sets machine (machine assemble cup stock), save labor cost.

6.5oz Turkey Coffee Tea Paper Cup Machine ZBJ-X12 description:

Paper Cup Forming Machine is an automatic machine with multi-working station, which has the function of photocell detection, failure alarm, counter and the advantages of humanism design, safer operation and easier maintenance.

It makes both one-side and two-side PE-film-coated paper cups after running a whole procedure of automatic Multi-step pre-printed-cup-fan-paper Feeding (Multi-step paper-feed and Anti-back device to keep the accurate position), cup-wall-side welding(ultrasonic wave), robot transfer cup body, silicone-oil lubricating(for top curling, Dimethyl silicone oil 201,Food Grade), bottom-disk punching, bottom pre-heating and pre-folding, main heating, bottom knurling(cool device for 2PE), top curling, cup discharging, collecting, blowing, pipe transfer to count and pack desk.

It is an ideal equipment of making 3~16oz paper cups(hot drink paper cup, cold drink paper cup, coffee paper cup, tea paper cup, ice cream paper cup, juice paper cup, milk paper cup, etc).



6.5oz Turkey Coffee Tea Paper Cup Machine ZBJ-X12 specification:

Model ZBJ-X12 ZBJ-X16
Rated Speed: Actual 65~75cups/m (4~12oz)
60~75 cups/minute
55~70 cups/minute
Paper Cup Size: 3 ~ 16 oz 8~22 oz
Raw Material: One-side or two side PE(polyethylene)film coated/laminated paper;
Suitable paper weight: 180~350gsm
Power Source: 50Hz, (220V single phase, 380V 3-phase, 50Hz),
(Better use 380V 3-phase)
* if User power different? Please INFO US IN ADVANCE.
Total Power: 6KW 6KW
Working Power: 3.5 KW 3.5 KW
Total Weight: GW/NW: 2750KG/2600KG GW/NW: 2950KG/2800KG
Pack Size (L*W*H) 2750 x 1240 x 1800 mm 2800x1300x1900
Working Air Source: Air pressure:0.4Mpa;  Air Out-put:0.6m³/minute
User should BUY Air Compressor
Cup Side Welding: Ultrasonic
Cup Bottom Heating: Hot Air  (Air compressor supply air)
Cup Bottom Knurling: Heater Knurling (if use single PE coated paper)
Cool Device (circle water) knurling, for double PE coated paper
Available to make special machine & molds on user order.
