Green industry for carton paper container cup plate tray dish box bag etc.


Carton Erecting Machine QH-9905 Model

  • Name: Carton erecting machine QH-9905
  • Speed: max 180 pcs/minute,
  • Seal: by water glue,
  • Price: contact us,
  • Make carton box,
  • Hamburger box (8 corner seal box),
  • Take away box, foodpail, lunch box,
  • French fries box,
  • Boat tray,

Carton Erecting Machine QH-9905 Video :

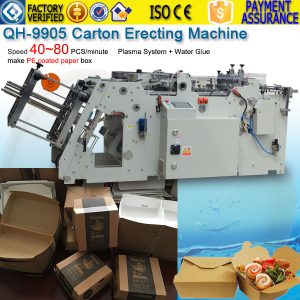

Carton Erecting Machine QH-9905 Picture:

carton erecting machine

carton erecting machine

Carton Erecting Machine QH-9905 Description:

QH-9905 box forming machine is an automatic machine, specialize in making food carton, box, container which are made from cardboard, paper, paperboard, carton, corrugated paper etc.

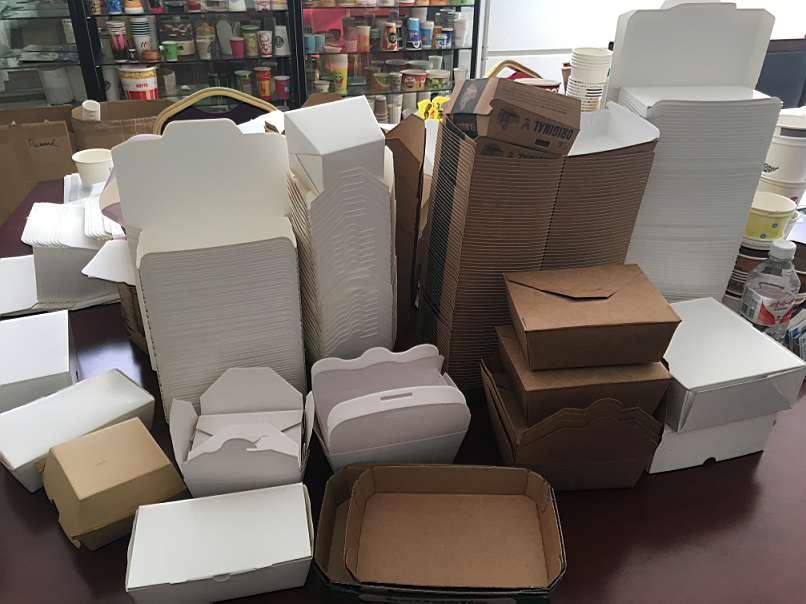

The food box(carton, container, dish, tray) is widely used as food container, hamburger box, burger box, hot-dog box(tray), one block box, food pail box (Chinese food box, take-away box), noodle box, fries box(chips box, chips tray), lunch box, meal box, etc.


Carton Erecting Machine QH-9905 Advantage:

  • # Compact structure, Strong frame, keep the machine reliable and durable with low noise.
  • # Hard Plastic-glass cover, Safe and visible for user.
  • # Easy exchange molds to make different products, charging and adjusting time is very short.
  • # PLC program control the whole line, available to make complicated boxes.
  • # Automatic collection, stock, and count.
  • # Human being designed control button and panel, more easy and safe runs by user.

Carton Erecting Machine QH-9905 Technical Specification:

  • Model: QH-9905 Carton Erecting Machine
  • Paper box forming machine
  • Speed: 80~ 180 box/minute
  • Welding Method: Water-Glue System Welding; (Food grade glue, POLYVINYL-ACETATE EMULSION),
  • Available Material: 200~600gsm cardboard, paperboard, paper, film coated paper, etc.
  • Material Thickness: Max. 1.5mm
  • Power: 3KW,
  • Power Source: 380V, 220V 50/60Hz,
  • Machine Size (L*W*H): 2950*1320*1500
  • Weight: 2000KG;
  • Air Source: Pressure: 6KG/cm2 ; Out-put: 200 L/minute ;
  • Available to make machines and molds on user order.

Carton Erecting Machine QH-9905 Standard Output Capacity :

  • One block paper box(4-corner box without cover), Max. 180pcs/min;
  • Fries box (chips box, chips tray): Max. 150pcs/min,
  • Burger box (hot-dog box): Max. 120pcs/min,
  • Food pail (DEEP food box): Max. 100pcs/min,


Manufacturer & Supply:

  • PE Coated Paper (reel & sheet, Single PE & Double PE),
  • Printed & Cut Cup Fan Stock (PE coated paper),
  • Paper Printing Machine (Roll, Flexo printing machine, printer),
  • Cup blank offset printing machine (offset printer),
  • Roll Cup Paper die cutting machine,
  • Roll paper punching machine,
  • Semi automatic creasing & cutting machine,
  • Cup/Plate/Dish/Box Paper Blank Die Cutting Machine,
  • Paper cup machine (paper cup forming/making machine),
  • Paper bowl machine (paper bowl forming/making machine),
  • Popcorn cup bucket making machine,
  • Coffee cup making machine,Ice cream cup making machine,
  • Soup bowl making machine, Noodle box making machine,
  • Paper Cup Sleeve Forming & Wrapping Machine, Double wall paper cup machine,Ripple cup making machine,
  • Paper Cup Counting & Packing Machine,
  • Plastic lid forming machine (plastic container forming machine),
  • Paper cup handle making machine,
  • Paper plate machine (paper plate making/forming/press machine),
  • Paper dish machine (dish making/forming/press machine),
  • Paper tray machine (tray making/forming/press machine),
  • Super Golden Paper Plate Machine, Pneumatic Paper Plate Machine,Hydraulic Paper Plate?Machine,
  • Carton Box Tray Erecting machine (box erecting machine, tray erecting machine),
  • Carton erector, Box making machine, box forming machine,
  • Box gluing machine, Tray gluing machine,
  • Paper Lunch Box Machine, Lunch box making machine, Lunch box forming machine,
    Paper Meal Box Machine,
  • Paper Dinner Case Machine,
  • Paper Food Pail Machine,
  • Paper Noodle Box Forming Machine,
  • Paper Box Forming Machine, Burger Box Machine,
  • Fry Chips Box Machine,
  • Paper Boat Tray Forming Machine,
  • Paper Tray Making Machine,
  • Disposable Paper Cups,
  • Double Wall Paper Cups,
  • Ripple Paper Cups, Corrugated Paper Cups
  • Ice Cream Paper Cups, Popcorn Paper Cups,
  • Coffee Paper Cups, Tea Paper Cups,

Carton Erecting Machine Qh-9905 Price Inquiry:
