آلة كأس الورق فينوت

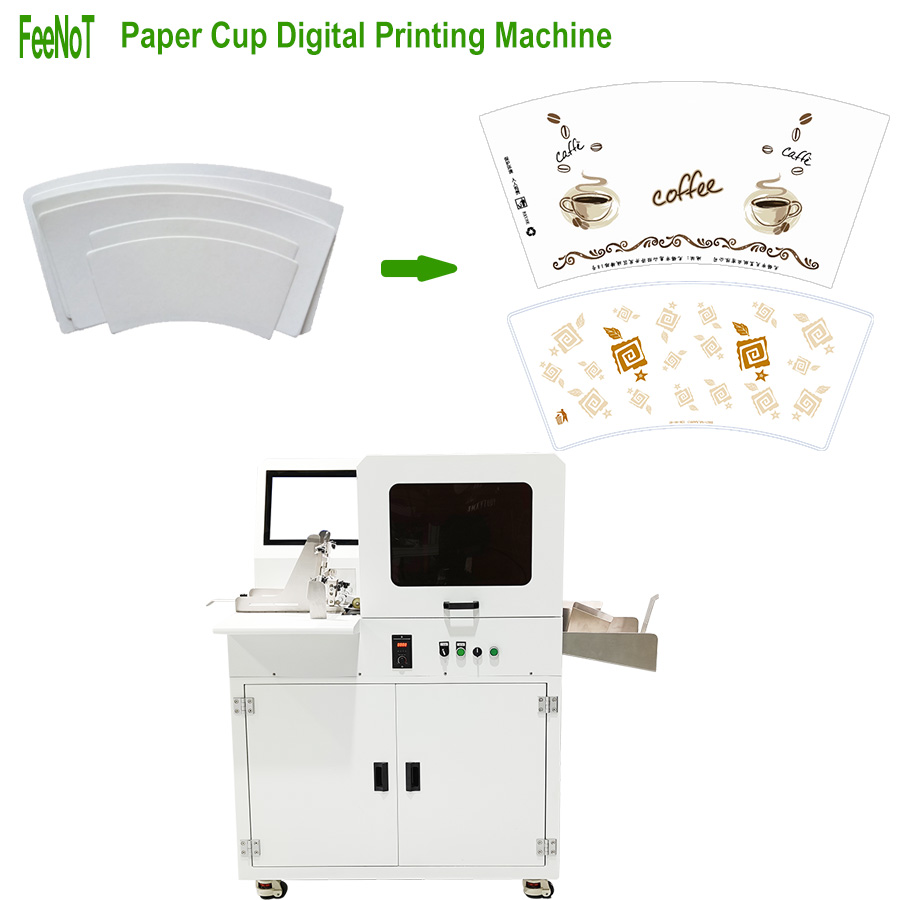

Paper cup digital printing machine – cup fan digital printer, is an automatic printer, print on paper cup fan blanks.
It is right option for customize logo printing, apply for paper cup box plate container printing press.
Paper cup digital printing machine
أولاً, Paper cup blank digital printer, USB upload file to HMI, start machine, auto print, Easy working,
just upload the print artwork to machine computer, then start the machine, مروحة كوب الورق تغذية فارغة, automatic print on the cup fan.
So, this printer is just like a computer printer, which is simplely apply the photo/image file, and print the image on paper cup fan blank.
Also, it is an ideal printer press for customize print, small quantity print, not suggest for large order print, not suggest print full color printed.
The paper cup digital printer is a color digital printing machine customized for the paper cup manufacturing industry on the market.
While print patterns on the surface of water absorbing materials such as single paper cup sheet, cup cover, food paper bag, paper bowl sheet, special paper, وهلم جرا.
There is no order quantity, no waiting, no plate making, and it can be printed when the machine is open.
The maximum number of pieces printed in one minute can reach 300pcs per minute, CMYK four-color printing, computer operation, and easy to learn, Ordinary office clerks can operate, and small batch customization orders can be easily solved.
Specification of Paper cup digital printing machine:
| نموذج | 210CB | 型号 | 210CB |
| Ink | environment-friendly water-based ink | 墨水 | 环保水性墨水 |
| Resolution | 1200dpi | 分辨率 | 1200dpi |
| Spray printing width | 210 مم | 喷印宽度 | 210MM |
| Feed Material thickness | 125~600gsm paper/cardboard/carton etc, | 进纸厚度 | 125-600克 |
| حجم الكوب | 2~22 oz | 适用规格 | 2~22 oz 盎司 |
| مادة | Absorbent paper cardboard (cup paper) | 适用产品类型 | 可吸水材质的纸杯片 |
| Feed blank width | 50~350 mm | 进料宽度 | 50-350MM |
| Feed blank length | 50~250 mm | 进料长度 | 50-250MM |
| Jet printing speed | 0-60 m/minute (Max 300 PCS/min) | 喷印速度 | 0-60米/分钟 (300片/分钟) |
| Support color | CMYK (Red, Yellow, Blue, Black) | 支持颜色 | CMYK (红、黄、蓝、黑) |
| Input power supply | 220v 50Hz/60Hz single phase | 输入电源 | 220v 50Hz/60Hz |
| القوة الكلية | 3.5KW | 功率 | 3.5KW |
| حجم الآلة | 1400 x 900 x 1400 مم | 整机尺寸 | 1400 x 900 x 1400 مم |
| حجم الحزمة | 1550 x 1100 x 1600 مم | 包装尺寸 | 1550 x 1100 x 1600 مم |
| وزن | NW/GW: 287كجم / 305كجم | 整机重量 | 287KG/305KG |
| Working environment | Temperature 15-35°C
Relative humidity 20% – 80% |
工作环境 | 温度15-35° C
相对湿度20%-80% |
| Operating system | WIN7 / WIN10 | 操作系统 | WIN7，WIN10 |
| Support image format | BMP/JPG/PDF/TIFF | 支持图像格式 | BMP/JPG/PDF/TIFF |
| نحن نحتفظ بالحق في تغيير المواصفات دون إشعار مسبق. | |||
Advanced:
- No plate making, no minimum order quantity, import pictures and start printing.
- Digital printer machine supports gradient printing, print and dry immediately, no need to dry, small space.
- Adopt water-based environmentally friendly ink, healthy and odorless,
- Fully automatic loading and unloading, one person can operate,
- Supports multiple image merging and printing, no need to repeat image adjustment.
- For customize order, small quantity order, sample orders.
