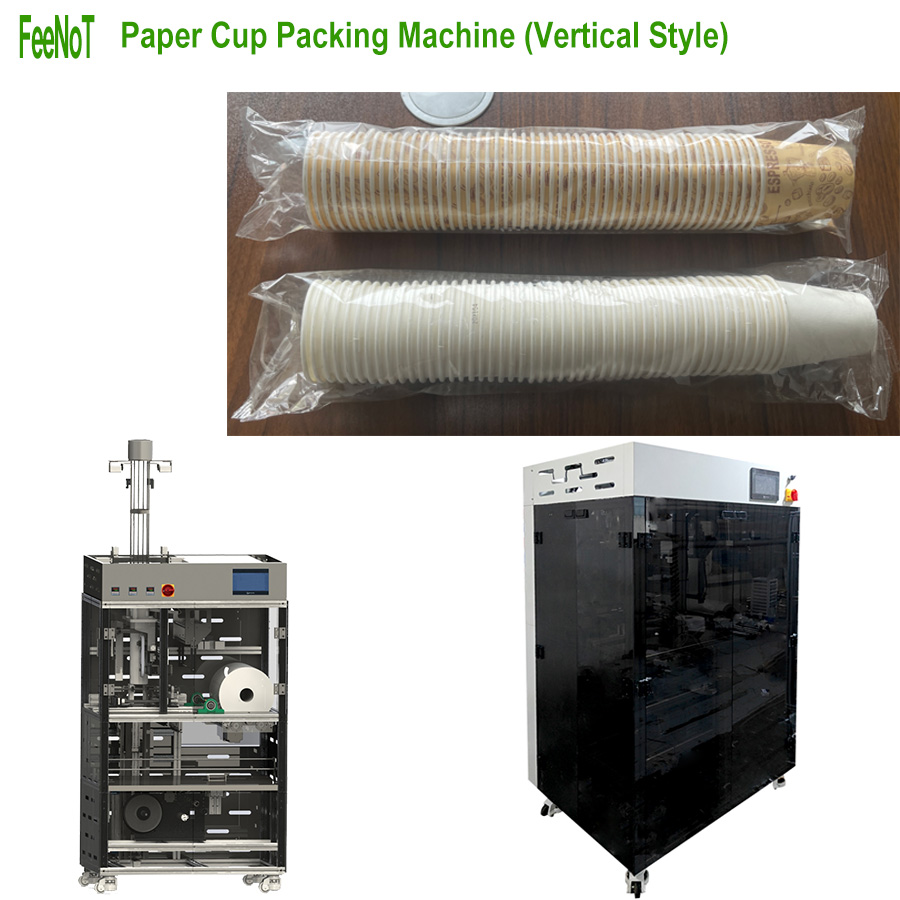

Vertical paper cup packing machine

Vertical paper cup packing machine, directly connect to paper cup bowl machine, seal film bag, auto count pack cup bowl into film bag, save space, تكلفة السعر المنخفض, عملية سهلة.

أولاً,this machine is a 3 side plastic paper bag sealing and making machine,
center horizontal sealing by heater inside,
side end seal by heating blade,
also auto cut by pneumatic drive blade.

This machine connect the cup collector directly, save the space and easy control.

It is an ideal quipment for packing paper cups, especially for some shot ice cream cup bowl, which is not easy to drop the cup piles, or cups easy separate while drop piles.

طلب: pack paper cups, الأوعية الورقية.

Specification of 780 Vertical paper cup packing machin:

Technical Parameters				技术参数
نموذج	FNT-780	FNT-780		型号
سرعة:	10 bags/minute	10 包/分钟		包装速度
Film material:	PE film or other with PE coated	PE膜、其他PE复合膜		包装膜材质
Max film width:	400مم			最大包装膜宽度
Film Max unwinding diameter:	300مم			最大放卷直径
Pack height:	≤ 780 مم			包装高度
حجم الآلة:	1100 x 780 x 1900mm			机器尺寸
وزن:	240 كجم			重量
القوة الكلية:	2KW			总功率
Power source:	220الخامس 50/60 Hz 1-PH,		220V单相	电源要求
تحتاج الهواء:	Air pressure:0.6~0.8Mpa; Air Out-put:500ل/دقيقة			气源
نحن نحتفظ بالحق في تغيير المواصفات دون إشعار مسبق.

Advanced:

dierct connect cup bowl making machine,
auto seal and make filme bag,
straight drop cup stacks to bag, no extra works,
feed film roll, no core shaft, 3 or 6 inch core both suitable,
With PLC control, touch screen, سهلة التشغيل,
save space, one machine connect one cup mahcine is good option,
طلب: pack paper cups, الأوعية الورقية.

Machine working flow:

cup collector count, shaking, stack cups,
auto seal center side, also the side ende seal and cut,
auto drop stack cups into film bag,
with labeling parts, auto label make,
joint with one cup machine is best option, also can connect to 2sets cup mahcine, this require to change collector.
