Paper lid packaging machine

Paper lid packaging machine – packing cup bowl container lid, speed 15~20 bags/min, auto count, seal 3-side bag, pack paper cup lid cover cap into plastic paper bag, full automatic.

Paper lid packaging machine info

Firstly, it is devoloped on customer requirement, to packing paper lid cover cap.
With auto count, lid slide down, puch and collect, stack, push every 50pcs lid into film bag,
machine automatic make 3 side sealing paper/plastic film bag, online with paper cup lid machine, full automatic.

Widely used to pack solid objects/items,
such as cartons, paper cups lids plates trays, soap, biscuits, bread, instant food, cakes,
candies, medicines, daily necessities, daily chemicals, hardwares, metal parts, and so on.

New testing, use 80gsm light PE film coated paper, auto make 3side seal paper bag, and pack paper lid cover cap cup box container.

Specification of Paper lid packaging machine

• 속도: 10~20 bags/minute,
• Lid diameter: 40~ 120 mm diameter,
• Bag length: 100~600mm,
• Max film width: 450mm,
• Film: OPP, CPP, PP,
• Plastic Film thickness: 15~30 um (0.15~0.3 mm),
• Film Max unwinding diameter: 450mm,
• Fiml core: 3inch,
• 총 전력: 2.8KW,
• Power source: 220V single phase, 50HZ,
• Air Source : Air Pressure: 0.4Mpa, Air output: 100~300L/minute,
• 무게: 500kg,
• Size: 2250 엑스 800 엑스 1340 mm on order, against lid size,
• 힘: 380v 3 상 50/60 HZ,
• We Reserve the right to alter specifications without prior notice.
• 애플리케이션: packing paper lid cover cap cup bowl container,
• Other application: packing solid items, soup, plate, dish, box, metal,

How to pack paper lid cover cap

• the lid come out from lid machine slide to pack machine,
• auto feed lid and count to stack function,
• after lid arrival set number, send to film pack machine,
• PLC program control, sensor detect lid, send film (set length),
• wall horizontal seal & vertical side seal cut blade.
• convey transfer packed bag to carton box or pack area.

How to package paper cup bowl containers

• Connect to cup machine, every 20 30 50cups stack feed,
• Sensor and PLC keep stable and reliable.
• Film wall gear heating seal & two side seal blade cut,
• Convey the bags to carton box or connect to shrink machine.
• Can set double row or single raw pack.
• Against customer order, connect 2, 4, 6, sets cup machines.

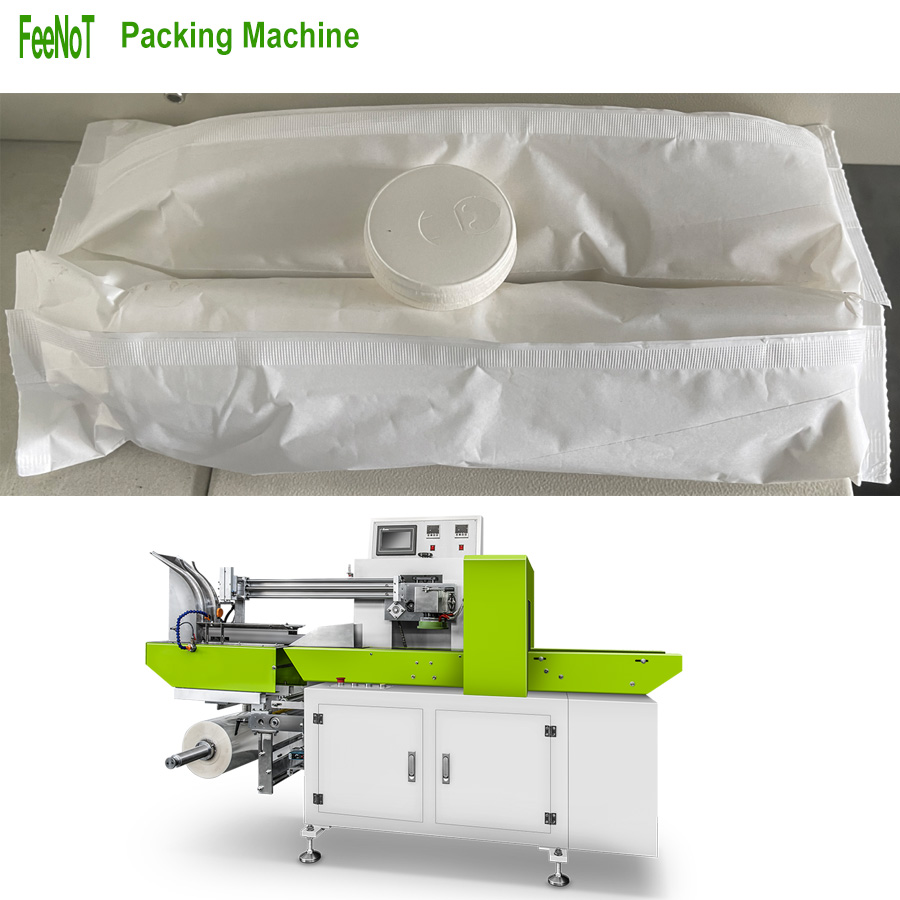

Paper lid packaging machine – packing cup bowl container lid
