2026 Ultra-Fast Paper Cup Forming Machine 150S Boost Output

Boost Output: 2026 Ultra-Fast Paper Cup Forming Machine 150S , fully-servo system diven, acelerar até 150 PCs/min, produces 3~16oz paper cups,

High speed production, boost your paper cups output, big win.

Servo-system, Stable, Velocidade, Smart, Self-water-spray, alta qualidade, melhor preço competitivo.

2026 Ultra-Fast Paper Cup Forming Machine 150S Boost Output

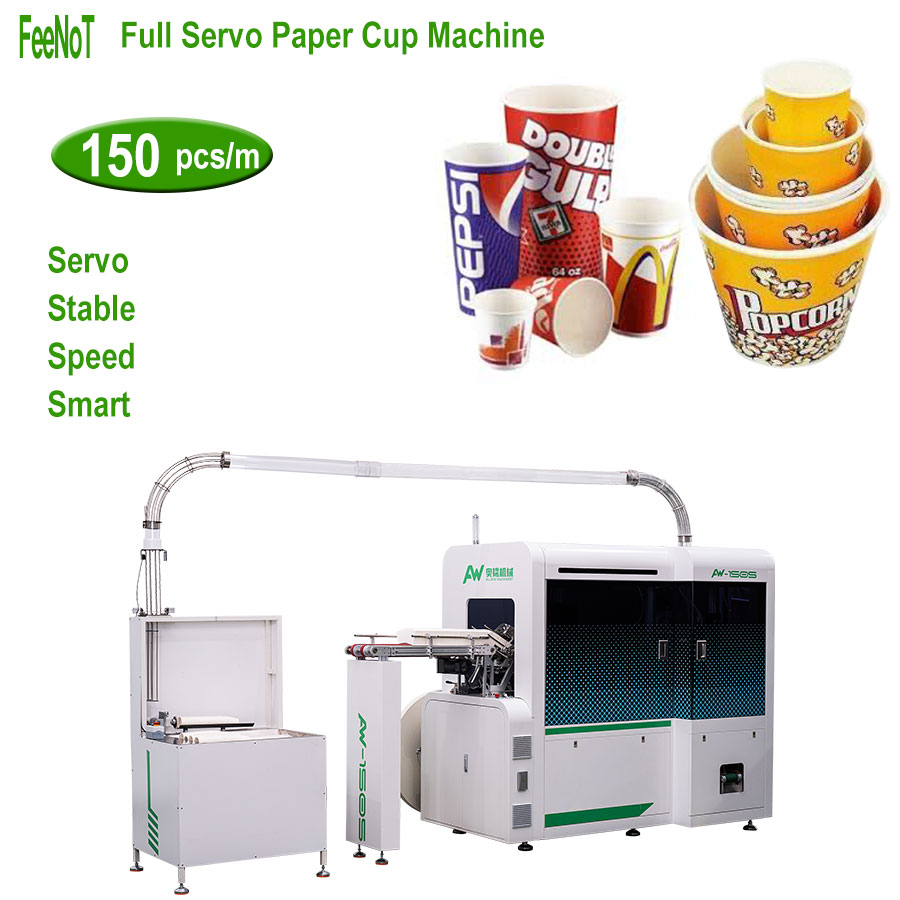

The ALLWIN AW-150S fully servo paper cup machine boasts speeds up to 150 cups per minute, producing disposable paper cups from 3 para 16 ounces.

The latest, máquinas de última geração, 150s fully servo-driven paper cup machine utilizes advanced technology, combining flexibility, high-speed operation, low maintenance costs, and an affordable purchase price.

Características: Improved ergonomic design for higher efficiency, stability, and reliability.

All processes are fully servo-driven. The servo drives operate independently, controlling each station with extremely high precision, while simultaneously working collaboratively to coordinate synchronized movements.

It replaces older, complex mechanical paper cup machines (long shafts, engrenagens, cames, correntes, linkages).

In older machines, a single component failure required the user to move all gears and cams, making repairs or replacements difficult and causing machine downtime.

Aplicativos: Suitable for 3-16 ounce disposable hot and cold beverage paper cups (café, chá, milk, cola, suco, sorvete), fries cups, food containers, and other packaging solutions.

Specification of servo paper cup forming machine 150s:

• Modelo: 150S Servo mergulhado,
• Velocidade: 150 PCs/min (9000 Copas/hora),
• Tamanho do copo: 3~ 16oz,
• Principal: 45~ 100 mm,
• Fundo: 38~ 70 mm,
• Altura: 45~ 135 mm,
• Material: 150~ 320 GSM 1PE & 2No papel,
• Peso: 3350KG,
• Máquina:3200x1650x1900mm,
• Coletor: 1100 x 1100 x 2100mm (contra o tamanho do copo ),
• Poder de trabalho 10kW, Poder total: 35KW,
• Poder: 380V 3-fase 50/60 Hz,
• Precisa de ar (pressão:0.3~ 0,5mpa, Saída:300~ 500 l/m),
• Aplicativo: quente (chá de café) frio (Cola JUIC Icecream) Copo de papel,



2026 Ultra-Fast Paper Cup Forming Machine 150S Boost Output

• 1, + QUALITY INOVANCE SERVO + REDUTOR DE SHIMPO. High precision quality servo, ensure the machine’s High speed, High accuracy, High stability and reliability, reduce the failure rate and maintenance cost.
• 2, + 10Molo de liga PCS molde principal + 8PCS molde de curling (divide in integer angle, HIGH precision and stable).
• 3, 10-inch Human-Machine Interface: Easy operation, inteligente, and high efficient.
• 4, Group-based Servo Control System: Provides superior precision control at each workstation, enabling coordinated and synchronized movement.
• 5, High Precision: High quality servo motors enable precise position and speed control, ensuring the accuracy of paper cup forming.
• 6, High Efficiency: The rapid response and high speed of servo motors significantly improve paper cup production efficiency.
• 7, High Automation: The digital control system achieves a fully automated production process from paper feeding to paper cup forming.
• 8, High Stability: The high stability and reliability of servo motors reduce equipment failure rates and maintenance costs.



Industry-Leading Servo system

• Servo de papel oblíquo,
• Ultrasonic seal servo,
• Cup wall wing clamp servo,
• Cup fan & wall transfer servo,
• Servo de virar parede do copo,
• Servo de elevação de parede de copo,
• Bottom disc lift servo,
• Bottom feed servo,
• Servo recartilhado,
• 10 divide plate servo,
• 8 divide plate servo,
• Auto spray water servo,

Foto:
