Servo -Pappbechermaschine
Ripple -Pappbechermaschine – Doppelwandkaffeetasse Maschine, speed is up to 150 PCs/min, make and wrap a jacket sleeve around inner single wall paper cups, making anti scalding coffee cup, hot insulation paper cups.
Ripple paper cup machine 150s info:
Erstens, Double wall ripple cup machine is an automatic machine, after running a whole process as below:
- sleeve fan feed and suck,
- hot melt glue spray (option),
- ultrasonic sealing (copper option ),
- lift wall to main mold, bottom fold, Knurling,
- transfer sleeve wall to stick plate,
- spray a circle water glue (servo motor control, rotate a circle) inside the sleeve wall,
- suck cup down to sleeve,
- push the sleeve into cup rim space,
- Entladung, zählen und sammeln.
First of all, ripple double wall cup sleeve forming & adhesive machine is designed for market requirement.
While hot water coffee tea into single wall paper cups, too hot to hold by hand, the heat will scald the hand finger, to anti-scalding, make a second wall around paper cups to provent hot.
From the market, double wall style: hollow paper cup sleeve machine, ripple paper cup sleeve machine, emboss paper cup jacket machine,
To make ripple double wall paper cups, require two machine together, first is single wall cup making machine, and second is the double wall cup jacket sleeve wrap machine.
Anwendung: ripple wall paper cups, double wall paper cups, corrugated paper cups.
Advantage list:
- Servo motor system replace old complex mechanism transmission,
- Alter sperriger langer Schacht-Cam-Gear einfacher Abnutzung, gebrochen,
- Servo+ECAM+Plc+HMI, effizient, intelligent, stabil, zuverlässig,
- Voller Servo, Genauigkeit, stabil, zuverlässig, Einfacher Betrieb, weniger & Einfache Wartung.
- 1), Rotate suck paper & side wall sealing Servo,
- 2), Fan-Blank & Tasse Wandtransfer Servo,
- 3), Tassen Wandflip -Servo,
- 4), Tasse Wandliftservo,
- 5), up/down board servo (unterer Schlag, Heizung, Knurling, Top Curling),
- 6), 10 Index Hauptformplatte Servo,
- 7), single wall cup drop servo motor,
- 8), 8 index plate servo,(stick sleeve around single wall cups)
- 10PCs Quality Verbündete Tasse Form, Winkel 36 Grad,
- 8 index plate , Winkel 45 Grad,
- 38mm dicke Ganzstahlplattenstrukturbasis, stabil & zuverlässig,
- Sleeve wall blank feeder 1 Meter (hohe Geschwindigkeit, Füttern Sie einmal mehr Rohlinge)
- Sleeve wall welding by ultrasonic (+ hot melt option),
- Auto bottom folded (hollow double wall cup sleeve),
- Circle spray water glue inside sleeve wall,
- Water glue stick the double wall sleeve and inner cup.
- Water Glue: (polyvinyl acetate emulsion),
- Option: Hot melt glue for side wall sealing, und so weiter.
Specification of Ripple paper cup machine 150s
- Modell: 150S DW16,
- Geschwindigkeit: bis zu 150 pcs/minute,
- Tassengröße: 4~ 16oz,
- Spitze: 45~ 100 mm,
- Unten: 30~72 mm,
- Höhe: 30~ 135 mm,
- Material: 150~ 320GSM Filmbeschichteter Papier, paper with glossy/varnish print,
- Gewicht: 3000Kg,
- Maschine:3000x1500x2100mm,
- Kollektor: 900 X 700 x 2100 mm (gegen die Bechergröße )
- Gesamtleistung: 30KW (working power 8KW),
- Leistung: 380V 3-Phasen 50/60 Hz,
- Brauche Luft (Druck:0.3~ 0,5 MPa, Ausgabe:300~ 500 l/m),
- Anwendung: ripple double wall paper cups bowl container,
Bild:

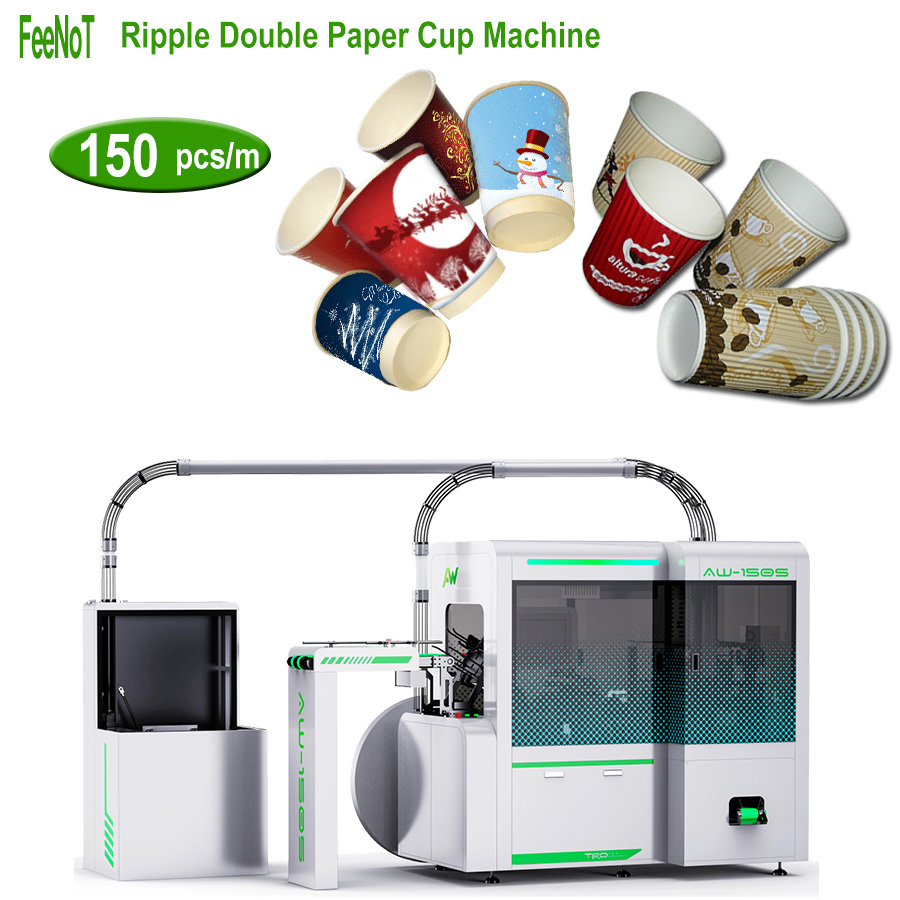

Ripple -Pappbechermaschine – Doppelwandkaffeetasse Maschine 2
