फीनॉट पेपर कप मशीन
Boost Output: 2026 Ultra-Fast Paper Cup Forming Machine 150S , fully-servo system diven, तक की गति 150 पीसीएस/मिनट, 3~16oz पेपर कप का उत्पादन करता है,
High speed production, boost your paper cups output, big win.
Servo-system, Stable, रफ़्तार, Smart, Self-water-spray, उच्च गुणवत्ता, सर्वोत्तम प्रतिस्पर्धी मूल्य.

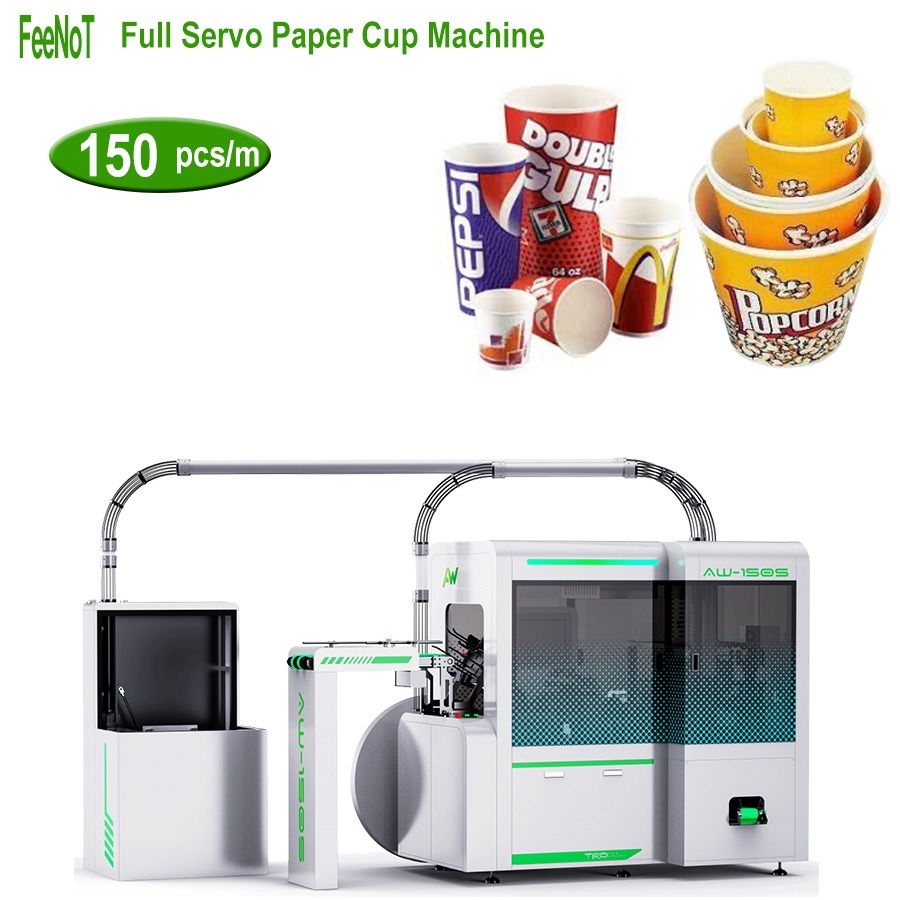

2026 Ultra-Fast Paper Cup Forming Machine 150S Boost Output
The ALLWIN AW-150S fully servo paper cup machine boasts speeds up to 150 cups per minute, producing disposable paper cups from 3 को 16 ounces.
The latest, अत्याधुनिक मशीनें, 150s fully servo-driven paper cup machine utilizes advanced technology, combining flexibility, high-speed operation, low maintenance costs, and an affordable purchase price.
विशेषताएँ: Improved ergonomic design for higher efficiency, stability, and reliability.
All processes are fully servo-driven. The servo drives operate independently, controlling each station with extremely high precision, while simultaneously working collaboratively to coordinate synchronized movements.
It replaces older, complex mechanical paper cup machines (long shafts, गियर, कैम, चेन, linkages).
In older machines, a single component failure required the user to move all gears and cams, making repairs or replacements difficult and causing machine downtime.
अनुप्रयोग: Suitable for 3-16 ounce disposable hot and cold beverage paper cups (coffee, tea, milk, cola, juice, ice cream), fries cups, food containers, and other packaging solutions.
Specification of servo paper cup forming machine 150s:
- नमूना: 150एस सर्वो डाइवेन,
- रफ़्तार: 150 पीसीएस/मिनट (9000 कप/घंटा),
- कप का आकार: 3~ 16oz,
- शीर्ष: 45~ 100 मिमी,
- तल: 38~ 70 मिमी,
- ऊंचाई: 45~ 135 मिमी,
- सामग्री: 150~ 320 GSM 1PE & 2कागज पर,
- वज़न: 3350किलोभास,
- मशीन:3200X1650X1900 मिमी,
- एकत्र करनेवाला: 1100 एक्स 1100 x 2100 मिमी (कप आकार के खिलाफ ),
- वर्किंग पावर 10kw, कुल शक्ति: 35किलोवाट,
- शक्ति: 380वी 3-चरण 50/60 हर्ट्ज,
- हवा की जरूरत है (दबाव:0.3~ 0.5mpa, उत्पादन:300~ 500 एल/एम),
- आवेदन: गर्म (कॉफी चाय) ठंडा (कोला जिक आइक्रेम) पेपर कप,
2026 Ultra-Fast Paper Cup Forming Machine 150S Boost Output
- 1, + QUALITY INOVANCE SERVO + शिम्पो रेड्यूसर. High precision quality servo, ensure the machine’s High speed, High accuracy, High stability and reliability, reduce the failure rate and maintenance cost.
- 2, + 10पीसीएस मिश्र धातु मुख्य मोल्ड + 8पीसीएस कर्लिंग मोल्ड (divide in integer angle, HIGH precision and stable).
- 3, 10-inch Human-Machine Interface: Easy operation, बुद्धिमान, and high efficient.
- 4, Group-based Servo Control System: Provides superior precision control at each workstation, enabling coordinated and synchronized movement.
- 5, High Precision: High quality servo motors enable precise position and speed control, ensuring the accuracy of paper cup forming.
- 6, High Efficiency: The rapid response and high speed of servo motors significantly improve paper cup production efficiency.
- 7, High Automation: The digital control system achieves a fully automated production process from paper feeding to paper cup forming.
- 8, High Stability: The high stability and reliability of servo motors reduce equipment failure rates and maintenance costs.
Industry-Leading Servo system
- तिरछा चूसना कागज सर्वो,
- Ultrasonic seal servo,
- Cup wall wing clamp servo,
- Cup fan & wall transfer servo,
- कप दीवार फ्लिप सर्वो,
- कप वॉल लिफ्ट सर्वो,
- Bottom disc lift servo,
- Bottom feed servo,
- स्क्वीकिंग सर्वो,
- 10 divide plate servo,
- 8 divide plate servo,
- Auto spray water servo,
