FeeNoT Popcorn paper cup machine 70S is a customize cup forming machine, making high tall popcorn paper cup bowl, low price cost, stable and reliable, full automatic,
Popcorn paper cup machine 70S
It makes paper bowl container after a whole function for example: cup fan suck, cup body ultrasonic sealing, cup body lift to main mold, bottom punch and insert to cup body, bottom pre fold, heating, bottom knurling, cup top curling, discharge, count and pack desk.
First, this machine designed on oc12 paper cup machine, which is stable running for over 10 years in market.
Second, from customer report, we improved the machine system, 8 divide tube barrel cam control the 8 mold, reliable, and long life time.
Application: Food soup icecream salad paper bowls, instant noodle paper box, takeaway take out to go box, and so on.
Popcorn paper cup machine 70S specification
- Model: 70S T140 H180,
- Speed: 50~70 pcs/minute,
- Top: 75~140 mm,
- Bottom: 70~120 mm,
- Height: 70~180 mm,
- Material: 150~320 gsm 1PE & 2PE paper,
- Weight: 3000KG,
- Machine: 2450x1350x2100mm,
- Collector: 1500 x 450 x 1350mm,
- Total power: 15KW (ceramic hot air),
- Power: 380V 3-Phase 50/60 Hz,
- Need Air (pressure:0.3~0.5Mpa, Output:300~500 L/m),
- Application: customize high tall popcorn paper cup paper bow,
Advantage:
- Open cam easy maintenance compare with index gear box,
- One Cam (8 divide open cam),
- 8pcs main mold (steel + aluminium alloy),
- 25mm Thick Whole steel board structure base,
- PLC, intelligent control, automatic oil system,
- Cup wall welding: Ultrasonic,
- Bowl bottom heating: Ceramic hot air (2pcs 4.4KW),
- Robot collector or fly collector against cup bowl size,
Remark
- Price Term: FOB Ningbo port, China. (INSURANCE OUT OF CHINA COVERED BY THE BUYER)
- Payment Term: T/T payment (30% deposit, 70% before delivery). ** The buyer is welcomed to test machine before delivery.
- Delivery Time: 30~50 working days at sight the deposit. (actual delivery time given while order confirm)
- Package: Standard export package. (need special package, please info us in advance).
- Warranty: One year from the equipment arrival.
- Power Source: The power source: 380V 3-Phase, 50/60Hz (R, S, T, N line, please confirm power source before start order).

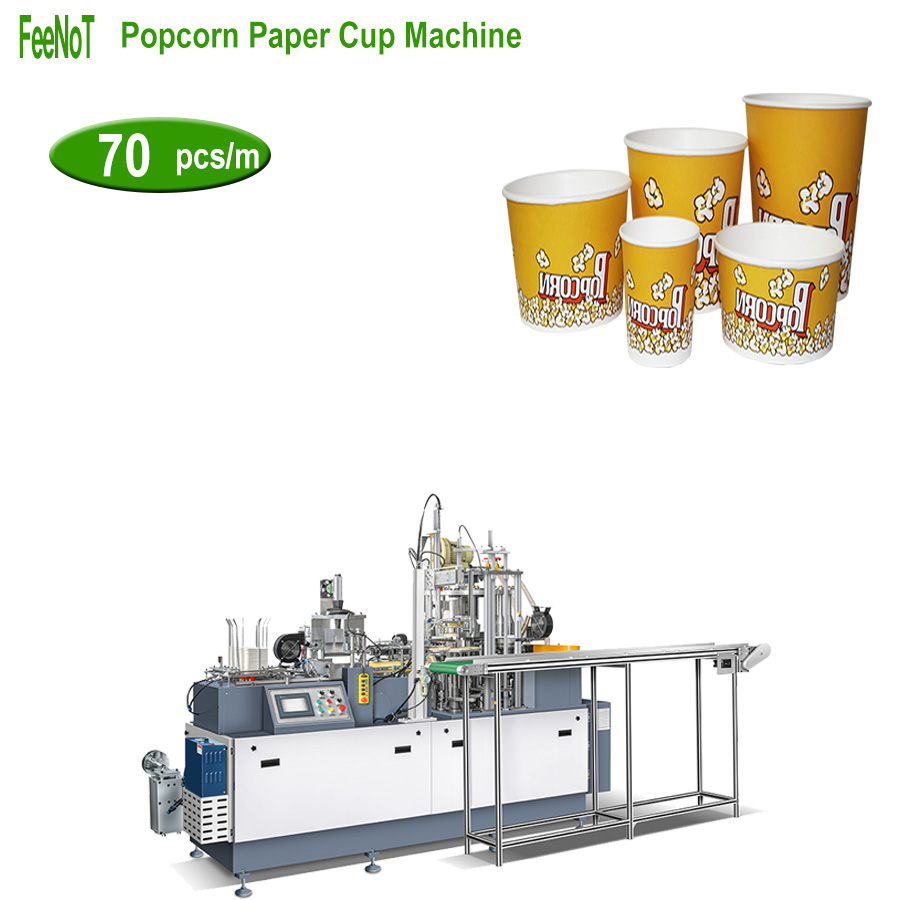

Popcorn paper cup machine 70S – customize cup making machine
