Mesin cangkir kertas Feenot
Mesin tutup cangkir kopi – automatic plastic glass lid making machine is a full automatic plastic thermoforming machine for cup glass plastic lid box container, best price cost.
Mesin tutup cangkir kopi
Disposable coffee cup lid machine is designed and created by us, with the demand of medical Industry’s GMP and food Industry’s QS Standards.
Pertama, it’s a new type that combines advantages of several types of main forming machines and adds improvement and innovation.
The machine can synchronous complete of production for forming Punching and blanking .
It avoids the cross-contamination of products during the forming artificial punching and artificial blanking.
So that the production process of our machine is fully in accordance with GMP as well as QS requirements .
The Special forming equipment and the special blanking equipment of machine can save electricity , all these can saving the costs of production.
The machine has beautiful appearance, concession price, convenient operation and humanized manufacturing, and it is deeply favored by users from home and abroad.
Aplikasi: PET/PS/PVC, plastic lid cover, plastic box, plastic container, dan sebagainya.
Specification of Coffee cup lid machine:
| Nama | Plastic Lid Forming Machine | |
| HS.CODE: | 8477800000 | |
| Model | FNT-420
One Line (standard) |
FNT-420S
Two or Three Line (or big size) |
| FOB Price | $1~$20.000 | $1~$30.000 |
| Extra mold: | $ | $ |
| Max Forming Area: | 410 X 150 mm | 410 X 320 mm |
| Bahan: | 0.15~ 0,55mm (HIPS, PET, PS, PVS, PVC, dll.) plastic reel film; | |
| Film Width: | Max Reel Width: 430 mm | |
| Punching Speed: | 8~32 beats/minute | 8~30 beats/minute |
| Max Forming Depth: | 30 mm | 55mm |
| Move Stroke Rage: | 30~160 mm | |
| Kekuatan: | 4.6KW | 6KW |
| Sumber Daya: | 380V 3-phase 50Hz, or other (power different, info us in advance) | |
| Berat: | GW/NW: 1000KG/800KG | 1200KG/1000KG |
| Ukuran paket: | 2300 X 1000 X 1900 mm | 2450 x100 x 2000 |
| Need Water Source: | Water Pressure: 0.2MPA; Water-Input: 0.3 m³/Hour | |
| Need Air Source: | Tekanan udara: 0.5~0.7 MPA; Air Input: ≥0.2 m³/minute, Need to buy Air Compressor | |
Keuntungan
Struktur kompak, Stable movement, Easy operation and maintenance;
Step-less frequency speed changing, PC electric control panel;
Move-stroke adjustable, Mold exchangeable;
Robot clamp-pull feeding, Accurate and reliable Synchronization;
Applicable Object: plastic tray, cangkir, container for food, hardware, pharmaceutical, dll..
Available to make the mold against customer requirement.
Komentar
- Istilah Harga: Pelabuhan FOB Ningbo, Cina. (ASURANSI KELUAR CHINA DITANGGUNG OLEH PEMBELI)
- Jangka Waktu Pembayaran: Pembayaran T/T (30% deposito, 70% sebelum pengiriman). ** Pembeli dipersilakan untuk menguji mesin sebelum pengiriman.
- Waktu Pengiriman: 30~50 hari kerja setelah deposit terlihat. (waktu pengiriman sebenarnya diberikan saat konfirmasi pesanan)
- Kemasan: Paket standar ekspor. (memerlukan paket khusus, mohon info kami terlebih dahulu).
- Jaminan: Satu tahun sejak kedatangan peralatan.
- Sumber Daya: Sumber listrik: 380V 3-fase, 50/60Hz (R, S, T, garis N, Harap konfirmasi sumber listrik sebelum memulai pesanan).

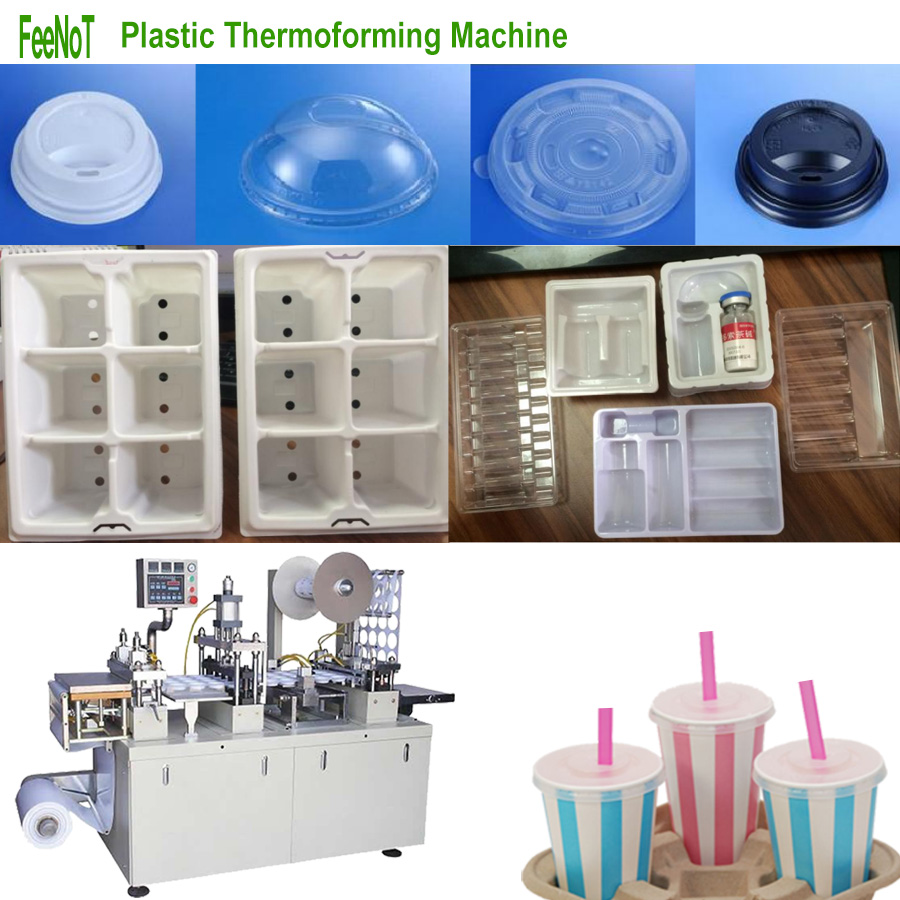

Mesin tutup cangkir kopi – Otomatis membuat tutup gelas plastik
