Mesin gelas kertas servo

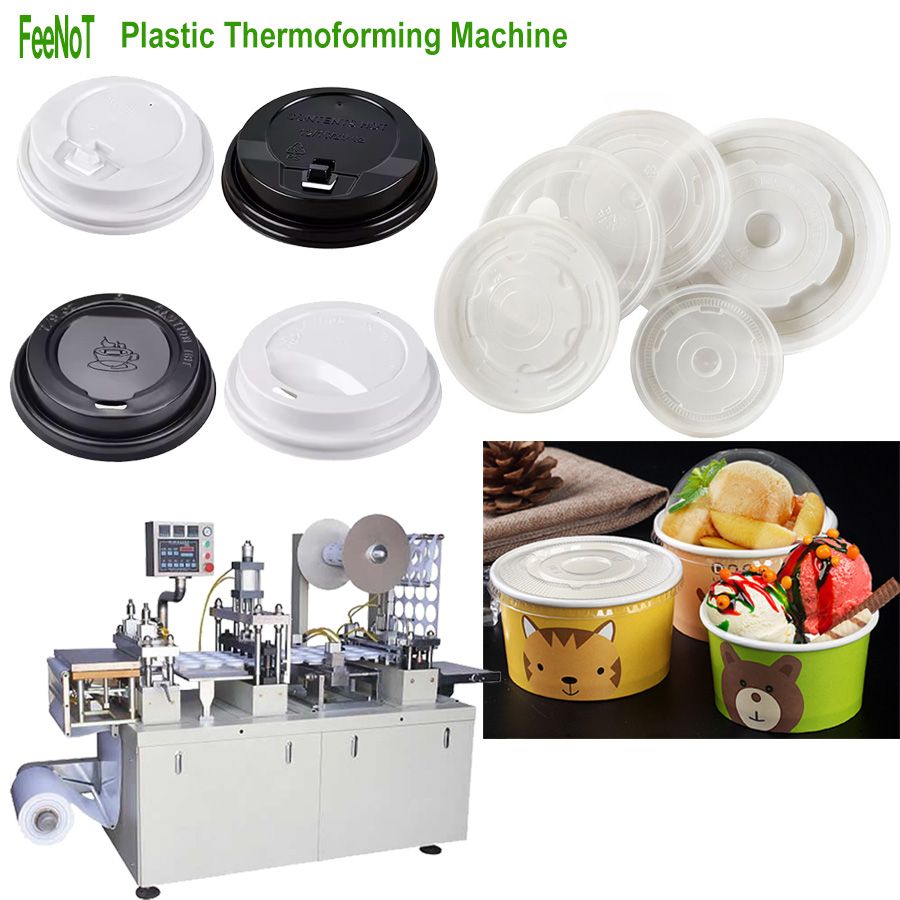

Mesin pembuat tutup kaca – mesin pembentuk wadah plastik, is a fully automatic plastic thermoforming machine, making plastic lid box container, stabil dan dapat diandalkan, kualitas terbaik, biaya harga rendah.
Mesin pembuat tutup kaca – mesin pembentuk wadah plastik
It is designed and created by us, with the demand of medical Industry’s GMP and food Industry’s QS Standards.
Pertama, it’s a new type that combines advantages of several types of main forming machines and adds improvement and innovation.
The machine can synchronous complete of production for forming Punching and blanking .
It avoids the cross-contamination of products during the forming artificial punching and artificial blanking.
So that the production process of our machine is fully in accordance with GMP as well as QS requirements .
The Special forming equipment and the special blanking equipment of machine can save electricity , all these can saving the costs of production.
It’s widely used in the medicine plastic tray, PET/PS/PVS and other plastic products etc.
The machine has beautiful appearance, concession price, convenient operation and humanized manufacturing, and it is deeply favored by users from home and abroad.
Aplikasi: PET/PS/PVC, plastic lid cover, plastic box, plastic container, dan sebagainya.
Specification of Glass lid making machine – mesin pembentuk wadah plastik:
| Nama | Plastic Lid Forming Machine | |
| HS.CODE: | 8477800000 | |
| Model | FNT-420
One Line (standard) |
FNT-420S
Two or Three Line (or big size) |
| FOB Price | $1~$20.000 | $1~$30.000 |
| Extra mold: | $ | $ |
| Area Pembentukan Maks: | 410 X 150 mm | 410 X 320 mm |
| Bahan: | 0.15~ 0,55mm (HIPS, PELIHARAAN, PS, PVS, PVC, dll.) film gulungan plastik; | |
| Film Width: | Lebar Gulungan Maks: 430 mm | |
| Kecepatan Meninju: | 8~32 beats/minute | 8~30 denyut/menit |
| Kedalaman Pembentukan Maks: | 30 mm | 55mm |
| Move Stroke Rage: | 30~160 mm | |
| Kekuatan: | 4.6KW | 6KW |
| Sumber Daya: | 380V 3 fase 50Hz, or other (power different, info us in advance) | |
| Berat: | Gw/tidak: 1000KG/800KG | 1200KG/1000KG |
| Ukuran paket: | 2300 X 1000 X 1900 mm | 2450 x100 x 2000 |
| Need Water Source: | Tekanan Air: 0.2MPA; Masukan Air: 0.3 m³/Jam | |
| Need Air Source: | Tekanan udara: 0.5~0,7 MPA; Masukan Udara: ≥0,2 m³/menit, Need to buy Air Compressor | |
Keuntungan
- Struktur kompak, Stable movement, Easy operation and maintenance;
- Step-less frequency speed changing, PC electric control panel;
- Move-stroke adjustable, Mold exchangeable;
- Robot clamp-pull feeding, Accurate and reliable Synchronization;
- Applicable Object: plastic tray, cangkir, container for food, hardware, pharmaceutical, dan sebagainya.
- Available to make the mold against customer requirement.
Mesin pembuat tutup kaca – mesin pembentuk wadah plastik
