Octagon food box making machine - paper berry basket machine

Octagon food box making machine – paper berry basket machine, adopts full servo motors driven, speed 50~200pcs/min, make carton paper box container tray, easy operate and change mold to make different shape size.

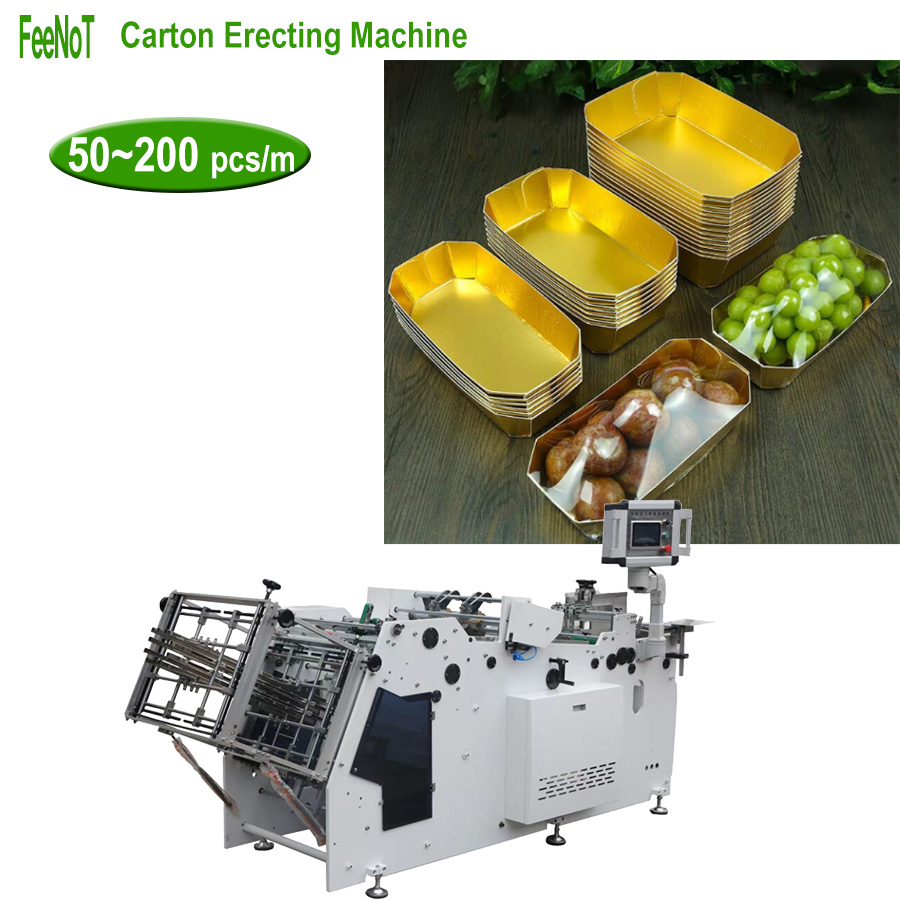

Octagon food box making machine – paper berry basket machine

Firstly, it is a fully automatic forming equipment, feed box die cut blank sheet, auto glue and adhesive, then forming the shape by mold press.

Latest update: adopt all servo motors replace old mechanism cam gear chain, which provide high efficient and stable performance, long life time;
and also servo motors system save exchange mold time.

Application: hamburger box, chips tray box, doner box, take away box, hot dog box, kraft food boat tray, and so on.

Specification of Octagon food box making machine – paper berry basket machine

Model: 800 4S,
Speed: 50~200 pcs/minute, one line,
Paper size: 100×100 ~ 450x600mm,
Welding method: Water-glue adhesive,
Material: 200~600gsm carton cardboard paper,
Material thickness: Max. 1.5mm,
Total power: 5KW,
Electric power : 380V 3-Phase 50/60 Hz,
Size: 3600 x 1500 x 1700 mm,
Weight: 2200KG,
Need Air (pressure:0.6Mpa, Output:300~500 L/m),
Available to make machines and molds on user order,
Application: burger box, boat tray, take away box, friex box,

specification of 1600 double line

Model: 1600 5S , 5sets servo,
Speed: 40~180 pcs/minute, double line,
Paper size: Max. 450x400mm,
Weight: 2800KG,
Size: 3600 x 1850 x 1700 mm,

Octagon food box making machine Advantage

four servo drive, simple operate, less maintenance,
Double line 1600, double speed, two box ,
Servo feed paper, easy change mold, smoothly,
PLC+HMI with program control, intelligent,
Servo convey, stable and reliable,
Quality servo drive forming, directly, easy handle,
Making carton tray box container,

Box tray shape

One block paper box, 4-corner box without cover, Max. 200PCs / min,
Fries chips box tray: Max. 150PCs / min,
Burger box,hot-dog box : Max. 150PCs / min,

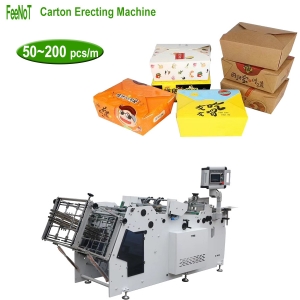

Food pail, DEEP take away to go box: Max. 100PCs / min,

Remark

Price Term: FOB Ningbo port, China. (INSURANCE OUT OF CHINA COVERED BY THE BUYER)
Payment Term: T/T payment (30% deposit, 70% before delivery). ** The buyer is welcomed to test machine before delivery.
Delivery Time: 30~50 working days at sight the deposit. (actual delivery time given while order confirm)
Package: Standard export package. (need special package, please info us in advance).
Warranty: One year from the equipment arrival.
Power Source: The power source: 380V 3-Phase, 50/60Hz (R, S, T, N line, please confirm power source before start order).

Guarantee and Service

Guarantee for one year from machine arrival.
We offer a 12 months warranty. During the warranty period, we provide free replacement of damaged parts due to quality problems (post charges covered by buyer). All failures/breaking caused by improper operation of the buyer and/or normal abrasion are not within the warranty.
Manual, Video, to help operate machine, Questions response within 48 hours (except holiday).
FREE: The buyer come to learn how to operate machine, how to adjust, how to change parts. It is free.(buyer should pay for his cost of ticket, hotel, food, etc).
The seller agrees to dispatch technician for installation & training, the cost covered by the buyer.
Technician overseas Cost include:
1, Mechanic allowance, (for example one machine training 5days, on the way 2days, total 7days, $150*7=$1050).
2, Ticket cost, round ticket cost (different country the cost different),
3, Visa cost, some country need visa cost,
