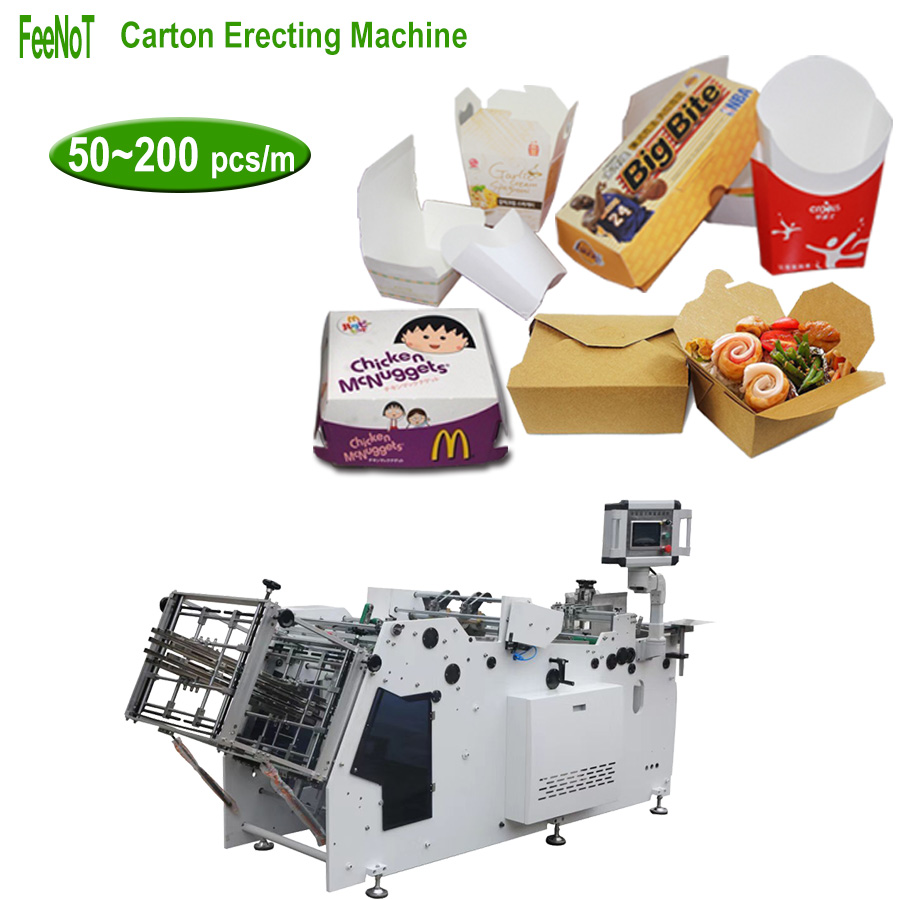

Carton erecting machine – disposable food box making machine

Full servo carton erecting machine – disposable food box making machine is an automatic machine, adopts full servo motors driven, speed 50~200pcs/min, make carton paper box container tray, easy operate, change mold to make different shape size.

Carton erecting machine – disposable food box making machine

Firstly, it is a fully automatic forming equipment, feed box die cut blank sheet, auto glue and adhesive, then forming the shape by mold press.

Latest update: adopt all servo motors replace old mechanism cam gear chain, which provide high efficient and stable performance, long life time;
and also servo motors system save exchange mold time.

Application: hamburger box, chips tray box, doner box, take away box, hot dog box, kraft food boat tray, and so on.

Specification of Carton erecting machine 800s

• Model: 800 4S,
• Speed: 50~200 pcs/minute, one line,
• Paper size: 100×100 ~ 450x600mm,
• Welding method: Water-glue adhesive,
• Material: 200~600gsm carton cardboard paper,
• Material thickness: Max. 1.5mm,
• Total power: 5KW,
• Electric power : 380V 3-Phase 50/60 Hz,
• Size: 3600 x 1500 x 1700 mm,
• Weight: 2200KG,
• Need Air (pressure:0.6Mpa, Output:300~500 L/m),
• Available to make machines and molds on user order,
• Application: burger box, boat tray, take away box, friex box,

specification of 1600 double line

• Model: 1600 5S , 5sets servo,
• Speed: 40~180 pcs/minute, double line,
• Paper size: Max. 450x400mm,
• Weight: 2800KG,
• Size: 3600 x 1850 x 1700 mm,

Advantage

• four servo drive, simple operate, less maintenance,
• Double line 1600, double speed, two box ,
• Servo feed paper, easy change mold, smoothly,
• PLC+HMI with program control, intelligent,
• Servo convey, stable and reliable,
• Quality servo drive forming, directly, easy handle,
• Making carton tray box container,

Box tray shape

• One block paper box, 4-corner box without cover, Max. 200pcs/min,
• Fries chips box tray: Max. 150pcs/min,
• Burger box,hot-dog box : Max. 150pcs/min,
• Food pail, DEEP take away to go box: Max. 100pcs/min,

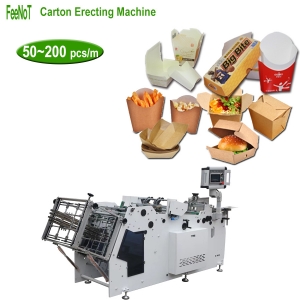

Carton erecting machine – disposable food box making machine
