Paper cup handle machine

Paper cup handle machine – Paper handle cup making machine, speed is 100 pcs/min, make 4~12oz hot coffee tea handle paper cups, two ultrasoic sealing, 10 divide open cam, stable & reliable, hot sale low price cost.

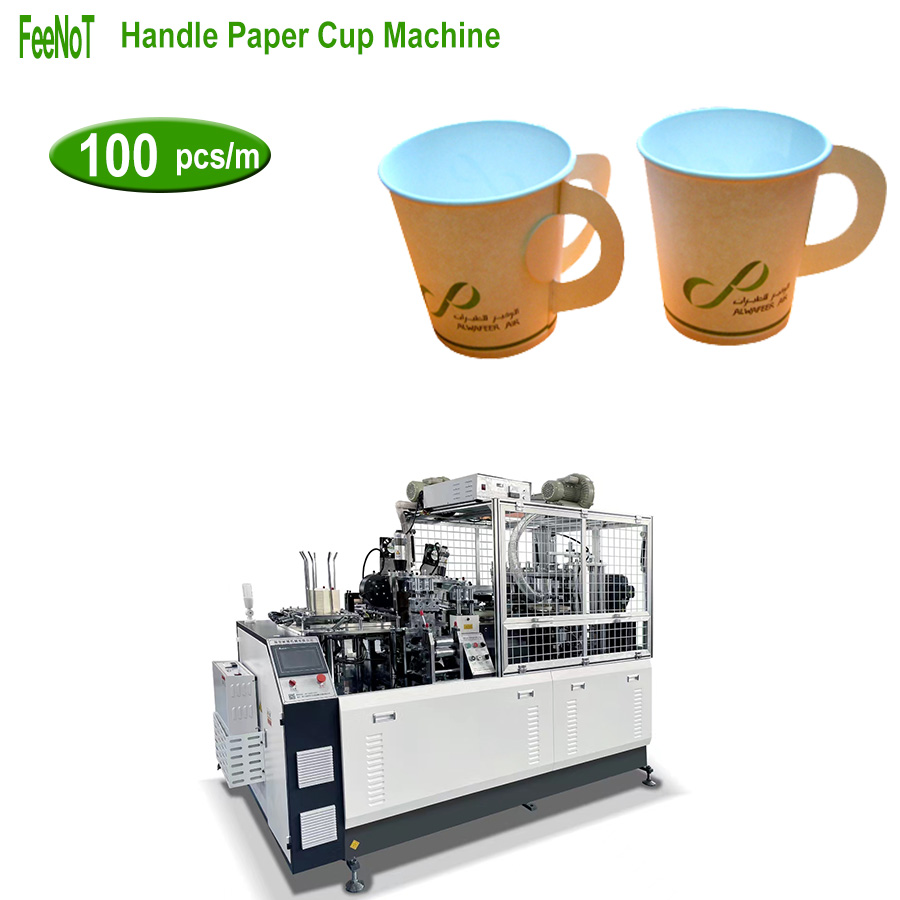

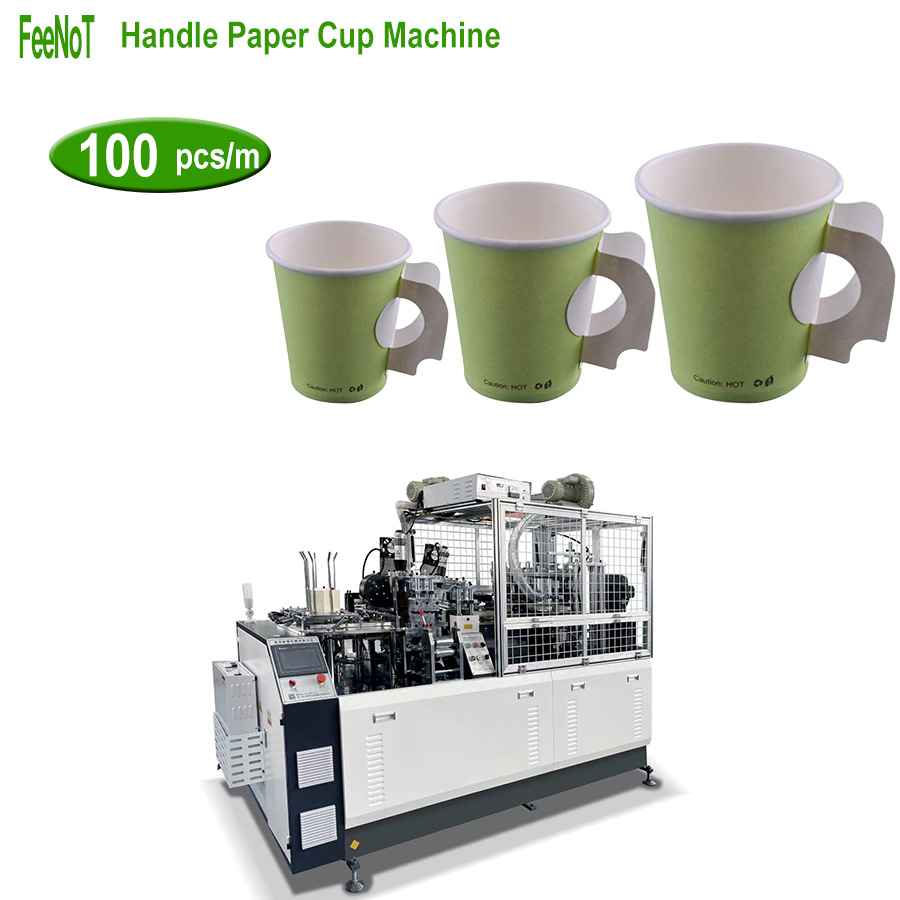

Info of Paper cup handle machine 100S

Firstly, it is improved on hot sale model 100s OC12, which speed is 100pcs/minute,

Handle paper cups are required by some customer who want to use handle hold hot water tea coffee cup, prevent hand hurt by the hot water.

While research the market, most of the handle paper cup machine speed is around 50, 70 pcs per minute, we choose the stable model 100s cup making machine, improved the speed to 100pcs per minute.

The functions as following: feed paper cup fan blank, feed roll paper for cup bottom, feed roll paper for cup handle, suck cup fan, punch cup handle disc, sealing handle with cup fan by ultrasonic, then cup wall sealing by ultrasonic, lift cup wall to main mold, bottom punch and insert, heating, knurling, cup top curling, discharge, count & pack.

While connect to the paper cup paking machine, make it full automatic, one packing machine online with 4, 6, paper cup bowl container machines.

Application: handle paper cup, paper cup with handle,and so on

specification of Paper cup handle machine 100S

• • Model: 100S HC12,
  • Speed : up to 100 pcs/minute,
  • Cup size: 4~12 oz,
  • Top: 45~100 mm,

• Bottom: 30~72 mm,
• Height: 30~115 mm,
• Material: 150~320 gsm 1PE & 2PE paper,
• Weight: 2600KG,
• Machine: 2450x1350x1900mm,
• Collector: 900 x 700 x 2100mm,
• Total power: 13KW (ceramic hot air),
• Power: 380V 3-Phase 50/60 Hz,
• 10pcs main mold (steel + aluminium alloy),
• 25mm Thick Whole steel board structure base,
• PLC, intelligent control, automatic oil system,
• Handle welding: Ultrasonic,
• Cup wall welding: Ultrasonic,
• Cup bottom heating: Ceramic hot air (2pcs 4.4KW),
• Need Air (pressure:0.3~0.5Mpa, Output:300~500 L/m),

Advantage

• 10pcs main mold (steel + aluminium alloy),
• 25mm Thick Whole steel board structure base,
• PLC, intelligent control, automatic oil system,
• Handle and cup fan welding: Ultrasonic, some other use heater, which is not stick stable,
• Cup wall welding: Ultrasonic,
• Cup bottom heating: Ceramic hot air (2pcs 4.4KW),
• stable 100 speed 10 divide tube cam machine.
