Cup lid making machine PL100 speed 90~100 pcs/min, making disposable carton paper lid cvoer for paper cup bowl, plastic glass, fully automatic, best quality low price cost.
Cup lid making machine PL100 – Paper lid machine info
Firstly, This machine is designed against the market requirement, makes one piece paper lid cover for cup bowl container, food package.
It is fully automatic machine with the functions:
Automatic roll paper feed, creasing (make the forming guide line), emboss (can make emboss, logo),
hole punch(make hole for straw), punching (punch the roll paper to lid open disc),
auto feed disc to mold, 加热, folding, knurling, and discharge,
with convey and counter for collection,
connect to packing machine, full automatic.
Carton paper lid cover machine hot sold all over the world, and have gained a good reputation for quality, and well received by the customer.
应用: paper carton lid cover cap for cup bowl container, chips, tubes pack, snacks pack, ice cream cover, cheese cover, a lot of package industry.
Specification of Cup lid making machine PL100 – Paper lid machine
| 模型 | PL-100
Roll Feed |
PL-140
Roll Feed |
PL-Sheet Feed
Customize |
PL-200
Customize model |
PL-100D
Dome Lid |
| 速度 : | 90~100 pcs/minute | 60~80 pcs/min | 50~80 pcs/min | 40〜60 PC/分钟 | 60~80 pcs/min |
| Lid Diameter: | 50~100 mm | 55~140 mm | 55~140 mm | 100~200mm | 55~100mm |
| Lid Height: | 8-15mm (Recommend 10~12mm), Stack lid 11.5mm | 10~17 mm | Max 22mm | ||
| 材料: | One & Two side PE/PLA/PBS coated paper, water based barrier paper (KOTKA non-plastic paper).
Recommend: PE film coating over 18gsm, Paper best over 0.42~0.44mm 300~320gsm. |
||||
| Paper Weight | 40~55 um (0.40~0.55mm, 280~400 gsm), best 300~320gsm | 320~350 gsm | Same as
PL-100 Model, some parts & molds change. |
||
| Total Power : | 15 KW; | 15 KW; | 18 KW | ||
| Power Source : | 380V 3相 50/60 赫兹 | ||||
| Total Weight : | 2100公斤 | 2400 公斤 | 2100 公斤 | 3000公斤 | |
| Machine Size(L*W*H) | 2600 x 1500 x 1800 | customize | |||
| Air Source : | Air Pressure: 0.4Mpa, Air output: 100~300L/minute; | ||||
| We Reserve the right to alter specifications without prior notice. | |||||
Advantage
- PLC+HMI+Servo, high speed, intelligent,
- one piece/layer paper lid, cost cheaper,
- feed roll paper, full automatic, less labor,
- auto creasing, emboss, make the guide line,
- logo engraved, replace print, save cost,
- center straw hole cut,
- side drink hole punch, coffee, cola, juice,
- auto heating, knurling, make lid,
- 10 divide tube barrel cam,
- 10 pcs main mold/tools,
- 2pcs hot air heating,
- auto count, convey,
- connect lid packing machine, full automatic,
Advantage of paper lid cover cap
- One piece paper lid, cost cheap,
- feed roll paper, full automatic, easy operation,
- Easy drink nozzle/hole cut, choose center hole X/O cut or not, make lid for cold & normal drink,
- Simple side drink hole punch, for coffee tea,
- Inside emboss knurling lock, with paper lock-design, prevent water spread out,
- ECO friendly, use paper material, all world plastic control or banned, will be great market,
- It is easy to print excellent artwork on paper lid,
- Amazing customize logo print, customize lid print, and excellent match the customize cups,
Shortage of paper lid cover cap
- Paper lid can not lock as tightly as plastic lid,
- Carton paper lid cover can not make emboss drink nozzle like plastic lid,
- Paper cover cap lid can not be re-used as plastic lid, one time use only,
- The paper lid will be slowly unfolded/open while water into the lid knurling part (some kind of paper),
- Recommend use 2PE paper for paper lid, because 1PE Paper lid will slowly unfold by hot steam ( steam out hole cut),
- Quality PE/PLA/PBS film coated paper make quality bio paper lid/cover, Recommend use 2PE paper to make paper lid
Picture:

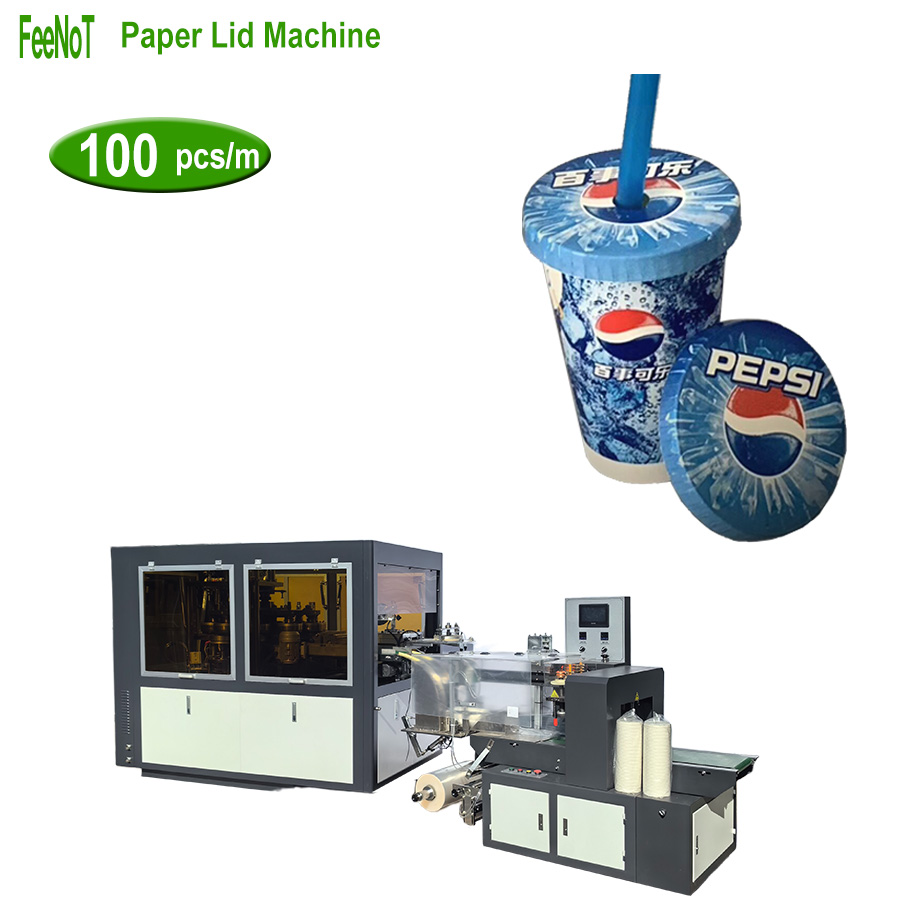

Cup lid making machine PL100 – Paper lid machine low price
