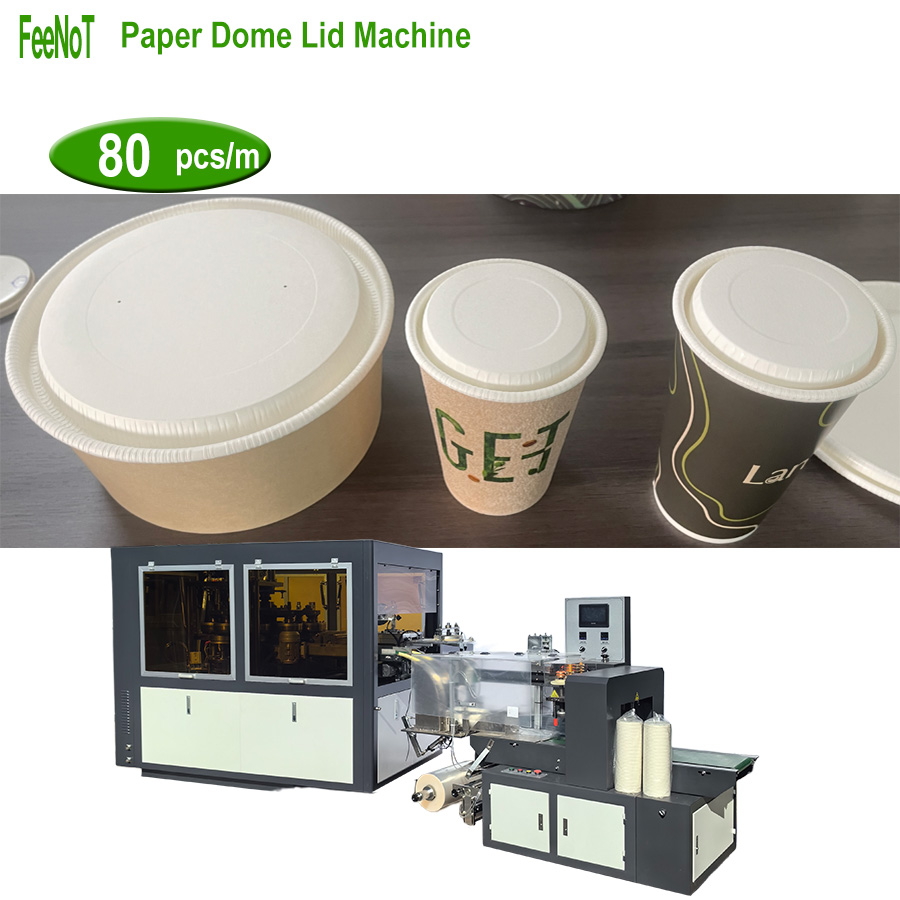

圆顶盖制造机100D

Dome lid making machine 100D speed 60~80 pcs/min, making dome paper lid cover for cup bowl container, best quality low price cost.

圆顶盖制造机100D – disposable cup lid machine info

首先, It is fully automatic machine with the functions:
Automatic roll paper feed, creasing (make the forming guide line),
emboss (can make emboss, logo), hole punch(make hole for straw),
punching (punch the roll paper to lid open disc),
auto feed disc to mold, 加热, folding, knurling, and discharge,
with convey and counter for collection,
connect to packing machine, 完全自动.

And, this machine is designed against the market requirement, amend on normal paper lid machine, forming deep high dome shape lid cover.

Carton paper lid cover machine hot sold all over the world, and have gained a good reputation for quality, and well received by the customer.

应用: paper carton lid cover cap for cup bowl container, chips, tubes pack, snacks pack, ice cream cover, cheese cover, a lot of package industry.

Specification of Dome lid making machine 100D

模型	PL-100 Roll Feed	PL-140 Roll Feed	PL-Sheet Feed Customize	PL-200 Customize model	PL-100D Dome Lid
速度 :	90~100 pcs/minute	60~80 PC/分钟	50~80 PC/分钟	40〜60 PC/分钟	60~80 pcs/min
Lid Diameter:	50~100 mm	55~140 mm	55~140 mm	100~200mm	55~100mm
Lid Height:	8-15毫米 (Recommend 10~12mm), Stack lid 11.5mm			10~17 mm	Max 22mm
材料:	One & Two side PE/PLA/PBS coated paper, water based barrier paper (KOTKA non-plastic paper). Recommend: PE film coating over 18gsm, Paper best over 0.42~0.44mm 300~320gsm.
Paper Weight	40~55 um (0.40~0.55mm, 280~400 gsm), best 300~320gsm			320~350 gsm	Same as PL-100 Model, some parts & molds change.
总功率 :	15 KW;	15 KW;		18 KW
电源 :	380V 3相 50/60 赫兹
总重量 :	2100公斤	2400 公斤	2100 公斤	3000公斤
Machine Size(lwh)	2600 x 1500 x 1800			customize
空源 :	气压: 0.4MPA, 空气输出: 100〜300L/分钟;
We Reserve the right to alter specifications without prior notice.

优势

PLC+HMI+Servo, high speed, 聪明的,
one piece/layer paper lid, cost cheaper,
feed roll paper, 完全自动, less labor,
auto creasing, emboss, make the guide line,
logo engraved, replace print, save cost,
center straw hole cut,
side drink hole punch, 咖啡, cola, juice,
auto heating, knurling, make lid,
10 divide tube barrel cam,
10 pcs main mold/tools,
2pcs hot air heating,
auto count, convey,
connect lid packing machine, 完全自动,

Advantage of paper lid cover cap

One piece paper lid, cost cheap,
feed roll paper, 完全自动, easy operation,
Easy drink nozzle/hole cut, choose center hole X/O cut or not, make lid for cold & normal drink,
Simple side drink hole punch, for coffee tea,
Inside emboss knurling lock, with paper lock-design, prevent water spread out,
ECO friendly, use paper material, all world plastic control or banned, will be great market,
Customize print beautiful artwork on paper lid more easy than plastic lid (especially print together with cup artwork, looks excellent),
Amazing customize logo print, customize lid print, and excellent match the customize cups,

Shortage of paper lid cover cap

Paper lid can not lock very tightly same as plastic lid,
Carton paper lid cover can not make emboss drink nozzle like plastic lid,
Paper cover cap lid can not be re-used as plastic lid, one time use only,
while water into the lid knurling part (some kind of paper), the paper lid will be slowly unfolded/open ,
1PE Paper lid will slowly unfold by hot steam (need steam out hole cut, and need 2PE/double PE paper for hot),
Quality PE/PLA/PBS film coated paper make quality paper lid/cover, Recommend use 2PE paper to make paper lid
