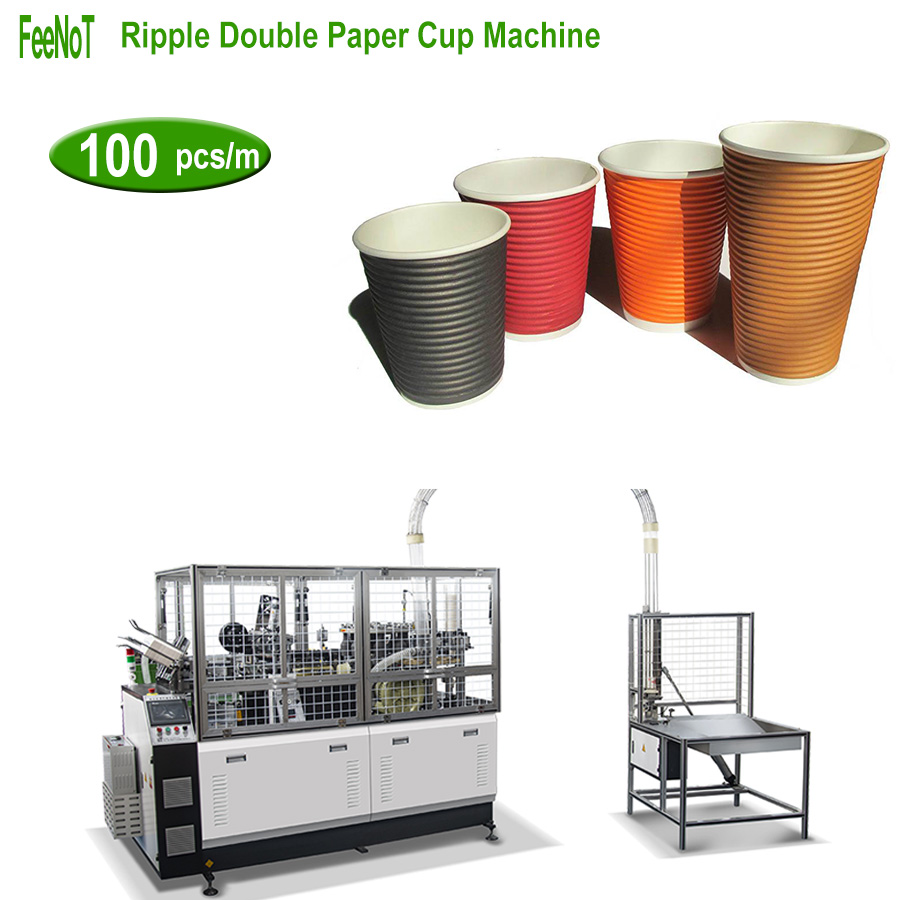

涟漪杯制造机器100 – paper

涟漪杯制造机器100 – paper, speed is 100 PC/分钟, making ripple double wall paper cups, 全自动, 稳定可靠, low price cost.

涟漪杯制造机器100 – paper

While paper cups hold hot water coffee tea, single layer paper cup is too hot to hold, to prevent hand scald by hot water, so make the double wall paper cups.

Double wall style: hollow paper cup sleeve, ripple paper cup sleeve.

Machine whole process as: wall sleeve fan feed and suck, hot melt glue spray (option), ultrasonic sealing (copper option ), lift wall to main mold, bottom fold, 努力, transfer to stick plate, spray a circle water glue (servo motor control, rotate a circle) inside the sleeve wall, suck cup down to sleeve, push the sleeve into cup rim space, 释放, count and collect.

Make ripple double wall paper cup sleeve jacket, require two machines together work.

首先, single wall cup making machine to make the inner paper cups.

Then feed the single wall cups to double wall cup sleeve machine to make the sleeve jacket.

应用: ripple wall paper cups, double wall paper cups, 波纹纸杯.

specification

• 模型: 100S DW16,
• 速度: 100 PC/分钟,
• 杯子大小: 4〜16盎司,
• 顶部: 45〜100毫米,
• 底部: 30~72 mm,
• 高度: 30〜135毫米,
• 材料: 150〜320GSM膜涂层纸, paper with glossy/varnish print,
• 重量: 2000公斤,
• 机器:2350x960x1700mm,
• 集电极: 900 x 700 x 2100mm (反对杯子大小 )
• 总功率: 6KW,
• 力量: 380V 3相 50/60 赫兹,
• 需要空气 (压力:0.3〜0.5MPA, 输出:300〜500 l/m),
• 应用: ripple double wall paper cups bowl container,

涟漪杯制造机器100 – paper cup jacket machine Advantage

• 8 divide open cam (some supplier use 6 divide) ,
• 8pcs Aluminium Alloy mold (some supplier 6 模具),
• quality chain to avoid position move,
• 25毫米厚的全钢板结构基地,
• plc + Sensors + Servo motor,聪明的, automatic oil system,
• Sleeve wall welding by ultrasonic,
• Auto bottom folded (hollow double wall cup sleeve),
• Circle spray water glue inside sleeve wall,
• Water glue stick the double wall sleeve and inner cup.
• Water Glue (polyvinyl acetate emulsion),
