Feenot paper cup lid making machine

High speed 6 corner paper box glue fold machine PHH-1100

  • Carton Box glueing folding machine
  • Speed: 20000~50000 pcs/hour
  • Make 4 corner box, 6 corner box,
  • bottom lock box, french fries box,
  • normal carton box, food box, medicine box,
  • Irregular box etc,
BASIC INFO

High speed 6 corner paper box glue fold machine PHH-1100 Video

Video in youtube

High speed 6 corner paper box glue fold machine PHH-1100 Picture

box glue fold machine,carton box gluing folding machine,paper box glueing folding machine

box glue fold machine,carton box gluing folding machine,paper box glueing folding machine

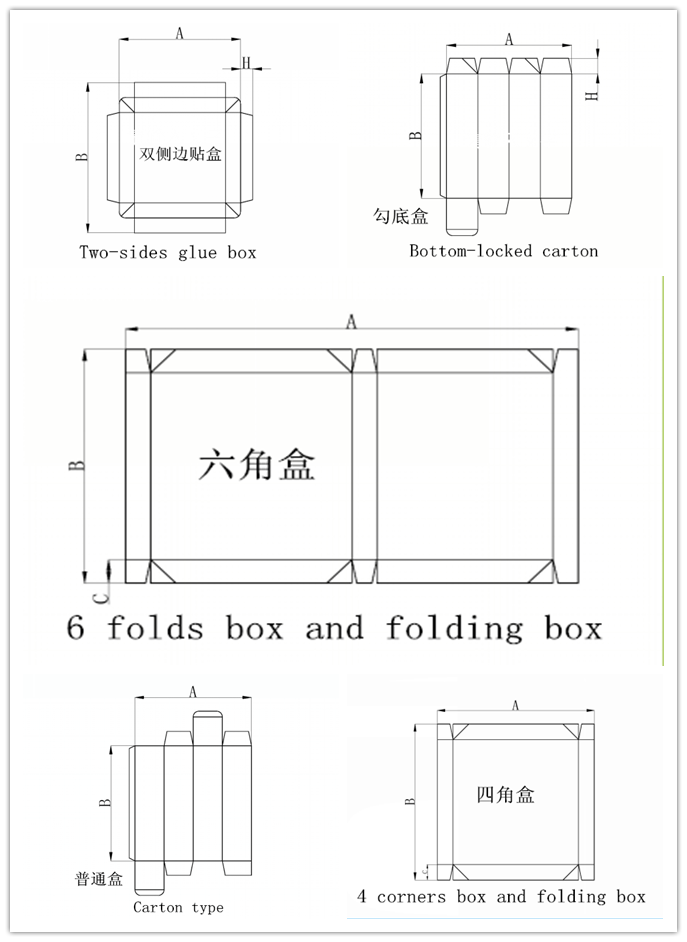

box what can be made

box what can be made



Brief Description: 功能概述

PHH series Box Gluing & Folding Machine is high speed box making machine, widely used for package box/cartons for food, medicine, health care products, cosmetics, alcohol, light industrial products such as the box, are basically using the gluer machine for paste box processing.

PHH box gluing and folding machine absorb the latest technology and experience at home and abroad, using modular design and the latest processing technology, electrical adopt PLC control, simple operation, the host motor frequency control speed, output controlled by servo motor, the whole structure is reliable.

This type machine focus on making 4-corner box, 6-corner box,  also for straight line box, hook(bottom lock) box, side glue box, box inside box, mini box, CD box, four corner box, six corner box, and other special (irregular) box.



在印刷包装行业中,糊盒机是重要的印后加工设备之一,是包装盒加工的最后一道工序,是将印刷好并模切成型的纸板折叠成型并粘好糊口的设备,随着我国印刷包装行业的快速发展,糊盒机的应用越来越广泛,像食品、医药、保健品、化妆品、酒类、轻工产品等的包装盒,基本上都是采用糊盒机进行糊盒加工。

PHH-1100糊盒机吸收国内外最新技术和经验,采用模块化设计和最新加工工艺,电气采用PLC控制和人机界面交流,操作简单,主机变频调速,出纸伺服电机控制,整机结构设计合理,适用于直线盒、勾底盒、边贴盒、盒中盒、迷你盒、CD盒、四角盒、六角盒及其他一些异型盒的高速生产。



Features Overview: 特点概述

  • 整机主要零部件、电气件、皮带、轴承等均采用高质量品牌产品,确保机器的质量与使用寿命。
    To ensure the machine quality and life time, Adopt high-quality brand Machine main parts, electrical parts, belts, bearings, etc.
  • 整机传动方式采用六角轴、多楔带传动,高效、静音,低维护成本
    Machine drive mechanism adopt hexagonal shaft, multi-ribbed belt drive, more stable and reliable, high efficient, quiet, low maintenance costs.
  • 给纸、主机、输送部均采用独立电机,变频调速,比例联动。
    Paper feed, the host motor, the transmission adopt separately motor, frequency control, the proportion of movement linkage.
  • 所有调试过程中多以一支六角扳手工具就能调试完成,减少更换工具的时间。
    A simple Hex Wrench can finish all adjustment while change box size, reduce the time to replace the tool, and more easy for adjustment.
  • 低墙板设计,方便操作。
    Low frame design, easy operation.
  • 机器传动轴均有不锈钢螺旋保护套保护,可以对操作者起到较好的保护作用。
    The moving shafts are covered by a stainless steel helical protection sleeve, which provides a good protection against the operator.
  • 整机模块化设计,用户可根据需求选择单边糊机型、两折勾底机型、四折勾底机型、四六角机型。
    All step adopt modular design, the user can choose machine according to the box requirement, unilateral (one side) box gluing machine, bottom lock box machine, twice fold & bottom hook(lock) box machine, four times fold & bottom hook (lock) box machine, 4-corner & 6-corner box gluing folding machine.

Specification: 技术参数

Model PHH-800 PHH-1100 PHH-1450
适用纸张

Paper Material:

Cardboard 200~800 gsm, corrugated board reach E-flute & B-flute.

卡纸200-800g/m²,瓦楞纸可达E、B坑

最大纸张尺寸(W*L)

Max Paper Size:

800*900 mm 1100*1000 mm 1450*1000 mm
最小纸张尺寸

Min Paper Size:

135*60 270*60 270*60
选购小盒折盒装置

最小尺寸

85*60 135*60 135*60
皮带最高速度

Max Belt Speed:

375m/minute 375m/minute 300m/min
电源电压

Power Source:

3-Phase  380V  50HZ
主电机功率

Total Power:

15KW  (4-times fold bottom lock box, 4 or 6-corner box, 四折勾底、四六角反勾)

11KW  (Twice fold bottom lock box, 两折勾底)

11KW  (twice fold one side glue box, 两折单边糊)

4-corner or 6-corner box,

4-times fold bottom lock box,

四折勾底、四六角反勾机

10Ton 10.5Ton 11Ton
Twice fold & bottom lock box,

两折勾底机

8.5Ton 9Ton 9.5Ton
twice fold one side glue box,

两折单边糊盒机

7.5Ton 8Ton 8.5Ton
