Double Wall Paper Cup Machine 150S Full Servo: Fast & Stable

Double Wall Paper Cup Machine 150S Full Servo, a fully automatic paper container forming equipment, make and wrap a second layer sleeve/jacket around inner single wall paper cups.

Production speed is up to 150 pcs/min, best quality full servo drive, stable, speed, smart.

Making anti scalding/hot insulation coffee tea ripple double wall paper cups.

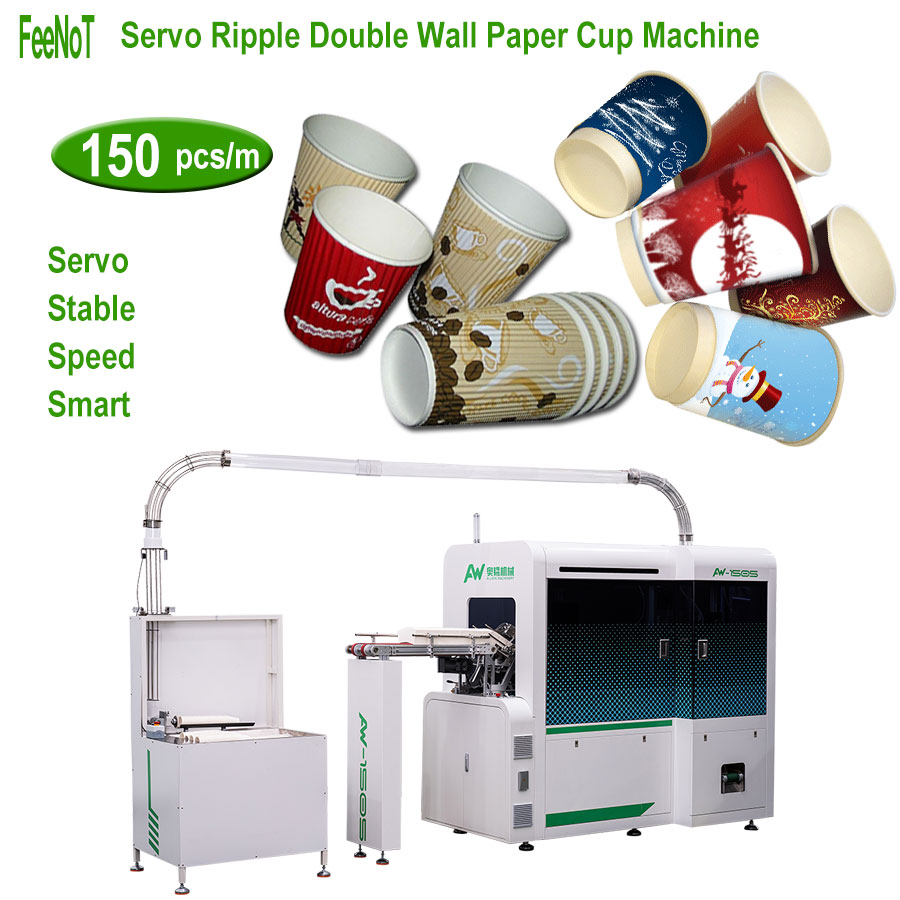

Double Wall Paper Cup Machine 150S Full Servo

While hot water coffee tea fill into single wall paper cups, they are too hot to hold by hand,

Because the heat will scald the hand finger, to anti-scalding, so should make a second wall around paper cups to provent hot.

Full servo ripple double wall paper cup sleeve machine, produce ripple wall paper cup, double wall paper cups against customer order size.

Double wall style: hollow paper cups, ripple/corrugated paper cups, embossed paper cups.

How to make ripple double wall paper cups?

To produce ripple double wall paper cups, require two machines working together,

• 1st, 150S servo paper cup machine, produce single wall paper cups, all servo driven, 150 pcs/minute.
• Add a mid-transfer system, collect and transfer single wall paper cups to double wall sleeve machine,
• 2nd, ripple double wall paper cup machine , seal the 2nd layer sleeve, and wrap the sleeve/jacket around single wall cups, all servo driven, 150 pcs/minute.
• 3rd, paper cup packing machine, produce 3-side bag, packaging paper cups into plastic / paper bags.

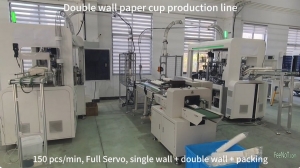

• Whole line, fully automatic, high speed, stable, intelligent.

Specification of Double Wall Paper Cup Machine 150S Full Servo

• Model: 150S DW16 Full servo,
• Speed: up to 150 pcs/minute,
• Cup size: 4~16oz,
• Top: 45~100 mm,
• Bottom: 30~72 mm,
• Height: 30~135 mm,
• Material: 150~320gsm film coated paper, paper with glossy/varnish print,
• Water glue stick the double wall sleeve and inner cup.
• Water Glue: (polyvinyl acetate emulsion),
• Option: Hot melt glue for side wall sealing, and so on.
• Weight: 3000KG,
• Machine:3200x1650x2100mm,
• Collector: 900 x 700 x 2100mm (against cup size )
• Total power: 30KW (working power 8KW),
• Power: 380V 3-Phase 50/60 Hz,
• Need Air (pressure:0.3~0.5Mpa, Output:300~500 L/m),
• Application: ripple double wall paper cups bowl container,

Ripple double wall paper cup machine production process:

• Feed double wall sleeve on the fan seender and entry,
• Auto suck the sleeve fan, feed to machine,
• Auto seal the sleeve wall side, Ultrasonic sealing (copper option ), (add Hot melt glue spray, option),
• Lift sleeve wall to main mold, bottom fold, knurling (hollow double wall cup sleeve),
• Drop and transfer sleeve wall to stick-plate,
• Spray a circle water glue (servo motor control, rotate a circle) inside the sleeve wall,
• Servo feed single wall cup into sleeve wall,
• Push the sleeve into single wall cup rim space,
• Discharge, count and collect.

Servos

• Oblique suck paper servo,
• Ultrasonic seal servo,
• Cup wall wing clamp servo,
• Cup fan & wall transfer servo,
• Cup wall flip servo,
• Cup wall lift servo,
• Knurling servo,
• 10 divide plate servo,
• 8 divide plate servo,
• Cup discharge servo,
• Glue spray servo,
• Cup separate servo,
