Video of Salad paper bowl container packing machine
Watch Salad paper bowl container packing machine operation demo video
More vidoe list on youtube: https://www.youtube.com/@Feenot/featured

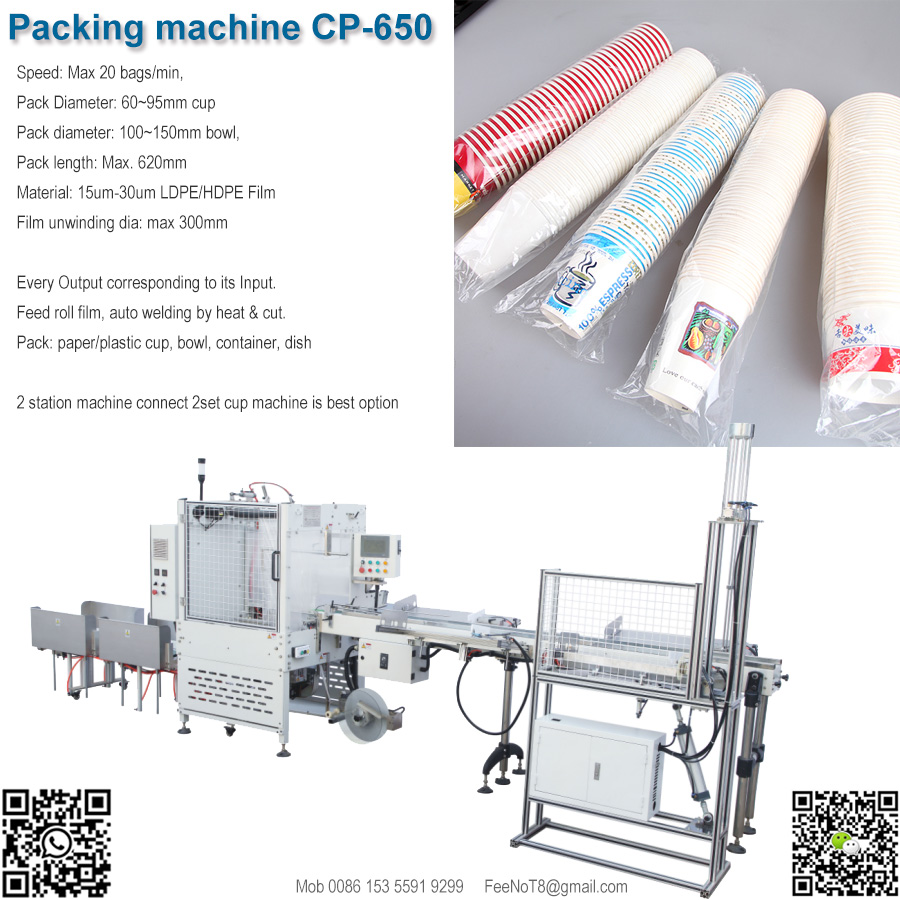

New tech Salad paper bowl container packing machine, speed 18 bags/minute, pack paper cup bowl container, auto heater sealing film bag, stable & reliable, easy operate.
It is a full automatic package machine, connect to paper cup machine, full line automatic, save labor worker and labor cost.
Of course, the connect parts for paper cup machine need to amend, to match the packing machine desk.
That is mean, the collect cage should be made against packing machine design, height, and also the direction of place the cup piles.
Machine covery auto transfer the cup pile to packing machine, auto film bag seal & cut, drop bag to convery, then bags output correspondingly.
Agains connect to how many paper cup machine, so the types are: 2 station packing machine and 4 station pack machine and 6 station packing machine.
2 station packing machine connect to 2sets paper cup machine; 4 station packing machine connect to 4sets paper cup machine; 6 station packing machine connect 6sets paper cup machine. Recommend 2 station packing machine.
Application: pack paper cup bowl container to film bag.
specification of Salad paper bowl container packing machine
- Model: FNT-750,
- Packing Diameter: 60~ 95 mm (cup), 100~ 150 mm (bowl),
- Speed: Max 18 bags/minute; Max 15 bags/minute (bowl),
- Film Unwinding diameter: Max 300mm,
- Max. Packing Length : 650mm (cup), 500mm (bowl) (against on order),
- Film Materials: HDPE, LDPE, PP, POF, PO, CPP,
- Packing Film Thickness: 15um~50um,
- Total power: .5 KW,
- Machine Weight: 700 KG (on order),
- Electrical Req: 380V±10% , 3-phase, 50Hz,
- Air Requirement: 0.6MPa, out put 300L/minute,
- Application: packing cup bowl container box plate solid items.
Advantage of Salad paper bowl container packing machine
- PLC+HMI, ingelligent, full automatic,
- All servo detect, control the machine auto working,
- There is print mark track sensor, make the bags printed in order.
- Film need double layer film, that mean center fold film,
- Auto hole punch to let the bag air out.
- Safety window/door keep the machine safe.
flow chart of pack machine working
- cup machine collector lay down the cup piles on pack machine desk,
- Sensor detect the cup piles, and auto feed the cup pile to convey,
- Convey transfer the cups to film bag,
- Machine auto seal and make film bag, and ope the mouth waiting for cups,
- After cups into film bag, machine seal & cut, drop bags to convey,
- Convey transfer the bags to pack station (box, carton).
