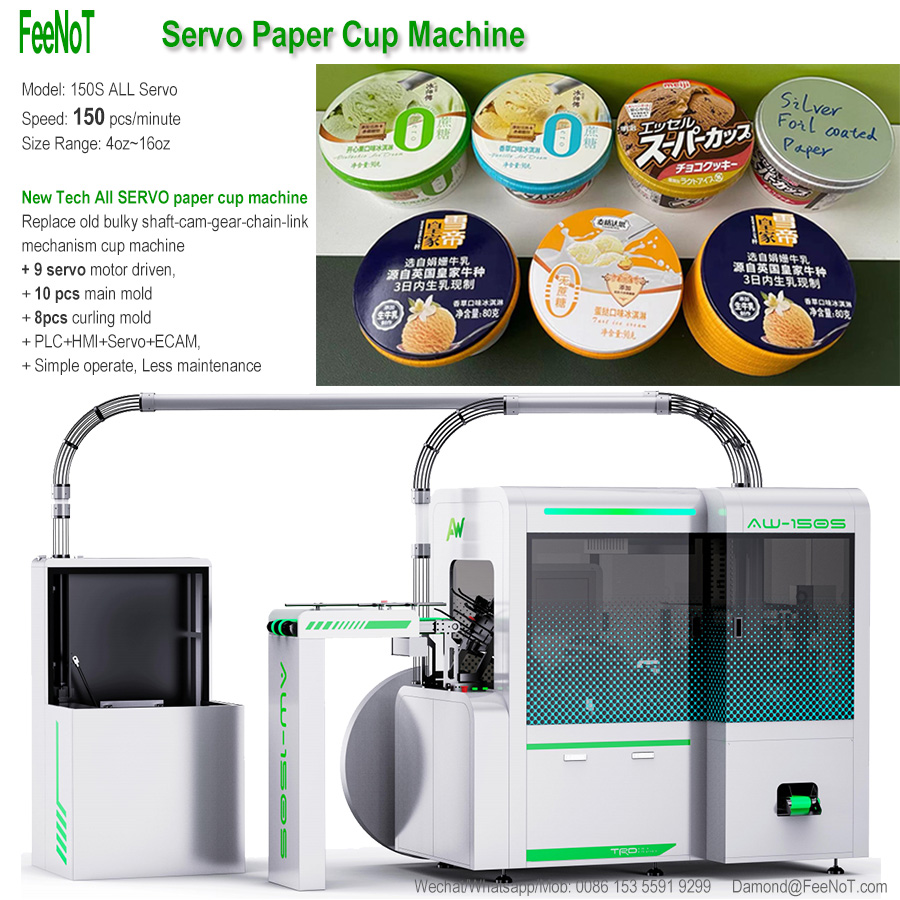

150s servo paper cup making machine new tech

  • 150s servo paper cup making machine
  • Price: US$40,000,
  • Speed: 150~160 pcs/minute,
  • Cup size: 4~16oz,
  • Height: 45~135 mm,
  • New tech servo replace old mechanism,
  • One servo control one part, less maintenance,
  • Quality servo high efficient, stable, reliable,
  • 10pcs main mold + 8pcs curling mold,
  • Application: hot cold coffee tea cola juice paper cup,
BASIC INFO Advantage Service Remark Price

Info & Video

Watch 150s servo paper cup making machine operation demo video

All servo paper cup bowl container making machine new tech

More vidoe list on youtube:

New tech 150s servo paper cup making machine speed 150 pcs/min, make 4~16oz hot cold drinks paper cup, all servo replace old cup machine mechanism, reliable.

Firstly adopt new tech all servo system instead of old bulky long shaft-cam-gear-chain mechanism system, which keep the machine easy maintenance.

Old cup machine very difficult to repair, maintenance, change parts, while any parts broken, require the user to move all the structure, which the user can not change or repair, even the supplier can not repair though send technician for repair.

New tech all servo paper cup machine, just only one servo control one movement function, easy maintenance, and easy find the problems by sight, simple operate.

It makes paper cup bowl container after the following process: cup fan sucker and feed, cup side wall sealing by ultrasonic, lift the cup wall to main mold, bottom disc punch & insert to cup wall, heating, bottom knurling, cup top rim curling, discharge & rejection, count and packing.

While connect to the paper cup paking machine, make it full automatic, one packing machine online with 4, 6, paper cup bowl container machines.

Widely application: hot drinks coffee tea paper cups, cold colo cola juice milk paper cups, ice cream paper cups, fries chips cups, so on food package solution.

Specification of 150s servo paper cup making machine

  • Model: 150S Servo,
  • Speed: 150 pcs/minute,
  • Cup size: 4~16oz,
  • Top: 45~100 mm,
  • Bottom: 38~70 mm,
  • Height: 45~135 mm,
  • Material: 150~320 gsm 1PE & 2PE paper,
  • Weight: 3400KG,
  • Machine:2500x1650x1900mm,
  • Collector: 1100 x 1100 x 2100mm (against cup size ),
  • Total power: 35KW, Working power 15KW,
  • Power: 380V 3-Phase 50/60 Hz,
  • Need Air (pressure:0.3~0.5Mpa, Output:300~500 L/m),
  • Application: hot drink coffee tea paper cup, cold drink cola juic paper cup,

150s servo paper cup making machine

Advantage of 150s servo paper cup making machine

  • Servo drive system instead of old complicated mechanism transmission,
  • Old bulky long shaft-cam-gear easy wear out, broken,
  • Servo+ECAM+PLC+HMI, efficient, intelligent, stable, reliable,
  • 9sets Servo motor system instead of cam-shaft-chain-gear-links, accuracy, stable, reliable, Simple operate, easy maintenance.
  • 10pcs main mold plate rotate Servo,
  • 8pcs cup curling mold rotate Servo,
  • paper cup fan feed drive Servo,
  • cup-fan blank suck and cup wall sealing assembly Servo,
  • paper cup wall turn Servo,
  • cup wall lift transfer Servo,
  • cup bottom roll feed Servo,
  • bottom punch Servo,
  • Cup bottom heating knurling up/down servo,
  • 10pcs quality ally cup mold, angle 36 degree,
  • 8pcs curling mold (twice curling), angle 45 degree, ,
  • 30mm Thick Whole steel board structure base, stable,
  • cup fan blank feeder 1 meter (high speed, feed more blanks one time)
  • Cup wall welding: Ultrasonic + ceramic hot air,
  • Bottom heating: Ceramic hot air (2pcs 4.4KW),

Service of 150s servo paper cup making machine

  • Spare parts guarantee for one year in machine arrival.
  • We offer a 12 months warranty. During the warranty period, we provide free replacement of damaged parts due to quality problems (post charges covered by buyer). All failures/breaking caused by improper operation of the buyer and/or normal abrasion are not within the warranty.
  • Manual, Video, to help operate machine, Questions response within 48 hours (except holiday).
  • FREE: The buyer come to learn how to operate machine, how to adjust, how to change parts. It is free.(buyer should pay for his cost of ticket, hotel, food, etc).
  • The seller agrees to dispatch technician for installation & training, the cost covered by the buyer.
  • Technician overseas Cost include:
  • 1, Mechanic allowance, (for example one machine training 5days, on the way 2days, total 7days, $150*7=$1050).
  • 2, Ticket cost, round ticket cost (different country the cost different),
  • 3, Visa cost, some country need visa cost,

Remark of 150s servo paper cup making machine

  • Payment Term: T/T payment (30% deposit, 70% before delivery). ** The buyer is welcomed to test machine before delivery.
  • Delivery Time: 30~50 working days at sight the deposit. (actual delivery time given while order confirm)
  • Package: Standard export package. (need special package, please info us in advance).
  • Warranty: One year from the equipment arrival.
  • Power Source: The power source: 380V 3-Phase, 50/60Hz (R, S, T, N line, please confirm power source before start order).

Price of 150s servo paper cup making machine
