Coffee paper cup lid machine PL-145 Video
Video list on youtube: Paper Lid Making Machine PL-145
Coffee paper cup lid machine PL-145 Picture

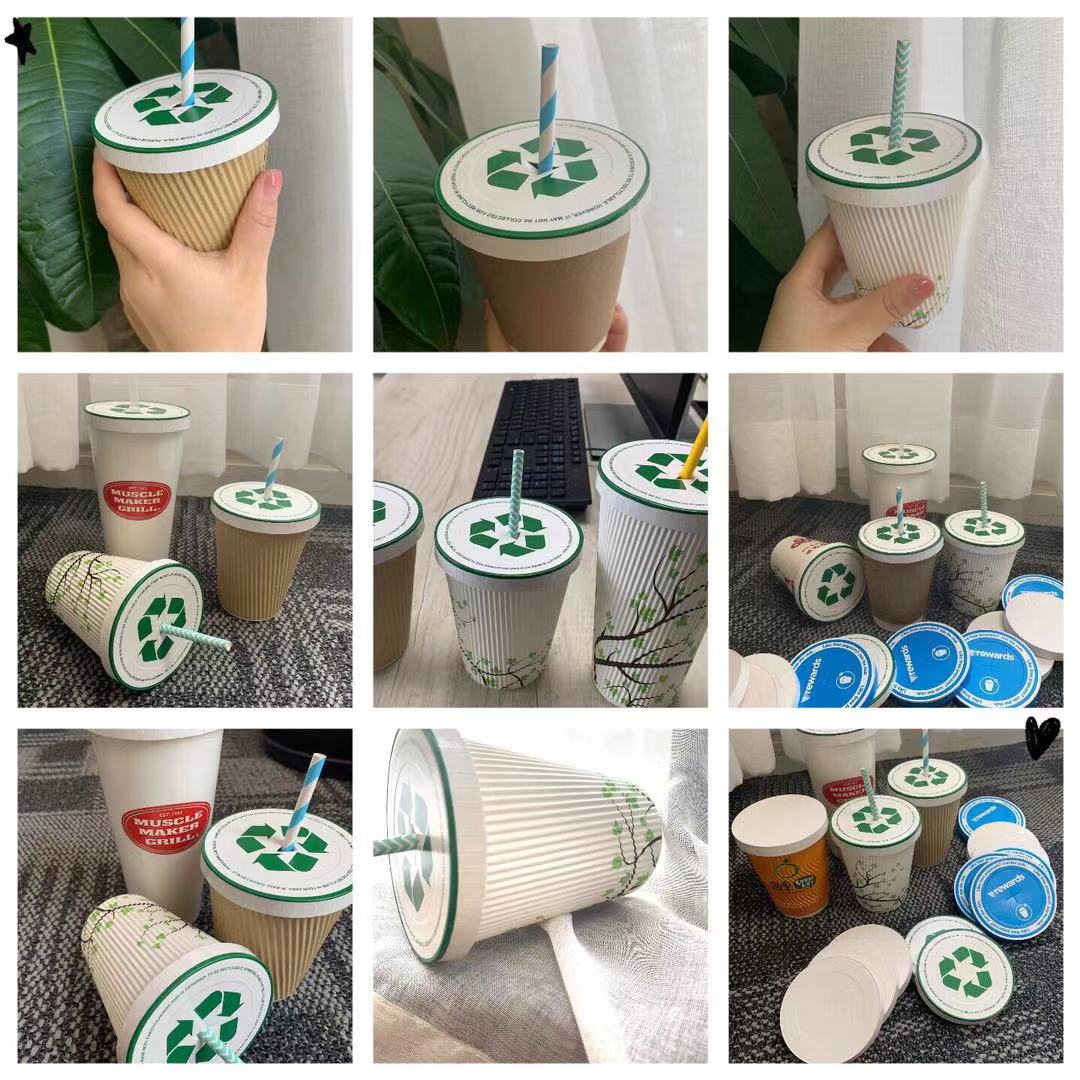

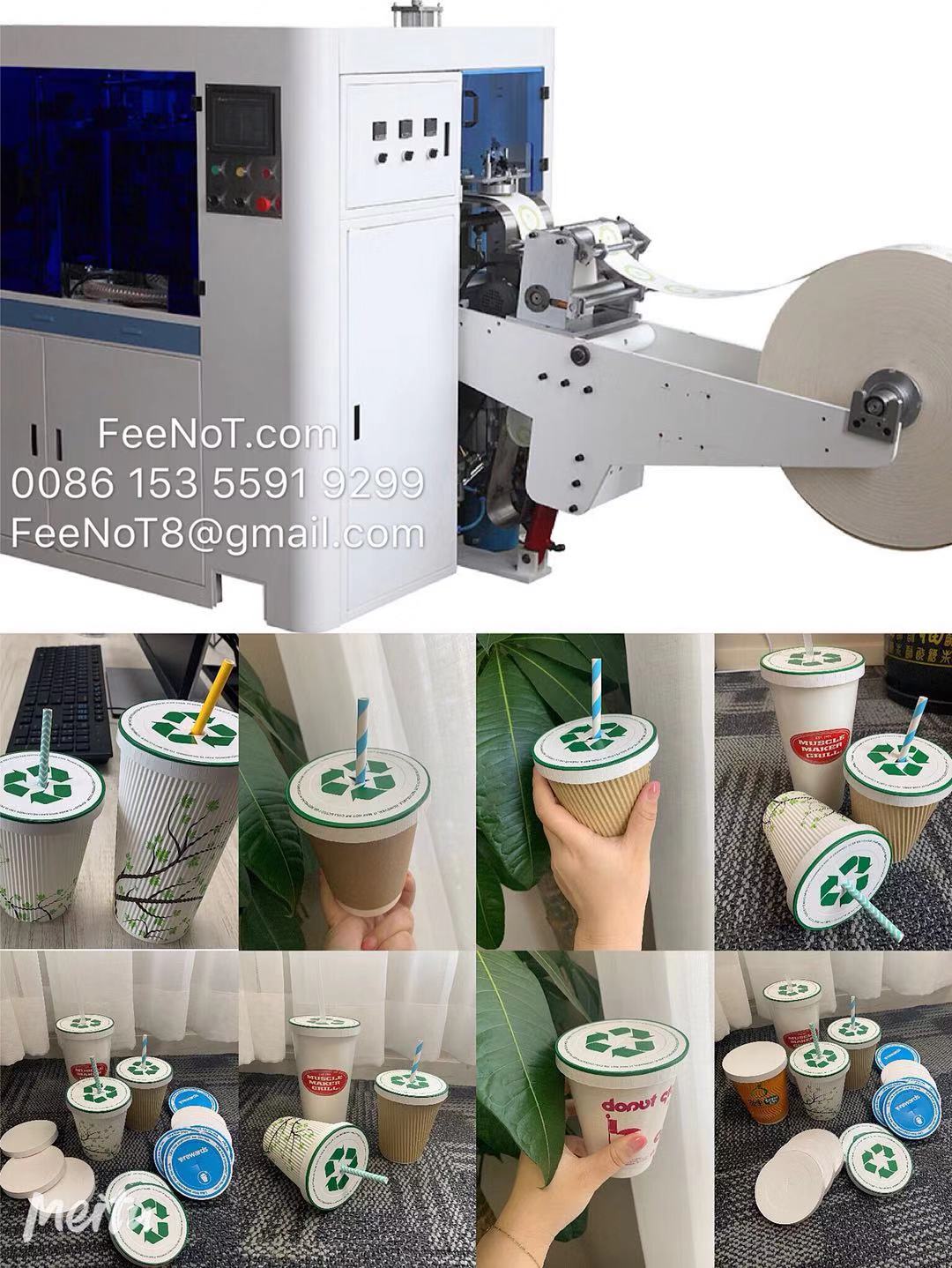

Paper Lid Making Machine PL-145, paper cover machine for cup bowl container glass
Coffee paper cup lid machine PL-145 Brief
- PL-145 paper lid machine is our patent machine, which make paper lid, paper cover.
- It’s an automatic machine with the functions:
- Automatic roll paper feed, creasing (make the forming guide line), emboss (can make emboss, logo), cross cut (make hole for straw), punching (punch the roll paper to lid open disc), auto feed disc to mold, heating, folding, knurling, and discharge,With convey and counter for collection.
Coffee paper cup lid machine PL-145 specification
- 1, Suitable paper: One & Two side PE coated paper, glossy coated paper.
- 2, Paper weight: 250~350 gsm
- 3, Lid size: Diameter 55~145 mm
- 4, Lid height: 8~15 mm
- 5, Speed: 70~100 pcs/minute
- 6, Power Source: AC380V 3-phase, 50Hz,
- 7, Total power: 10KW,
- 8, Weight: 2500KG
- 9, Machine size: 3000*1200*1650,
- 10, Air requirement: Consumption 0.3 cubic meter/minute, Pressure:0.4MPa,
主要技术参数：
- 适用纸张：单双淋膜纸、涂布淋膜纸、上光淋膜纸（250-350g/m2）。
- 成型尺寸：高度（8-15）mm，直径(φ55-φ145) mm。
- 成型速度：（70-100）个/分钟。
- 工作电压：AC380V/50HZ。
- 设备功率：10KW。
- 设备气源：耗气量0.3立方米/分钟，工作气压0.4MPa。
- 设备尺寸：长X宽X高 3000X1200X1650(mm)
- 设备总重：2500KG。
Coffee paper cup lid machine PL-145 Advantage
- Patent equipment, high speed.
- Feed roll paper,
- Auto creasing(guide line),
- Auto emboss (logo and shape on lid top, also make cross cut),
- Auto punching(cut roll paper to lid disc),
- Lid made by one paper disc, save cost.
- PLC control + servo motor feed paper
- Open cam + shaft + cam + gear control movement, stable and reliable.
Paper Lid Advantage:
- # One layer lid, cost cheap,
- # full automatic, easy operation,
- # can choose center cross cut or not, make lid for cold & normal drink,
- # with paper shape lock, little prevent water leak,
- # ECO friendly, use paper material, all world plastic control or banned, will be great market,
- # Easy print beautiful artwork on paper than plastic lid,
Paper Lid Shortage compare with Plastic lid:
- # Paper lid can not lock tightly like plastic lid,
- # Paper lid can not make drink nozzle like plastic lid,
- # Paper lid can not be reused as plastic lid, almost one time use,
