Coffee tea paper cup forming machine OC12 Video
All videos: https://www.youtube.com/user/TheCupmachine/playlists
Video in youtube: https://www.youtube.com/watch?v=UoEBaIxOcdw&list=PLjB-v2tkpOHcASOiHC7fFtoO8wTEzuOY3&index=1
Mob/Whatsapp/WeChat: +86 153 55919299
Email: feenot8@gmail.com
Hot sale paper cup making machine OC12
Coffee tea paper cup forming machine OC12 Brief info
# Speed: 70~80 pcs/minute,
# Cup Size: 2~16 oz
# Material: 150~350 gsm 1PE & 2PE paper
# PLC control, Open Cam + Shaft + Gear drive,
# Servo motor feed bottom,no bottom wastage.
# 11 sensors detect & fault alarm & stop,no wastage,
# Cup side welding: by Ultrasonic,
# Cup bottom heating: by Air compressor Hot-Air,
# Remote controller,
# Quality electric parts(famous brand), Auto oil system
# Working power: around 3.5KW
# Power Source: 380V 3-Phase 50/60 Hz
# Need Air (pressure:0.3~0.5Mpa, Output:0.5 CBM/m)

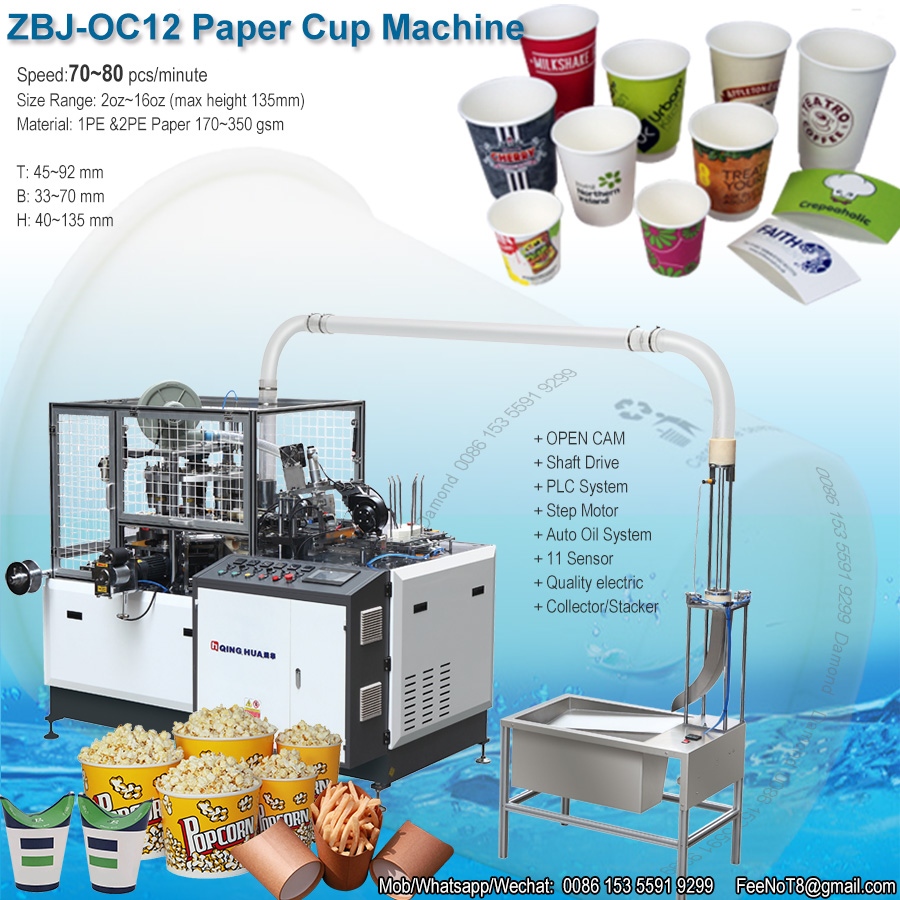

Coffee tea paper cup forming machine OC12 Picture
.
Coffee tea paper cup forming machine OC12 Technician

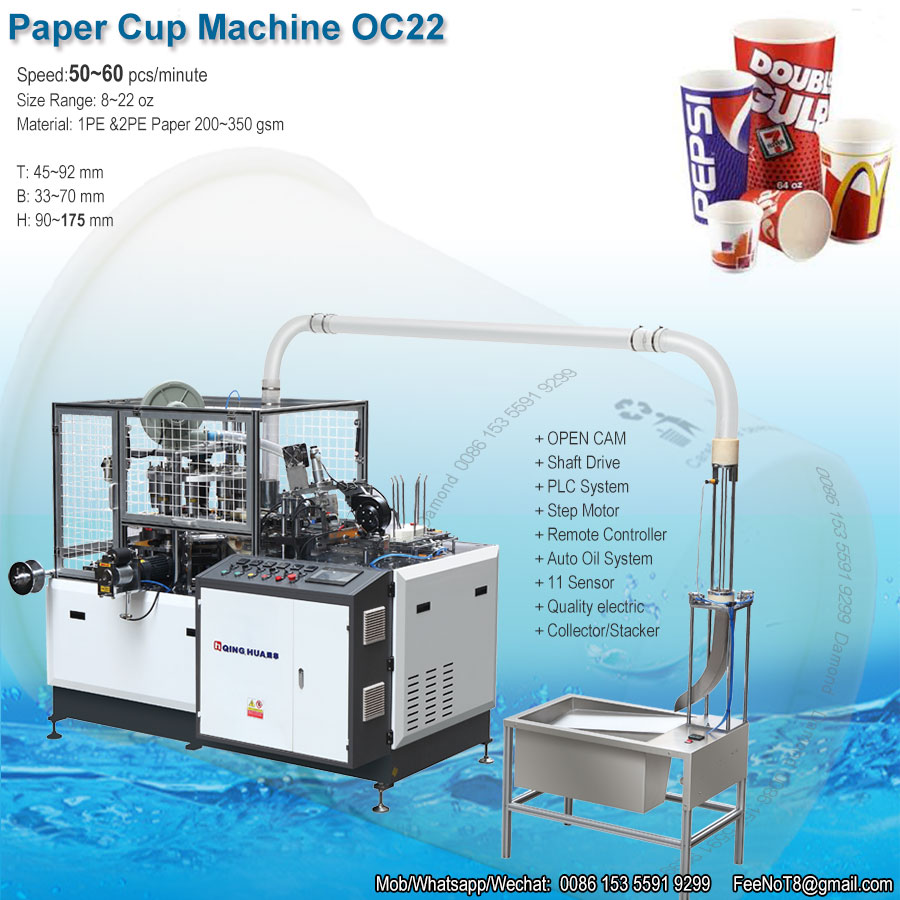

| Model | ZBJ-OC12 | ZBJ-OC22 | |
| Cup Size range: | 3 ~ 16 oz | 8~22oz | |
 |
T: 45~90 mm
B: 35~72 mm H: 40~135 mm |
T: 45~90 mm
B: 35~72 mm H: 40~170 mm |
|
| Speed: | 70 ~ 80 PCS/minute | 50~60 pcs/m | |
| Raw Material: | One-side or Two side PE/PLA/PBS coated paper | ||
| Suitable paper weight: | 160~350gsm | 220~350gsm | |
| Total Power: | 9KW | 15KW | 15KW |
| Working Power: | 3.5 KW | 13.5KW Ceramic Hot Air | 13.5KW Ceramic Hot Air |
| Total Weight: | GW/NW: 2600/2500KG | 2700/2600KG | |
| Pack Size (L*W*H) | 2.25×1.23*1.95 (2.4 x 1.4 x 2.1 pack size) | 2.25 * 1.34 * 1.95m | |
| Cup Side Welding: | Ultrasonic | ||
| Cup Bottom Heating: | Compressor Hot Air ( Ceramic Hot Air , extra cost) | ||
| Cup Bottom Knurling: | Heater Knurling (for single PE coated paper) | ||
| Cool Device (circle water), for double PE coated paper | |||
| Power Source: | 50Hz, (380V 3-phase, 50Hz), * if User power different? Please INFO US IN ADVANCE. | ||
| Working Air Source: | Air pressure:0.4Mpa; Air Out-put:0.6m³/minute (User should BUY Air Compressor) | ||
| We Reserve the right to alter specifications without prior notice. | |||
Coffee tea paper cup forming machine OC12 Other info
- Speed 70~80 cup/minute
- HMI & PLCProgram computer control, easy operate,
- 11 sensorsdetect all steps, any fault auto stop, one cup fan cut one bottom disc, no wastage.
- Servomotor control the bottom feed, precision and reliable, no wastage,
- Open Cam(8-divide) drive, compare with index gear box, easy maintenance, stable and reliable, easy replace broken parts.
- Remotecontroller, easy control and adjustment,
- Quality Shaft & gears drive the movement, more stable than chain system,
- Only ONE main turntable, more efficient and reliable.
- Self lubricate(automatic oil lubricate),
- Quality bearing and electronic element, long life,
- Robot straight lift the cup body to main mold.
- Bottom disk straight punched and send to the cup body, less wastage and precision.
- Separately cam control the bottom movement, machine smooth and light,
- Advanced bottom knurling system, reliable and long life,
- Cup side sealing ultrasonic (1PE & 2PE paper),
- Bottom hot air heating , good sealing,
- Working power less, save cost,
- With cup collector/stacker, One worker run 2~3 sets cup machine, save labour,
- Optimize the movement design, frame, parts, machine more light pressure, long life time.
ZBJ-OC12 Medium Speed Paper Cup Making Machine
| After Sales Service: | ||
| 1 | Warranty: We offer a 12 months warranty. During the warranty period, we provide free replacement of damaged parts due to quality problems (post charges covered by buyer).
All failures/broken caused by improper operation of the buyer and/or normal abrasion are not within the warranty. |
|
| 2 | Spare Parts: Each machine has its standard spare parts. | |
| 3 | Manual, Video, to help operate machine, Questions response within 48 hours (except holiday). | |
| 4 | FREE: The buyer come to learn how to operate machine, how to adjust, how to change parts. It is free.
(buyer should pay for his cost of ticket, hotel, food, etc). |
|
| 5 | The seller agrees to dispatch technician for installation & training, the cost covered by the buyer.
Technician cost includes: round tickets, accommodation (hotel, food), an allowance of USD100 a day. |
|
| 6 | Mechanic overseas Cost include:
1, Mechanic allowance, (for example one machine training 5days, on the way 2days, total 7days, $100*7=$700) 2, Ticket cost, round ticket cost (different country the cost different), 3, Visa cost, some country need visa cost, |
|
20 Feet container load 4sets OC12,
40 Feet container load 8sets OC12
