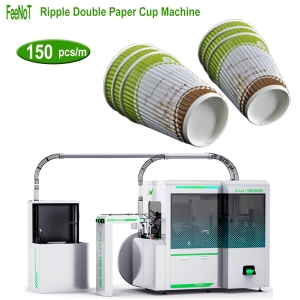

Double wall paper cup machine – coffee ripple sleeve jacket

Double wall paper cup machine – ripple coffee cup machine, speed is up to 150 pcs/min, make & wrap a jacket sleeve around inner single wall paper cups, making anti scalding coffee cup, hot insulation paper cups.

Double wall paper cup machine 150s info:

While hot water coffee tea into single wall paper cups, too hot to hold by hand, the heat will scald the hand finger, to anti-scalding, make a second wall around paper cups to provent hot.

Double wall style: hollow paper cups, ripple/corrugated paper cups, emboss paper cups.

The double wall paper cup production process is list below:

• Feed double wall sleeve on the fan seender and entry,
• Auto suck the sleeve fan, feed to machine,
• Auto seal the sleeve wall side, Ultrasonic sealing (copper option ), (add Hot melt glue spray, option),
• Lift sleeve wall to main mold, bottom fold, knurling (hollow double wall cup sleeve),
• Drop and transfer sleeve wall to stick-plate,
• Spray a circle water glue (servo motor control, rotate a circle) inside the sleeve wall,
• Servo feed single wall cup into sleeve wall,
• Push the sleeve into single wall cup rim space,
• Discharge, count and collect.

Specification of Double wall paper cup machine 150s

• Model: 150S DW16,
• Speed: up to 150 pcs/minute,
• Cup size: 4~16oz,
• Top: 45~100 mm,
• Bottom: 30~72 mm,
• Height: 30~135 mm,
• Material: 150~320gsm film coated paper, paper with glossy/varnish print,
• Water glue stick the double wall sleeve and inner cup.
• Water Glue: (polyvinyl acetate emulsion),
• Option: Hot melt glue for side wall sealing, and so on.
• Weight: 3000KG,
• Machine:3200x1650x2100mm,
• Collector: 900 x 700 x 2100mm (against cup size )
• Total power: 30KW (working power 8KW),
• Power: 380V 3-Phase 50/60 Hz,
• Need Air (pressure:0.3~0.5Mpa, Output:300~500 L/m),
• Application: ripple double wall paper cups bowl container,

Advantage list:

• Newest, state of the art, servo drive system,
• Entirely servo-driven, servo motors drives all the process separately.
• Servo drives work independently to control each station with remarkable accuracy and work together to coordinate the synchronized motion.
• The servo motor system replace old complex mechanism transmission, Old bulky long shaft-cam-gear easy wear out, broken,
• Servo+ECAM+PLC+HMI, efficient, intelligent, stable, reliable,
• Features: improved ergonomics, increased efficiencies, ensured stability and reliablity.
• 10pcs quality ally cup mold, angle 36 degree,
• 8 index plate, stick sleeve, angle 45 degree,
• 38mm Thick Whole steel board structure base, stable & reliable,
• Sleeve wall blank feeder 1 meter (high speed, feed more blanks one time)
• Sleeve wall welding by ultrasonic (+ hot melt option),

How to make ripple double wall paper cups?

To produce ripple double wall paper cups, require two machines working together,

• 1st, 150S servo paper cup machine, produce single wall paper cups, all servo driven, 150 pcs/minute.
• Add a mid-transfer system, collect and transfer single wall paper cups to double wall sleeve machine,
• 2nd, ripple double wall paper cup machine , seal the 2nd layer sleeve, and wrap the sleeve/jacket around single wall cups, all servo driven, 150 pcs/minute.

Picture:

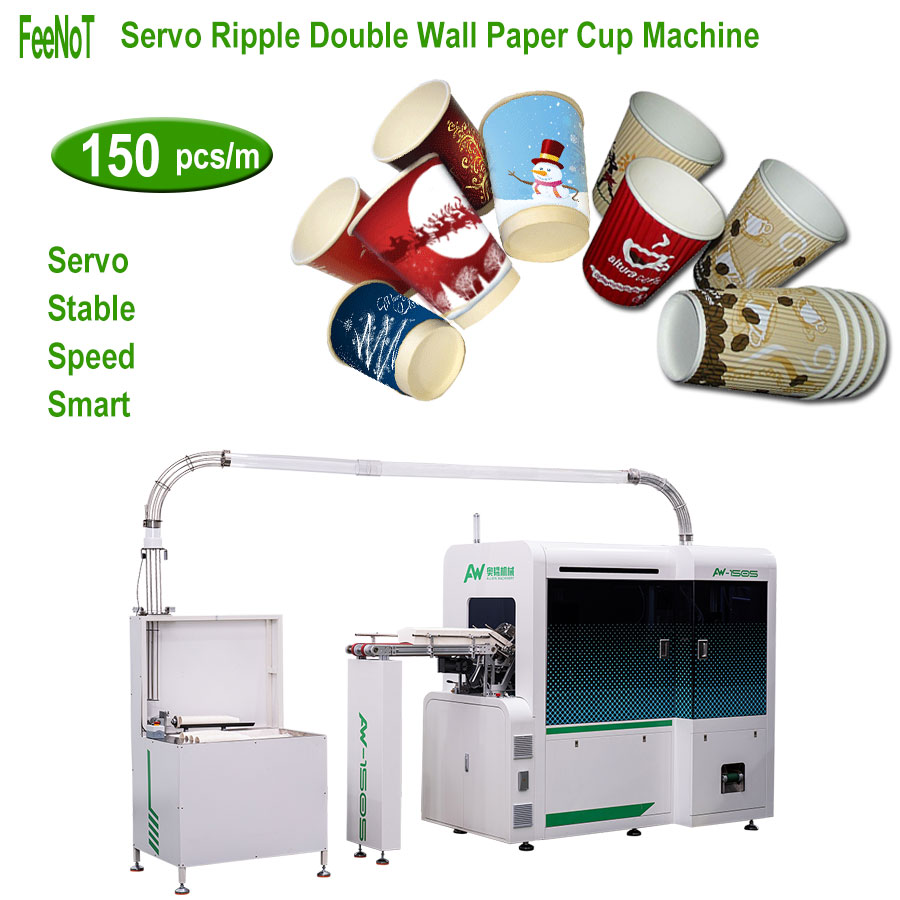

Double wall paper cup machine 150s
