Paper Cup Machine ZBJ-OC12 Medium Speed

  • Paper Cup Machine Medium Speed
  • Model: ZBJ-OC12
  • Stable Speed: 70~80 pcs/m,
  • Size: 40ml~16oz Max height 135mm,
  • 1PE & 2PE hot & cold paper cups
BASIC INFO Remark After sales

ZBJ-OC12 Medium Speed Paper Cup Making Machine Video

Video in youtube: ZBJ-OC12 Medium Speed Paper Cup Mkaing Machine Video

Mob/Whatsapp/WeChat: +86 153 55919299
Email: feenot8@gmail.com

ZBJ-OC12 Medium Speed Paper Cup Making Machine Brief

# Speed: 70~90 pcs/minute,
# Cup Size: 2~16 oz
# Material: 150~350 gsm 1PE & 2PE paper
# PLC control, Open Cam + Shaft + Gear drive,
# Servo motor feed bottom,no bottom wastage.
# 11 sensors detect & fault alarm & stop,no wastage,
# Cup side welding: by Ultrasonic,
# Cup bottom heating: by Air compressor Hot-Air,
# Remote controller,
# Quality electric parts(famous brand), Auto oil system
# Working power: around 3.5KW
# Power Source: 380V 3-Phase 50/60 Hz
# Need Air (pressure:0.3~0.5Mpa, Output:0.5 CBM/m)

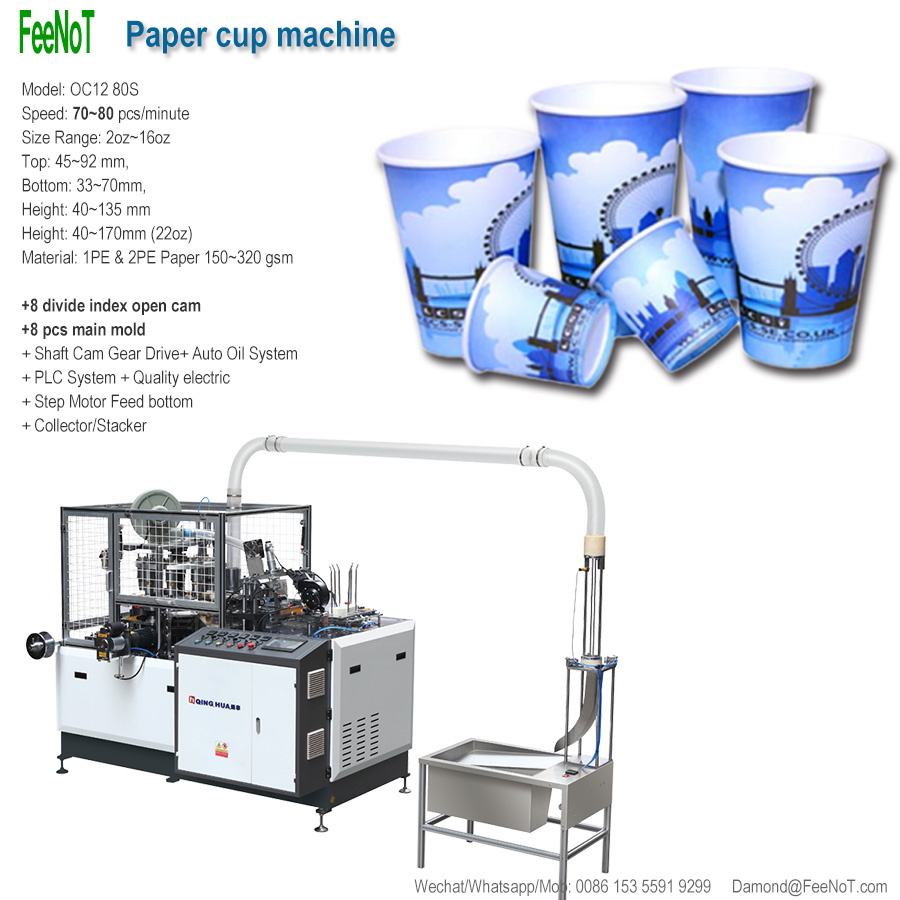

ZBJ-OC12 Medium Speed Paper Cup Making Machine Picture

medium speed paper cup making machine ZBJ-OC12

medium speed paper cup making machine ZBJ-OC12

ZBJ-OC12 Medium Speed Paper Cup Making Machine Technician

Model ZBJ-OC12 Heater ZBJ-OC12 Ultrasonic ZBJ-OC22 Ultrasonic
Paper Cup Size: 40ml ~ 300ml 3 ~ 16 oz  8~22oz
Cup dimensions Top: 45~90 mm

Bottom: 35~72 mm

Height: 40~135 mm

Height: 40~180 mm



Top: 45~90 mm

Bottom: 35~72 mm

Speed: 70 ~ 90 PCS/minute (stable 70~80 pcs)

Speed affected by cup size, paper quality & thickness

50~60 pcs/m
Raw Material: One side PE One-side or Two side PE coated paper 1PE & 2PE
Suitable paper weight: 140~250gsm 180~350gsm
Power Source: 50Hz, (380V 3-phase, 50Hz), (Better use 380V 3-phase)

* if User power different? Please INFO US IN ADVANCE.

Total Power: 8KW 9KW 15KW
Working Power: 3.5 KW 4 KW (compressor hot air) 13.5KW  Ceramic Hot Air(option)
Total Weight: GW/NW: 2600/2500KG 2800KG
Pack Size (L*W*H) 2250 x 1340 x 1950 mm 2.25 * 1.34 * 1.95m
Working Air Source: Air pressure:0.4Mpa;  Air Out-put:0.6m³/minute  (User should BUY Air Compressor)
Cup Side Welding: Pre-heating + Heater Ultrasonic
Cup Bottom Heating: Heater (40ml~100ml) Hot Air (heater) Or Ceramic Hot Air(extra option)
Cup Bottom Knurling: Heater Heater Knurling (if use single PE coated paper)
Cool Device (circle water), for double PE coated paper
We Reserve the right to alter specifications without prior notice.

ZBJ-OC12 Medium Speed Paper Cup Making Machine Other info

  • Speed 70~90 cup/minute
  • HMI & PLCProgram computer control, easy operate,
  • 11 sensorsdetect all steps, any fault auto stop, one cup fan cut one bottom disc, no wastage.
  • Servomotor control the bottom feed, precision and reliable, no wastage,
  • Open Cam(8-divide) drive, compare with index gear box, easy maintenance, stable and reliable, easy replace broken parts.
  • Remotecontroller, easy control and adjustment,
  • Quality Shaft & gears drive the movement, more stable than chain system,
  • Only ONE main turntable, more efficient and reliable.
  • Self lubricate(automatic oil lubricate),
  • Quality bearing and electronic element, long life,
  • Robot straight lift the cup body to main mold.
  • Bottom disk straight punched and send to the cup body, less wastage and precision.
  • Separately cam control the bottom movement, machine smooth and light,
  • Advanced bottom knurling system, reliable and long life,
  • Cup side sealing ultrasonic (1PE & 2PE paper),
  • Bottom hot air heating , good sealing,
  • Working power less, save cost,
  • With cup collector/stacker, One worker run 2~3 sets cup machine, save labour,
  • Optimize the movement design, frame, parts, machine more light pressure, long life time.

ZBJ-OC12 Medium Speed Paper Cup Making Machine



Price Item: FOB Ningbo port, China.
PaymentItem: Option 1, T/T payment (30% deposit, 70% before delivery).Option 2, Irrevocable L/C at sight (By L/C, Extra $1000 bank charge per shipment).

**** The buyer is welcomed to test machine before delivery.

Delivery Time: 30~60 days at sight the deposit. (actual delivery time given while order confirm)
Package: Standard export package. (need special package, please info us in advance).
Electric Power Source: The electric power source for this machine adopt 380V 3-phase 50Hz.If the buyer’s power source different, should declare in advance.
1 We offer a 12 months warranty. During the warranty period, we provide free replacement of damaged parts due to quality problems (post charges covered by buyer). All failures/breaking caused by improper operation of the buyer and/or normal abrasion are not within the warranty.
2 Spare Parts: Each machine has its standard spare parts (see list).
3 Manual, Video, to help operate machine, Questions response within 48 hours (except holiday).
4 The buyer come to learn how to operate machine, how to adjust, how to change parts. It is free.

(buyer should pay for his cost of ticket, hotel, food, etc).

5 The seller agrees to dispatch technician for installation & training, the cost covered by the buyer.

Technician cost includes: round tickets, accommodation (hotel, food), an allowance of USD100 a day.
