BASIC INFO
Video of Coffee tea paper cup machine GH990
Video of Coffee tea paper cup machine GH990
Working video playlist on youtube
Video on youtube above link
Picture of Coffee tea paper cup machine GH990
Picture of Coffee tea paper cup machine GH990

Character of Coffee tea paper cup machine GH990
- Coffee tea paper cup machine GH990
- 90 ~110pcs/minute (Bowl), (speed affect by cup size and paper quality)
- Raw material: 190~350gsm Coated paper, Single (double ) PE coated paper, (heavy paper, quality cups)
- Material: PE/PLA/PBS film coated paper,
- Tube barrel cam + shaft + gear drive,

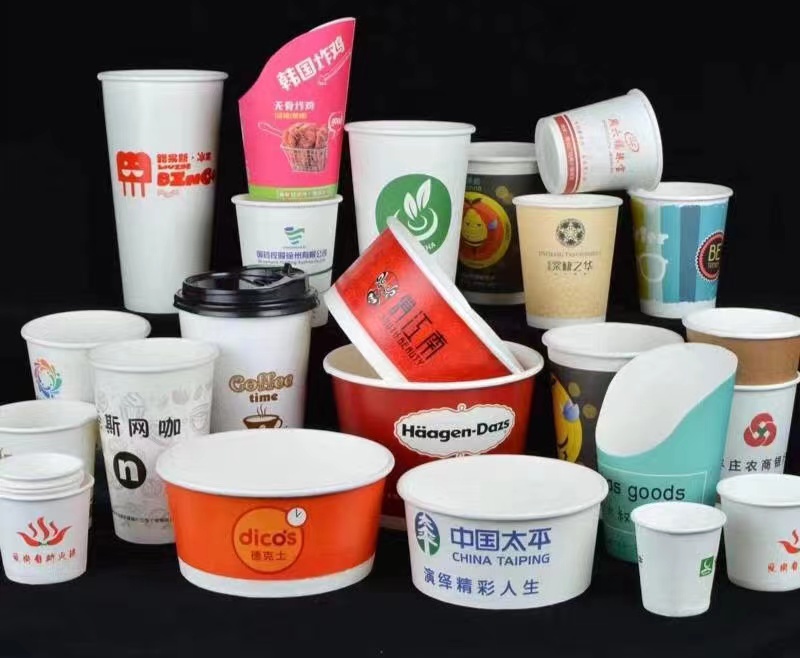

- Usage: paper cup bowl container
- Manufacturer factory price :
- Speed: 120~150pcs/minute (Cup) (72000~9000 pcs/hour);
- Power Source: 380V, 3-phase, 50Hz
- Working Power: 8 KW (against the cup size, paper thickness) (total power 21KW)
- Need Air: 0.5~0.8Mpa, 0.4 cubic meter per minute,
- Machine size : 2.85. x 1.68. x 1.9 (only machine size)
- Pack Size (wooden case): 3.4 x 1.76 x 2.13 + 1.35 x 1.04 x 1.94 ( collector against cup size )
- Weight: (wooden case): 4700 KG (with wooden case and collector around 5000KG)
- Cup wall welding: 2pcs ceramic hot air pre-heating + ultrasonic welding
- Bottom heating: 2pcs ceramic hot air heating (main heating)
- ,
Description of Coffee tea paper cup machine GH990
- high speed Coffee tea paper cup machine GH990 improved for quality cups,
- Functions: Cup fan stocks >> side pre-heating (up/down hot air) >> Side welding >> cup cone forming >> bottom paper disc auto punched to mold >> insert the cone to cup main mold >> bottom heating 1 >> bottom heating 2 >> bottom lubricate > > bottom pre-folding >> Bottom knurling >> Top rim silicone lubrication >> rim first curling >> rim second curling >> (Option, camera detect, rejection ) >> count & collect.
Advantage of Coffee tea paper cup machine GH990
- Quality tube barrel cam + gear control,
- Full cover, clean for oil part mechanism system,
- 4pcs ceramic hot air for heating,
- Twice top curling, make cup top strong,
- Contact us for more details
