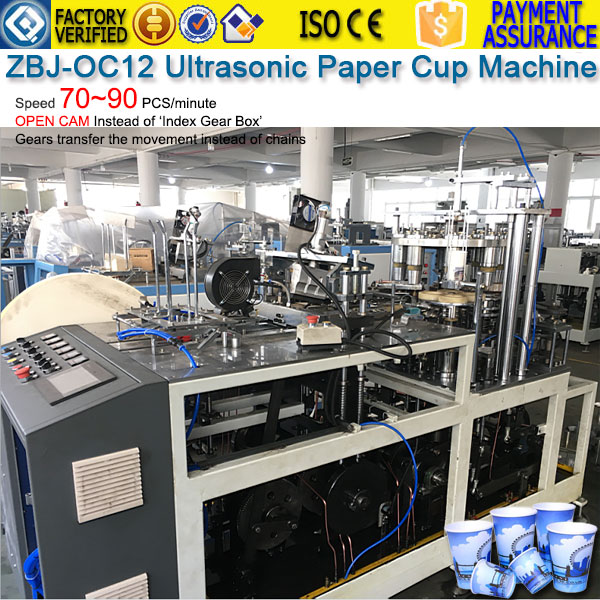

Open Cam Paper Cup Making Machine ZBJ-OC12

  • ZBJ-OC12 Open Cam Paper Cup Machine
  • Price: $17000,
  • Speed: 70~90 pcs/minute,
  • Material: 150~350 gsm PE film coated paper,
  • Cup size: 3~16oz,
  • Open Cam control the dividing,
  • Gears control the movement.

ZBJ-OC12 Paper Cup Making Machine Video:

Paper cup making machine video, coffee paper cup machine, tea paper cup machine, ice cream paper cup machine,
soup paper cup machine, noodle paper box machine.

ZBJ-OC12 Paper Cup Making Machine Description:

ZBJ-OC12 Open Cam Paper Cup Machine improved on our hot sale ZBJ-X12 model machine,

Absorb the High speed machine and medium speed machine advantage, more reliable and durable, competitive price.

Main improved:

  • Adopt Open Cam (8-divide) for the dividing moving, compare with index gear box, easy maintenance, stable and reliable, easy replace broken parts.
  • Main mechanism and movement control by quality gears, which is more efficient than chain and axis.
  • Only ONE main turntable, more efficient and reliable.
  • Bottom disk straight punched and send to the cup body , less wastage and precision.
  • Robot straight lift the cup body to main mold.
  • Servo motor control the bottom disk, precision and reliable.
  • Working power only 3.5KW, save power cost.
  • Automatic Oil Lubrication system, long life time.
  • All procedure sensor detect (sensors control all steps), Less wastage & fault, Reliable.
  • HMI & PLC Program computer control, easy operate, fault auto-stop and easy solution.
  • Quality electronic parts, bearing, material, machine life long.
  • With cup stacker/collector, one worker can run 2~3 sets machines.

It makes both one-side or two-side PE-film-coated paper cups after running a whole procedure of automatic Multi-step pre-printed-cup-fan-paper Feeding (Multi-step paper-feed and Anti-back device to keep the accurate position), cup-body-side welding, silicone-oil lubricating(for top curling), robot transfer cup body, bottom-disk punching, bottom pre-heating and pre-folding, main heating, bottom knurling(cool device for 2PE), top curling, cup discharging and collecting.

ZBJ-OC12 Paper Cup Making Machine Specification:

Model ZBJ-OC12 Heater ZBJ-OC12 Ultrasonic
Paper Cup Size: 40ml ~ 12oz 3 ~ 12 oz
Rated Speed: 70~90 PCS/minute, 7oz stable 80pcs/minute

Speed affected by cup size, paper quality & thickness

Raw Material: One side PE Coated Paper One-side or Two side PE coated paper
Suitable paper weight: 140~250gsm 180~350gsm
Power Source: 50Hz, (380V 3-phase, 50Hz), (Better use 380V 3-phase)

* if User power different? Please INFO US IN ADVANCE.

Total Power: 6KW 6KW
Working Power: 3.5 KW 3.5 KW
Total Weight: GW/NW: 2200/2000KG
Pack Size (L*W*H) 2250 x 1350 x 1800 mm
Working Air Source: Air pressure:0.4Mpa;  Air Out-put:0.6m³/minute

User should BUY Air Compressor

Cup Side Welding: Pre-heating + Heater Ultrasonic
Cup Bottom Heating: Heater (40ml~100ml) Hot Air  (Need Air compressor supply air)
Hot Air (100ml~12oz)
Cup Bottom Knurling: Heater Heater Knurling (if use single PE coated paper)
Cool Device (circle water), for double PE coated paper
Available to make special machine & molds on user order.
