BASIC INFO
Video of Paper cup lid machine PL-145 Leader
Picture of Paper cup lid machine PL-145 Leader
Character of Paper cup lid machine PL-145 Leader
- Speed : 80~120 pcs/minute;
- Lid size: 55~110mm,
- Material: One & Two side PE/PLA/PBS coated paper,
- Material: plastic free water coated paper (KOTKA barrier coating paper ),
- Paper Weight: 35~55 um (0.35~0.55mm, 240~450 gsm), best over 320gsm,
- Total power: 15KW,
- Weight: 3300KG,
- Pack size: 3450 x 1380 x 2180mm,
- Air Source : Air Pressure: 0.4Mpa, Air output: 100~300L/minute;
- We Reserve the right to alter specifications without prior notice.
- other,
Description of Paper cup lid machine PL-145 Leader
- PL-145 paper lid machine is our patent machine, which make paper lid, paper cover.
- It’s an automatic machine with the functions:Automatic roll paper feed, creasing (make the forming guide line), emboss (can make emboss, logo), hole punch(make hole for straw), punching (punch the roll paper to lid open disc), auto feed disc to mold, heating, folding, knurling, and discharge. With convey and counter for collection.
Advantage of Paper cup lid machine PL-145 Leader
- Patent equipment, (this machine designed and researched by our company only, we do not have other branch company),
- Exclusive, the machine working process, and machine inside mechanism system all by
- Automatic Roll paper feed system (lift/down roller by hydraulic, easy operation, with brake motor feeder, tension controller),
- Auto creasing (guide line, guide the lid side folding in order, not ugly wrinkle),
- Auto emboss (logo or shape on lid top, also make cross cut),
- Auto inline drink nozzle punch (center hole O/X shape, side edge hot drink nozzle,stream out hole),
- Auto punching (punch roll paper to lid open disc, lift to lid mold),
- Lid made by one paper disc, save cost.
- PLC control + servo motor feed paper,
- Quality Open cam + shaft + cam + gear control movement, stable and reliable.
- Automatic oil system,
- Mechanism system full covered in box, avoid dusty and keep safety.
- Easy operation, only need feed roll paper, and collect lids, save labor.
- 24 hours no-stop working allowed (full auto oil system allow machine run 24hours a day).

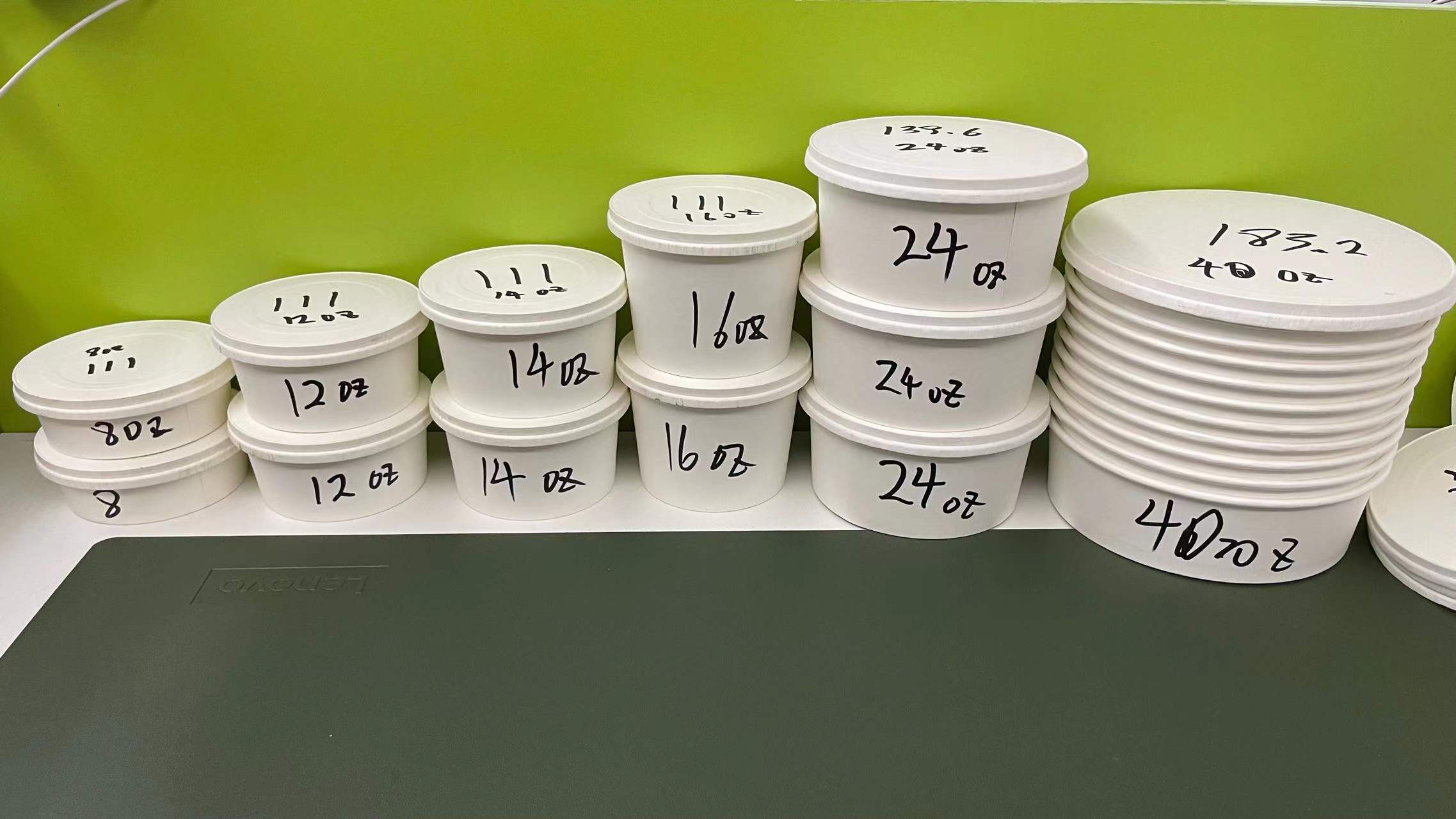

Paper Lid Advantage:
- # One layer lid, cost cheap, # full automatic, easy operation,
- # Easy drink nozzle/hole cut, choose center hole X/O cut or not, make lid for cold & normal drink,
- # Inside emboss knurling lock, with paper lock-design, prevent water spread out,
- # ECO friendly, use paper material, all world plastic control or banned, will be great market,
- # Easy print beautiful artwork on paper lid than plastic lid (especially print together with cup artwork, looks excellent),
- # Amazing customize logo print, customize lid print, and excellent match the customize cups,
