Paper cup lid packing machine inline with paper cup lid machine

  • paper lid cover pack machine,
  • # Speed: 15~40 bags/ minute,

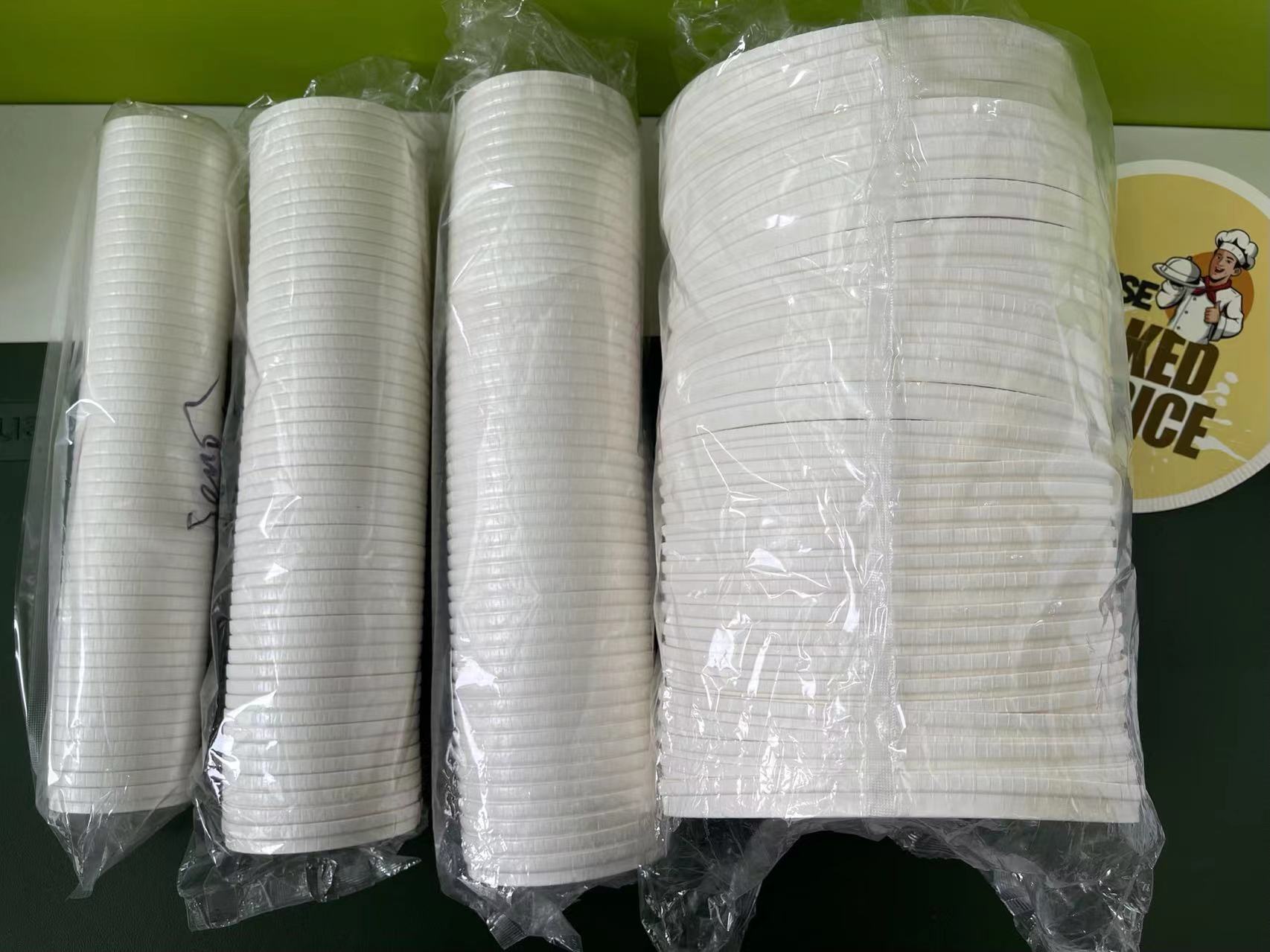

  • # pack paper lid cover into film bag,
  • # Pack diameter: ¢40~¢120 mm,
  • # Pack length Max: 800mm,
  • # Film Material: Film: HDPE, LDPE, PP, POF, OPP, CPP, BOPP
BASIC INFO

Inline paper lid cover packing machine video

videos in youtube: https://www.youtube.com/watch?v=bXDv_Ij8U1w&list=PLjB-v2tkpOHf5aRN0eLDLXSV3KOJaq0V8&index=1

Paper cup lid cover cap machine video

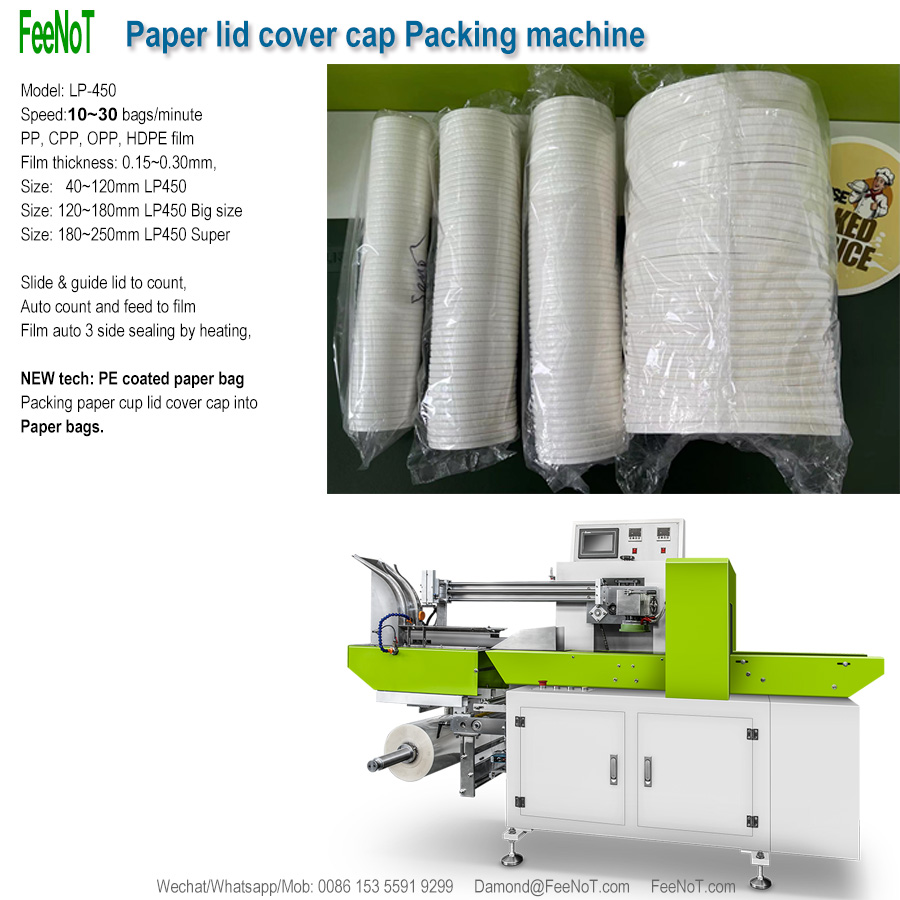

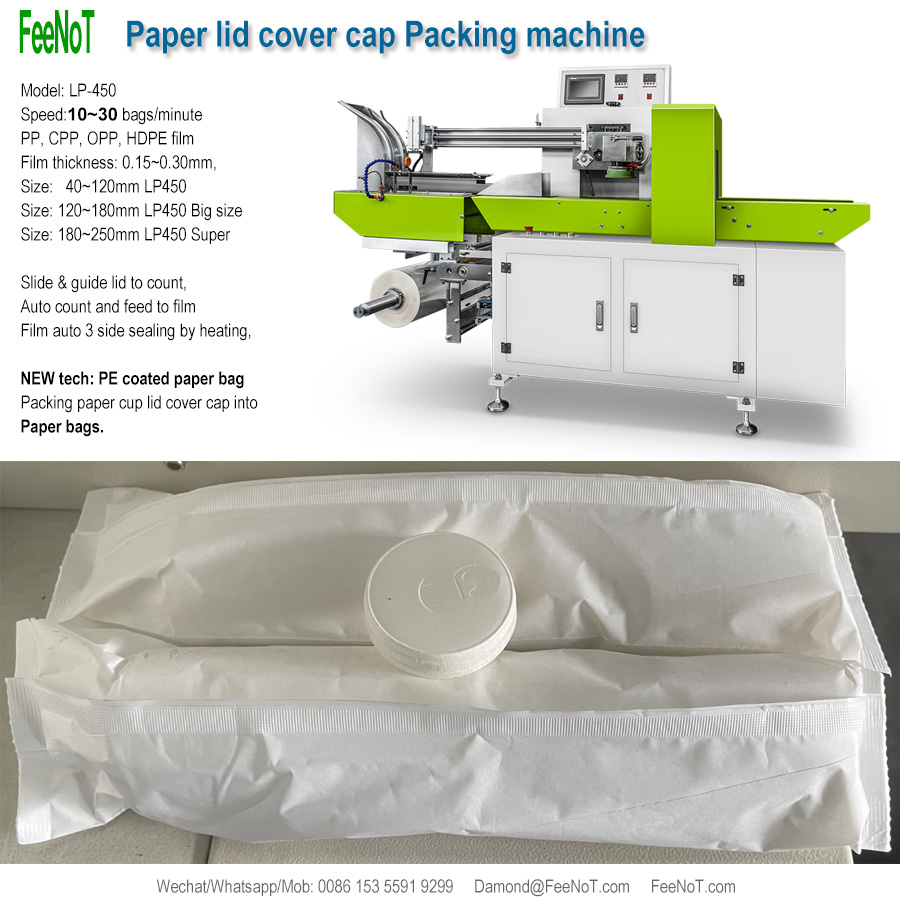

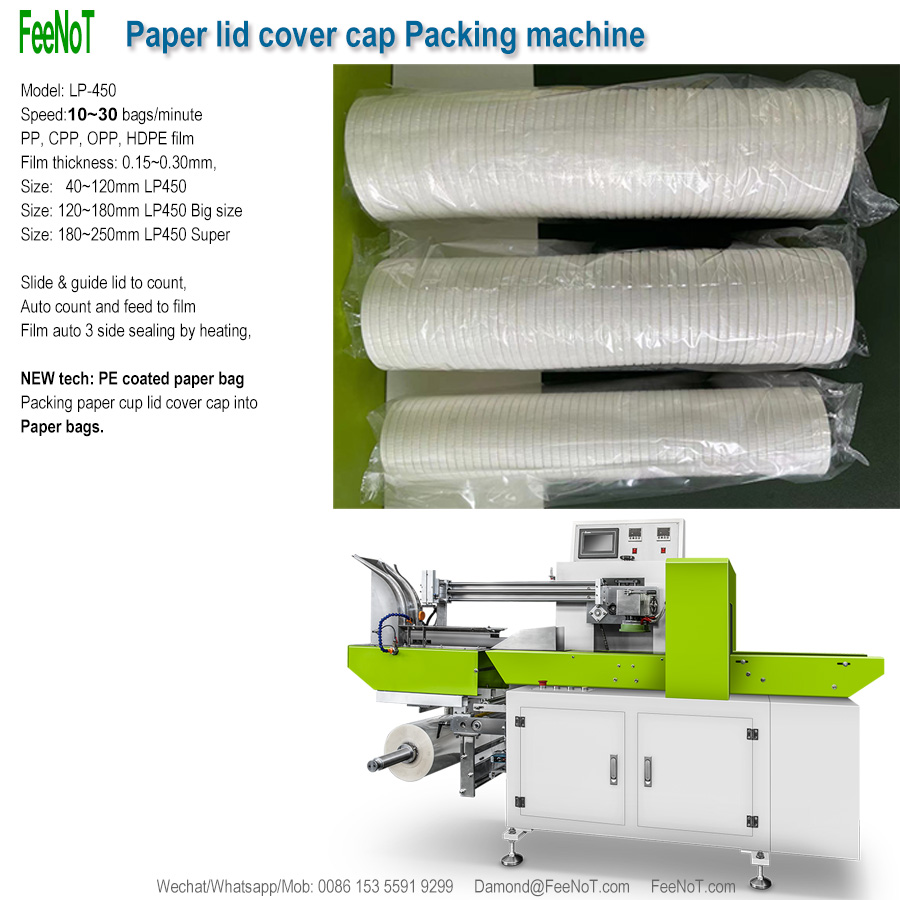

Inline paper lid cover packing machine picture

paper lid cover cap packing machine

paper lid cover cap packing machine

Inline paper lid cover packing machine specification

Technician date: 技术参数
Speed: 15~35 bags/minute, 包装速度: 20 pcs/min
Lid diameter: 40~ 120 mm diameter, 杯子口径:¢65-¢120 mm
Max Pack length: 800mm 叠盖长度:(可调节)
Film: HDPE, LDPE, PP, POF, OPP, CPP, BOPP 包装膜材料:HDPE  LDPE  PP  POF OPP
Film thickness: 15~30 um (0.15~0.3 mm) 包装膜厚度:15—-30 um
Total power: 2.8KW 总功率:2.8KW
Power source: 220V single phase, 50Hz 电源电压:220V  50HZ
Air: pressure 0.5MPa, out put 300~500 L/minute, 气源:≥0.5 MPa
Weight: 800KG 设备重量:约800kg
Size: 2460 x 1100 x 1340 mm

(to connect to lid machine, can adjust the convey against order)

设备尺寸:长3500x宽1100 x高1200 mm

(前面输送可更具客户场地进行调整)

Inline paper lid cover packing machine details

LP-450 lid pack machine flow LP400-全自动纸杯包装机动作流程:
1, the lid come out from lid machine slide to pack machine,

2, auto feed lid and count to stack function,

3, after lid arrival set number, send to film pack machine,

4, PLC program control, sensor detect lid, send film (set length),

5, side sealing blade and bag sealing blade to seal the 3side.

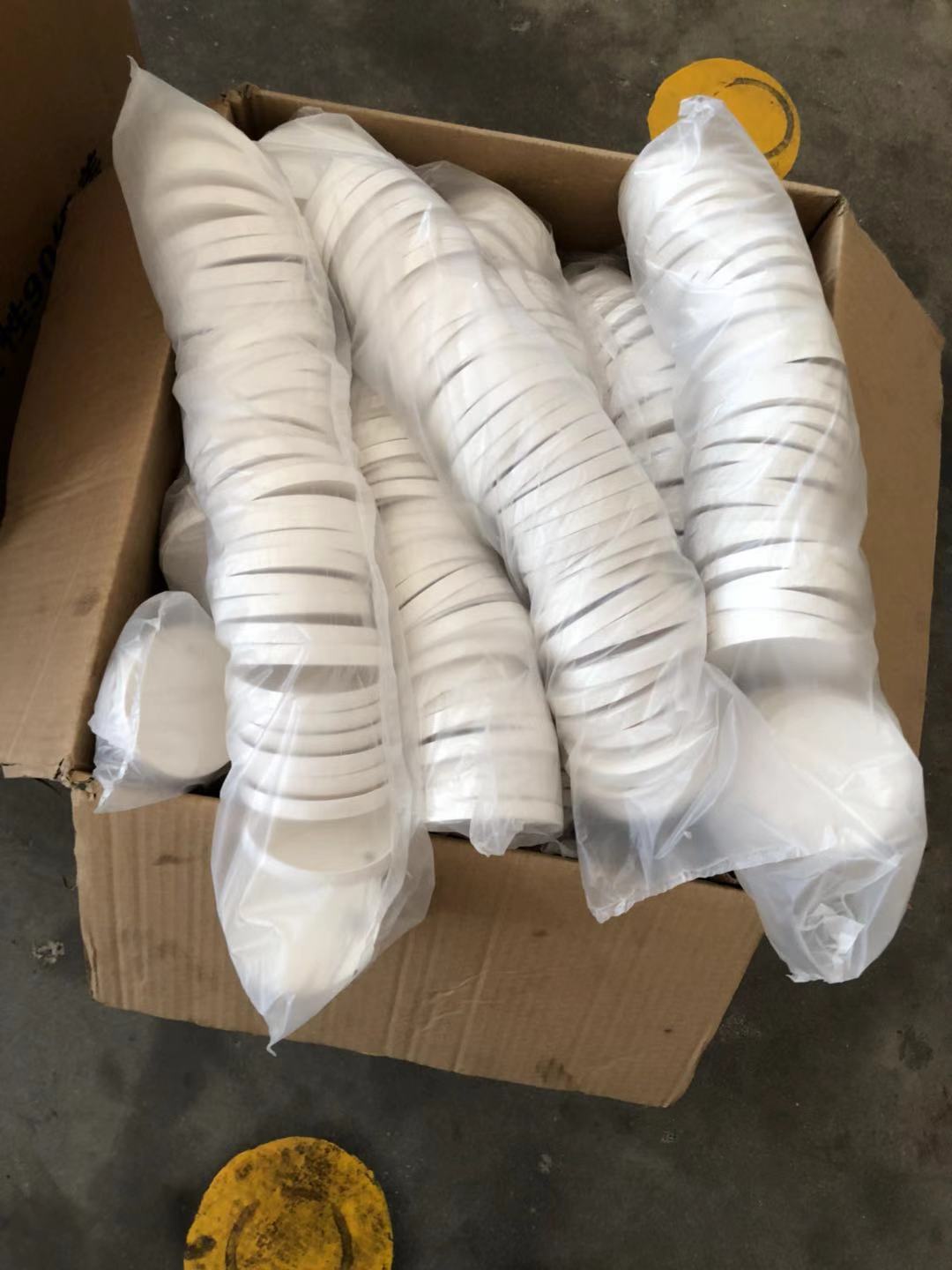

6, convey transfer packed bag to carton box or pack area.

1. 纸盖机生产出来纸盖后滑到包装机平台上,

2. 平台依次一个个送入纸盖滑到进行光电识别点数堆叠到设定数量

3. 盖子达到特定数量收推送入包装机

4. PLC程序识进杯光眼检测到盖子,经过别后发送脉冲给伺服驱动器,根据设定的长度送出膜;

5. 封口刀和横封刀进行启动进行封口;



LP-450 lid pack machine Brief info LP400-全自动纸杯包装机 设备简介:
l Adopt PLC control, touch screen, easy operate,

l Adopt Thermostat control temperature, stable & even,

l Film length adjustable, save film cost,

l Sealing & cut: reliable design keep sealing firm & perfect

l Short of air auto alarm and stop,

l Pneumatic parts adopt quality brand,

l Adopt famous brand quality electric element,

采用PLC可编程控制器,触摸式人机界面,使操作更为简便

温控:采用温控模块控制温度,加热更稳定均匀

送膜:与单台纸盖机联线时可分组设定膜长,更加省膜

封切方式:采用合理的机械结构和气动执行使切口更加牢固美观

安全装置:机器气压不足自动停机报警

气动元件均采用台湾品牌

电气元件均采用国际品牌



LP-450 lid pack machine Brief info LP400-全自动纸杯包装机 设备简介:
l Adopt PLC control, touch screen, easy operate,

l Adopt Thermostat control temperature, stable & even,

l Film length adjustable, save film cost,

l Sealing & cut: reliable design keep sealing firm & perfect

l Short of air auto alarm and stop,

l Pneumatic parts adopt quality brand,

l Adopt famous brand quality electric element,

采用PLC可编程控制器,触摸式人机界面,使操作更为简便

温控:采用温控模块控制温度,加热更稳定均匀

送膜:与单台纸盖机联线时可分组设定膜长,更加省膜

封切方式:采用合理的机械结构和气动执行使切口更加牢固美观

安全装置:机器气压不足自动停机报警

气动元件均采用台湾品牌

电气元件均采用国际品牌

Inline paper lid cover packing machine

Inline paper lid cover packing machine
