Paper cup manufacturing solution – production process line

Disposable paper cups are hot sale in market, how to start paper cup business? what is the Paper cup manufacturing solution – production process line?
Following show one of the solutions.

Paper cup manufacturing solution – production process line

Following details the Paper cup manufacturing solution – production process line.

How to start paper cup production business?

Plan Prepare

• A, Choose cup size, what sizecup to make? for example 8oz paper cup. ( customer decide the cups he want to produce, study the market, find the most popular size to produce, or customize size).
• B-1, Post 8oz cup samples to us, Together post the lids for paper cups, final test the cups match your lids(if your cups fit for lids).
• B-2, Do not have paper cup samples? Give paper cup dimensions to us.
• B-3, Do not know paper cup dimensions? Tell uswhat size cups to make, we offer you the cup size dimensions and drawings for reference.
• C, We make8oz paper cup drawing design: cup drawing (cup dimensions), cup fan drawing (buy paper cup fan), cup bottom drawing (buy bottom roll paper).

Plan to order :

• 1-1, Buy Paper cup bottom roll paper, min order 1 Ton.
• 1-2, Buy paper cup fan roll paper, big width roll, min order 1ton,
• 2, Buy paper cup print machine, Flexo printing machine, print artwork on roll paper;
• 3-1, Buy paper cup fan die cutting machine, cut roll paper to cup fan blank,
• 3-2, Buy paper cup fan punching machine, punch roll paper to cup fan blank.
• 4, Buy servo paper cup machine, newest tech, entirely servo driven, produce paper cups;
• 5-1, Auto pack, buy Pillow style Paper cup packing machine, online connect to paper cup machine, fully automatic, BOPP film.
• 5-2, Manual packing by hand, pack paper cups into plastic film bags (buy bags).
• 6, Carton package, pack paper cup bags into carton box (buy carton box).
• 7, Stock, sell, delivery.
• PS: 1pcs print machine + 1pcs cutting machine, can supply over tens paper cup machines working.

.

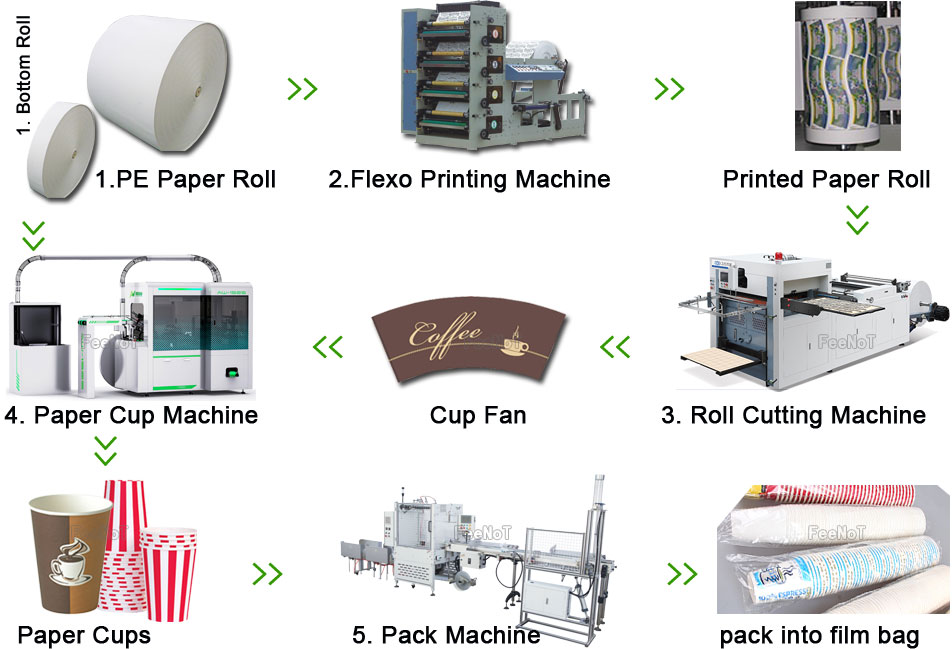

Paper cup manufacturing solution – production process line

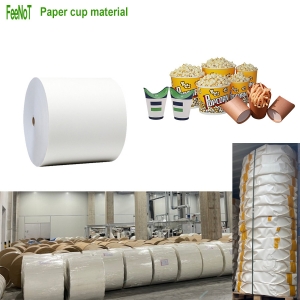

1, Paper cup material

PE / PLA / PBS / water based barrier coated paper,

• 1-1, buy PE coated paper roll (narrow),
• Price: $1000/Ton,
• Min order: 1Ton,
• (paper cup bottom roll paper, width and thickness against the cup size, information is on cup drawing, or user choose the paper )
• .
• 1-2, buy PE coated paper roll (big width),
• Price: $1000/Ton,
• Min order 1Ton.
• (paper cup fan wall paper, size and thickness against the cup drawing, cup size, or user choose the paper thickness ).
• How many tons paper to buy? Against on machine speed, cup size, paper thickness,



2, Paper cup printing machine

Roll to roll Flexo printing machine, print logo artwork on roll paper.

• Buy Paper cup Flexo printing machine, 4-color press,
• Price: $29,000
• Model: FNT-950, 4-color
• Printing Color: 1~4 color,
• Printing Speed: Max. 60m/min,
• Max. Paper Reel Width: 950mm,
• Max. Printing Width: 930mm,
• Max. Unwinding/Rewinding Diameter: Φ1400mm,
• Dimensions(L*W*H): 3500x1950x2200mm,
• Machine Weight: About 5000KG;
• Print artwork logo on roll paper, finished in roll paper.



3, Paper cup punching machine

Punch roll paper to paper cup fan blank, auto collect cup fan blank, no need extra stripping work.

• Buy Paper cup fan punching machine,
• Price: $27,000
• Model: FNT-850,
• Production speed: 300~400 beats/min ,
• Max punch width: 850mm ,
• Max roller diameter: 1500mm ,
• Paper gram weight: 150-350g/㎡ ,
• Total power: 10kw ,
• Weight: 3700KG, Dimension: 3500x1700x1800mm ,
• Feed roll paper, auto punching roll paper to paper cup fan blank stock,
• (Best option for one size cup blank punch).

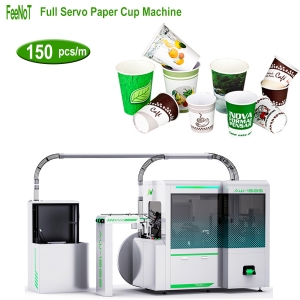

4, Servo paper cup machine

Produce paper cups, speed up to 150 pcs/minute, entirely servo motors driven.

• Buy Servo paper cup machine 150S,
• Price: $33,000
• Model: FNT-150S ALL SERVO
• Production speed: up to 150 pcs/minute (9000 cups/hour),
• Size: 3~16oz paper cup container,
• Top: 45~100 mm; Bottom: 38~70 mm; Height: 45~135 mm,
• Material: 150~320 gsm 1PE & 2PE paper,
• Machine size: 3200x1650x1900mm, collector on size,
• Weight: 3350KG, Working power 10KW,
• Newest, start of the art, Entirely servo driven paper cup machine,
• + 10pcs INOVANCE SERVO + SHIMPO REDUCER
• + 10pcs ALLOY MAIN MOLD + 8PCS CURLING MOLD
• + Intelligent + High efficient and quality,
• + STABLE, RELIABLE + EASY & LESS MAINTENANCE.



5, Paper cup packing machine

Packing paper cups, make and seal plastic film bag, auto pack paper cup piles into film bag.

• Buy Paper cup Packing machine,
• Price: $9,000
• Speed: 10~30 bags/minute, (against on order),
• Bag length: 65~500mm,
• Max film width: 450mm,
• Pack width: 30~200mm, Pack height: ≤110mm,
• Film: 15~30 um (0.015~0.03 mm, 0.03~0.06mm ) OPP, CPP film,
• Max film unwinding diameter: 450mm , Film core: 3”,
• Total power: 2.8KW, Power source: 220V single phase, 50Hz
• Weight: 500KG,
• Size: 2000 x 900 x 1300 mm, convey system on order. (final size on order).

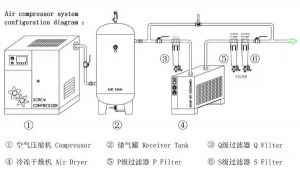

6, Screw air compressor

Supply compressed air for machines.

• Buy Air Compressor (screw),
• Price: $5,200
• Model: 22KW compressor + 1000L tank + air filter + air dryer,
• (supply above print, die cut, cup making, pack machines working).
• How big compressor? Depends on how many machines order.



NOTES:

• 1pcs print machine + 1pcs cut machine, supply over tens paper cup machine working.
• Most of the new user, no need to buy whole production line, the solution is (buy bottom roll, buy printed paper cup fan, buy paper cup making machine).



Paper cup manufacturing solution Other machines for reference:



7, Paper cup lid machine

Produce dome/flat paper lid (stack/straight) for paper cups.

• Buy Paper cup lid machine,
• Price: $29,000
• Model: FNT-112
• Speed: 100~110 pcs/minute,
• Lid diameter size: 55~112 mm
• Lid height: 8~12 mm
• Material: PE/PLA/BioPBS/KOTKA coated paper,
• Thickness: 0.35~0.62mm (recommend 0.40~0.45mm 300~320gsm )
• Weight: 3100KG,
• Machine Size: 3400 x 1380 x 2100
• Need Air (pressure:0.3~0.5Mpa, Output:300L/m),
• Total power: 15KW
• Power source: 380V 3-phase 50/60Hz



8, Plastic lid machine

Produce PS/PET plastic lid for paper cups.

• Buy Plastic glass lid machine,
• Price: $13,000
• Model: FNT-420
• Punching Speed: 10~30 beats/minute,
• Max Forming Area: 410 x 150 mm,
• Material: 0.15~0.55mm (PET, PS, PVS, PVC) plastic reel film,
• Max Reel Width: 430 mm,
• Max Forming Depth: 30 mm,
• Power: 4.6KW; Power Source: 380V 3-phase 50Hz,
• Weight: GW/NW: 1000KG/800KG,
• Pack Size: 2300 x 1000 x 1900 mm,
• Water: Water Pressure: 0.2MPA; Water-Input: 0.3 m³/Hour,
• Air: Air Pressure: 0.5~0.7 MPA; Air Input: ≥0.2 m³/minute,



3-2, Paper cup cutting machine

Die cut roll paper to paper cup fan blank, for many size cup.

• Buy Paper cup cutting machine,
• Price: $32,000
• Model: FNT 970×550
• Speed: 150~200 beat/min,
• Material: 135~400 gsm paper or cardboard,
• Max die cut area: 940 x 510mm,
• Cutting Precission: ±0.15 mm,
• Max unwinding diameter: 1600 mm,
• Max stack height: 1000 mm,
• Size: 4200x2100x1800, Weight: 6200KG,
• Air (Pressure: 0.3~0.5MPa, output:>0.3 m3/m)
• Power: 380V 3-phase, 60/50Hz,

.

Quotation for Paper cup manufacturing solution – production process line

Quotation for paper cup production line
No.	DESCRIPTION	QTY	Unit PRICE	TOTAL
1	PE coated paper roll One side PE coated paper roll, Cup bottom narrow roll	5 Ton	$1,000	$5,000
2	PE coated paper roll One side PE coated paper roll, Cup fan, big width roll	20 Ton	$1,000	$20,000
3	Paper cup Printing machine FNT-950, 4-color, print artwork on roll paper,	1 pcs	$29,000	$29,000
4	Paper cup fan punching machine FNT-850, punch roll paper to cup fan blank, auto collect cup fan,	1 pcs	$27,000	$27,000
5	Servo Paper cup machine FNT-150S, entirely servo driven,	1 pcs	$33,000	$33,000
6	Paper cup packing machine FNT-450, BOPP film, connect to cup machine, pack cups into bags.	1 pcs	$9,000	$9,000
7	Air compressor (Screw air compressor, supply above machines working) Model: 22KW compressor + 1000L tank + air filter + air dryer,	1 Pcs	$5,200	$5,200
(price change against USD exchange rate) The Total :				$128,200
Price only for reference, final price contact us before you order.

.

Remarks:
Quotation Value:	30 days from the quotation.
Price Term:	FOB Ningbo port, China. (INSURANCE OUT OF CHINA COVERED BY THE BUYER)
Payment Term:	T/T payment (30% deposit, 70% before delivery). ** The buyer is welcomed to test machine before delivery.
Delivery Time:	30~60 working days at sight the deposit. (actual delivery time given while order confirm)
Package:	Standard export package. (require special package? please contact us in advance).
Warranty	One year from the equipment arrival.
Power Source:	The power source: 380V 3-Phase, 50/60Hz (R, S, T, N line, please confirm power source before start order).

.

Download PDF file

001 paper cup production line solution 150S-FeeNoT-ALLWIN.pdf

.
