Start paper cup manufacturing business – new user investment

How to Start paper cup manufacturing business ? How much investment for new user to start a small paper cup production factory?
New user, no need to buy the whole line such as print, die cut, just start from paper cup produce machine, packing machine.

The investment is small and Investment risks are controllable.

Start paper cup manufacturing business – new user investment

Plan Prepare

• A, Choose cup size, what sizecup to make? for example 8oz paper cup. ( customer decide the cups he want to produce, study the market, find the most popular size to produce, or customize size).
• B-1, Post 8oz cup samples to us, Together post the lids for paper cups, final test the cups match your lids(if your cups fit for lids).
• B-2, Do not have paper cup samples? Give paper cup dimensions to us.
• B-3, Do not know paper cup dimensions? Tell uswhat size cups to make, we offer you the cup size dimensions and drawings for reference.
• C, We make8oz paper cup drawing design: cup drawing (cup dimensions), cup fan drawing (buy paper cup fan), cup bottom drawing (buy bottom roll paper).

Plan to order

• 1-1, Buy Paper cup bottom roll paper, min order 1 Ton.
• 1-2, Buy Printed Paper cup fan, Min order 5Ton; (Printed paper cup fan, customize logo artwork printed & cut paper cup fan blank stock);
• 1-3, Buy White Paper cup fan, White paper cupfan(no print), some customer just want white paper cups.
• 2, Buy servo paper cup machine, newest tech, entirely servo driven, speed up to 150 pcs/minute, produce paper cups, intelligent, speed, high quality, stable.
• 3-1, Auto pack, buy Pillow style Paper cup packing machine, online connect to paper cup machine, fully automatic, BOPP film.
• 3-2Manual packing by hand, pack paper cups into plastic film bags (buy bags).
• 4, Carton package, pack paper cup bags into carton box (buy carton box).
• 5, Stock, sell, delivery.



Start paper cup manufacturing business – new user investment



1, Paper cup material

PE / PLA / PBS / water based barrier coated paper,

• 1-1, buy PE coated paper roll (narrow),
• Price: $1000/Ton,
• Min order: 1Ton,
• (paper cup bottom roll paper, width and thickness against the cup size, information is on cup drawing, or user choose the paper )
• .
• 1-2, buy PE coated paper roll (big width),
• Price: $1000/Ton,
• Min order 1Ton.
• (paper cup fan wall paper, size and thickness against the cup drawing, cup size, or user choose the paper thickness ).
• How many tons paper to buy? Against on machine speed, cup size, paper thickness,

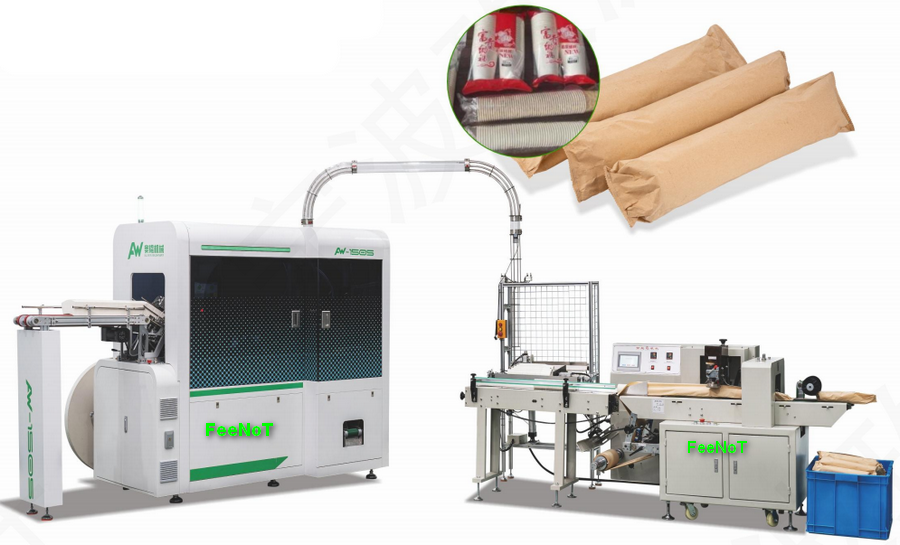

2, Servo paper cup machine

Produce paper cups, speed up to 150 pcs/minute, entirely servo motors driven.

• Buy Servo paper cup machine 150S,
• Price: $33,000
• Model: FNT-150S ALL SERVO
• Production speed: up to 150 pcs/minute (9000 cups/hour),
• Size: 3~16oz paper cup container,
• Top: 45~100 mm; Bottom: 38~70 mm; Height: 45~135 mm,
• Material: 150~320 gsm 1PE & 2PE paper,
• Machine size: 3200x1650x1900mm, collector on size,
• Weight: 3350KG, Working power 10KW,
• Newest, start of the art, Entirely servo driven paper cup machine,
• + 10pcs INOVANCE SERVO + SHIMPO REDUCER
• + 10pcs ALLOY MAIN MOLD + 8PCS CURLING MOLD
• + Intelligent + High efficient and quality,
• + STABLE, RELIABLE + EASY & LESS MAINTENANCE.



3, Paper cup packing machine

Packing paper cups, make and seal plastic film bag, auto pack paper cup piles into film bag.

• Buy Paper cup Packing machine,
• Price: $9,000
• Speed: 10~30 bags/minute, (against on order),
• Bag length: 65~500mm,
• Max film width: 450mm,
• Pack width: 30~200mm, Pack height: ≤110mm,
• Film: 15~30 um (0.015~0.03 mm, 0.03~0.06mm ) OPP, CPP film,
• Max film unwinding diameter: 450mm , Film core: 3”,
• Total power: 2.8KW, Power source: 220V single phase, 50Hz
• Weight: 500KG,
• Size: 2000 x 900 x 1300 mm, convey system on order. (final size on order).

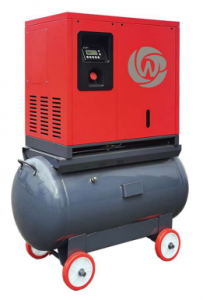

4, Screw air compressor

Supply compressed air for machines.

• Buy Air Compressor (screw),
• Price: $2,500
• Model: 7.5KW compressor with 500L tank,1~2 cup machine
• (supply 1~2 pcs paper cup machine, pack machine working).
• How big compressor? Depends on how many machines order.







Paper cup manufacturing solution Other machines for reference:



5, Paper cup lid machine

Produce dome/flat paper lid (stack/straight) for paper cups.

• Buy Paper cup lid machine,
• Price: $29,000
• Model: FNT-112
• Speed: 100~110 pcs/minute,
• Lid diameter size: 55~112 mm
• Lid height: 8~12 mm
• Material: PE/PLA/BioPBS/KOTKA coated paper,
• Thickness: 0.35~0.62mm (recommend 0.40~0.45mm 300~320gsm )
• Weight: 3100KG,
• Machine Size: 3400 x 1380 x 2100
• Need Air (pressure:0.3~0.5Mpa, Output:300L/m),
• Total power: 15KW
• Power source: 380V 3-phase 50/60Hz



6, Plastic lid machine

Produce PS/PET plastic lid for paper cups.

• Buy Plastic glass lid machine,
• Price: $13,000
• Model: FNT-420
• Punching Speed: 10~30 beats/minute,
• Max Forming Area: 410 x 150 mm,
• Material: 0.15~0.55mm (PET, PS, PVS, PVC) plastic reel film,
• Max Reel Width: 430 mm,
• Max Forming Depth: 30 mm,
• Power: 4.6KW; Power Source: 380V 3-phase 50Hz,
• Weight: GW/NW: 1000KG/800KG,
• Pack Size: 2300 x 1000 x 1900 mm,
• Water: Water Pressure: 0.2MPA; Water-Input: 0.3 m³/Hour,
• Air: Air Pressure: 0.5~0.7 MPA; Air Input: ≥0.2 m³/minute,

Quotation new user investment



Solution for new user, just start paper cup making business
No.	DESCRIPTION	QTY	Unit PRICE	TOTAL
1	PE coated paper roll Cup bottom narrow paper roll, One side PE coated paper roll,	1 Ton	$1,000	$1,000
2	Print paper cup fan Already printed and cut paper cup fan blank stock, one side PE,	5 Ton	$1,250	$6,250
3	Servo Paper cup machine FNT-150S, entirely servo driven, speed up to 150 cups/minute,	1 pcs	$33,000	$33,000
4	Paper cup packing machine FNT-450, BOPP film, connect to cup machine, pack cups into bags.	1 pcs	$9,000	$9,000
5	Air compressor (Screw air compressor, supply above machines working) 7.5KW compressor with 500L tank, support 1~2 cup machine	1 Pcs	$2,500	$2,500
(price change against USD exchange rate) The Total :				$51,750
Price only for reference, final price contact us before you order.

.



Remarks:
Quotation Value:	30 days from the quotation.
Price Term:	FOB Ningbo port, China. (INSURANCE OUT OF CHINA COVERED BY THE BUYER)
Payment Term:	T/T payment (30% deposit, 70% before delivery). ** The buyer is welcomed to test machine before delivery.
Delivery Time:	30~60 working days at sight the deposit. (actual delivery time given while order confirm)
Package:	Standard export package. (require special package? please contact us in advance).
Warranty	One year from the equipment arrival.
Power Source:	The power source: 380V 3-Phase, 50/60Hz (R, S, T, N line, please confirm power source before start order).

.

Paper cup manufacturing solution – production process line
