Servo paper cup machine
150S full servo ripple double wall paper cup machine line, production speed is up to 150 pcs/min, make and wrap a 2nd layer jacket sleeve around inner single wall paper cups.
Produce two layer, anti scalding, hot insulation coffee paper cups.
Servo drive system, Stable, Speed, Smart. Best Quality, Factory Price.

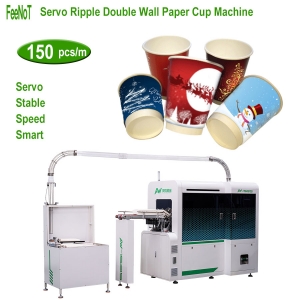

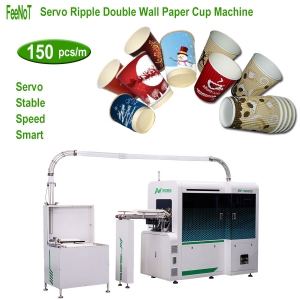

150S full servo ripple double wall paper cup machine line
Full servo ripple double wall paper cup sleeve machine, produce ripple wall paper cup, double wall paper cups against customer order size.
Double wall style: hollow paper cups, ripple/corrugated paper cups, embossed paper cups.
How to make ripple double wall paper cups?
To produce ripple double wall paper cups, require two machines working together,
- 1st, 150S servo paper cup machine, produce single wall paper cups, all servo driven, 150 pcs/minute.
- Add a mid-transfer system, collect and transfer single wall paper cups to double wall sleeve machine,
- 2nd, ripple double wall paper cup machine , seal the 2nd layer sleeve, and wrap the sleeve/jacket around single wall cups, all servo driven, 150 pcs/minute.
- 3rd, paper cup packing machine, produce 3-side bag, packaging paper cups into plastic / paper bags.
- Whole line, fully automatic, high speed, stable, intelligent.
Specification of 150S full servo ripple double wall paper cup machine line
- Model: 150S DW16,
- Speed: up to 150 pcs/minute,
- Cup size: 4~16oz,
- Top: 45~100 mm,
- Bottom: 30~72 mm,
- Height: 30~135 mm,
- Material: 150~320gsm film coated paper, paper with glossy/varnish print,
- Water glue stick the double wall sleeve and inner cup.
- Water Glue: (polyvinyl acetate emulsion),
- Option: Hot melt glue for side wall sealing, and so on.
- Weight: 3000KG,
- Machine:3200x1650x2100mm,
- Collector: 900 x 700 x 2100mm (against cup size )
- Total power: 30KW (working power 8KW),
- Power: 380V 3-Phase 50/60 Hz,
- Need Air (pressure:0.3~0.5Mpa, Output:300~500 L/m),
- Application: ripple double wall paper cups bowl container,
Picture:

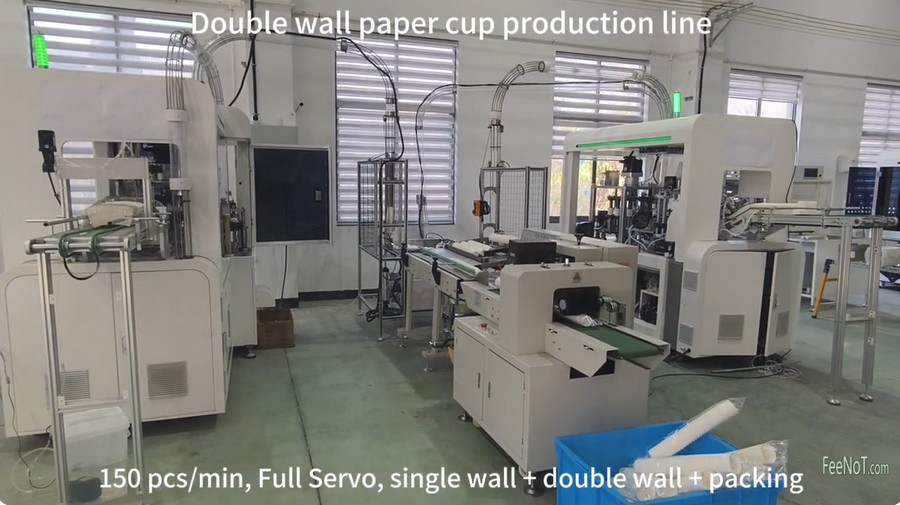

150S full servo ripple double wall paper cup machine line
