Feenot paper cup machine
Ripple double wall paper cup sleeve embossing machine 600H is a customize special made forming machinery, produce embossed ripple double wall cup sleeve.
It has two station, speed 60~120 pcs/min, speed, stable, first qualty, best price.
Info of Ripple double wall paper cup sleeve embossing machine 600H
Firstly it is a fully automatic paperboard press machine, feed plate blank sheet, auto forming the shape by mold with heater.
Adopt quality hydraulic cylinder to forming the plate dish shape, which provide high pressure, more stable and long life time, low cost.
Not like old air cylinder, which require large power compressor, cost higher.
Application: emboss ripple double wall cup fan blank, and so on.
Specification of Ripple double wall paper cup sleeve embossing machine 600H
- Model: 600H Hydraulic,
- Price: up to $15,000,
- Speed: 60~120 pcs/minute;
- Plate size: 4~13 inch,
- Round paper paper max 340mm,
- rectangle paper max 320x320mm,
- Material: 100~800 gsm paper/board,
- Working power: 8 KW,
- Power: 380V 3-Phase 50/60 Hz,
- Weight: 1550/1400KG,
- Size: 3500x1300x1900mm,
- Air Source : Air Pressure: 0.4Mpa, Air output: 300L/minute;
- Application: emboss sleeve for ripple double wall cup,
Advantage
- Two station machine, each station separately operate,
- Two station get double speed, save air and power,
- Hydraulic drive instead of pneumatic, stable pressure,
- PLC+HMI with program control, intelligent,
- Quality linear guide, stable and realiable,
- hydraulic oil recycling, reduce emission pollution, low noise,
- Making embossing ripple double wall cup sleeve,
Remark
- Price Term: FOB Ningbo port, China. (INSURANCE OUT OF CHINA COVERED BY THE BUYER)
- Payment Term: T/T payment (30% deposit, 70% before delivery). ** The buyer is welcomed to test machine before delivery.
- Delivery Time: 30~50 working days at sight the deposit. (actual delivery time given while order confirm)
- Package: Standard export package. (need special package, please info us in advance).
- Warranty: One year from the equipment arrival.
- Power Source: The power source: 380V 3-Phase, 50/60Hz (R, S, T, N line, please confirm power source before start order).

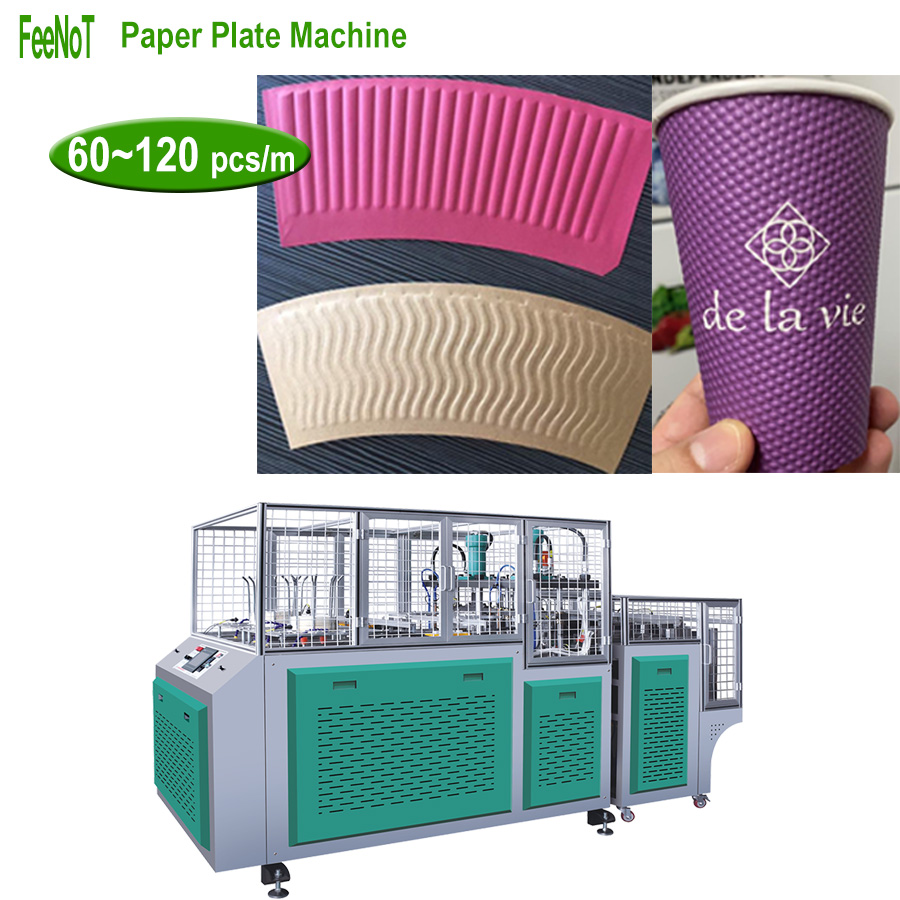

Ripple double wall paper cup sleeve embossing machine 600H
