Medium Speed Paper Cup Machine ZBJ-X12 Video
Video link in youtube: Paper cup machine ZBJ-X12 medium speed
Medium Speed Paper Cup Machine ZBJ-X12 Brief Info:
# Speed: 60~85 pcs/minute
# Cup Size: 2~12 oz
# Material: 150~350 gsm 1PE & 2PE paper,
# PLC control, Open Cam + Shaft + Gear drive,
# Servo motor feed bottom, accurate and no waste,
# 11 sensors detect all steps, fault alarm & stop,
# Cup side welding: by Ultrasonic,
# Cup bottom heating: by Air compressor Hot-Air,
# Quality electric parts(famous brand), Auto oil system
# Working power: around 3.5KW
# Power Source: 380V 3-Phase 50/60 Hz
# Need Air (pressure:0.3~0.5Mpa, Output:0.5 CBM/m)
Medium Speed Paper Cup Machine ZBJ-X12 Picture
Medium Speed Paper Cup Machine ZBJ-X12 Specification :
|Model||ZBJ-X12 Heater||ZBJ-X12 Ultrasonic||ZBJ-X22 Ultrasonic|
|Paper Cup Size:||40ml ~ 12oz||2 ~ 12 oz||8~22 oz|
|Rated Speed:||60~75 PCS/minute||50~70 PCS/minute|

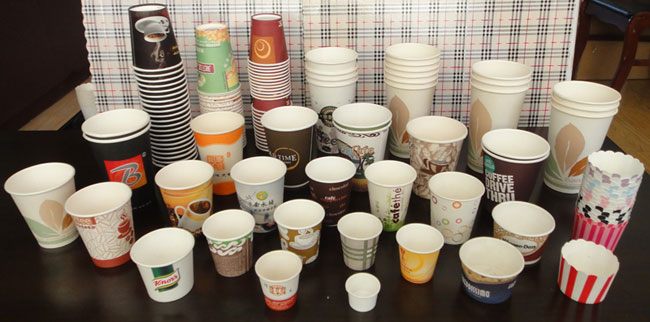

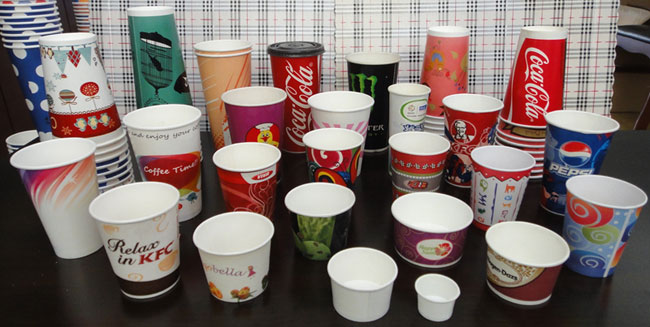

|Raw Material:||One side PE Paper||One-side or two side PE film coated paper|
|Suitable paper weight:||140~250gsm||180~350gsm|
|Power Source:||(Better use 380V 3-phase) * if User power different? Please INFO US IN ADVANCE.|
|Working Power:||3.5 KW||3.5 KW|
|Total Weight:||GW/NW: 2500/2350KG||GW/NW: 2700/2500KG|
|Pack Size (L*W*H)||2750 x 1240 x 1800 mm||2800x1300x1900|
|Working Air Source:||Air pressure:0.4Mpa; Air Out-put:0.6m³/minute, (User should BUY Air Compressor )|
|Cup Side Welding:||Pre-heating + Heater||Ultrasonic|
|Cup Bottom Heating:||Heater (40ml~100ml)||Hot Air (Need Air compressor supply air)|
|Hot Air (100ml~300ml)|
|Cup Bottom Knurling:||Heater||Heater Knurling (if use single PE coated paper)|
|Cool Device (circle water), for double PE coated paper|
|We Reserve the right to alter specifications without prior notice.|
Medium Speed Paper Cup Machine ZBJ-X12 More Details :
1, Gears & Axis control movement, two index gear box, more efficient & accurate.
2, Quality 125# index gear box + 80# index gear box to keep machine stable,
3, HMI & PLC Program computer control, easy operate, fault auto-stop and easy solution.
4, All procedure sensor detect (11-sensor control all step), Less wastage & fault, Reliable.
5, Servo motor control bottom feed, one cup body one bottom punch, precession, no wastage.
6, Self lubrication (Automatic Oil Lubrication for machine moving part), long life time.
7, Import electric Elements, Superior Bearing & Quality material, more durable and reliable.
8, Working power only 3.5KW, save electric power cost.
9, One worker can run 2sets machine (machine assemble cup stock), save labor cost.
|Price Item:||FOB Ningbo port, China.|
|Option 1, T/T payment (30% deposit, 70% before delivery).
Option 2, Irrevocable L/C at sight (By L/C, Extra $1000 bank charge per shipment).
**** The buyer is welcomed to test machine before delivery.
|Delivery Time:||30~60 days at sight the deposit. (actual delivery time given while order confirm)|
|Package:||Standard export package. (need special package, please info us in advance).|
|Electric Power Source:||The electric power source for this machine adopt 380V 3-phase 50Hz.
If the buyer’s power source different, should declare in advance.
|After Sales Service:|
|1||We offer a 12 months warranty. During the warranty period, we provide free replacement of damaged parts due to quality problems (post charges covered by buyer). All failures/breaking caused by improper operation of the buyer and/or normal abrasion are not within the warranty.|
|2||Spare Parts: Each machine has its standard spare parts (see list).|
|3||Manual, Video, to help operate machine, Questions response within 48 hours (except holiday).|
|4||The buyer come to learn how to operate machine, how to adjust, how to change parts. It is free.
(buyer should pay for his cost of ticket, hotel, food, etc).
|5||The seller agrees to dispatch technician for installation & training, the cost covered by the buyer.
Technician cost includes: round tickets, accommodation (hotel, food), an allowance of USD80 a day.
