BASIC INFO
Video of Paper bowl container machine GH1500
Video of Paper bowl container machine GH1500
Working video playlist on youtube

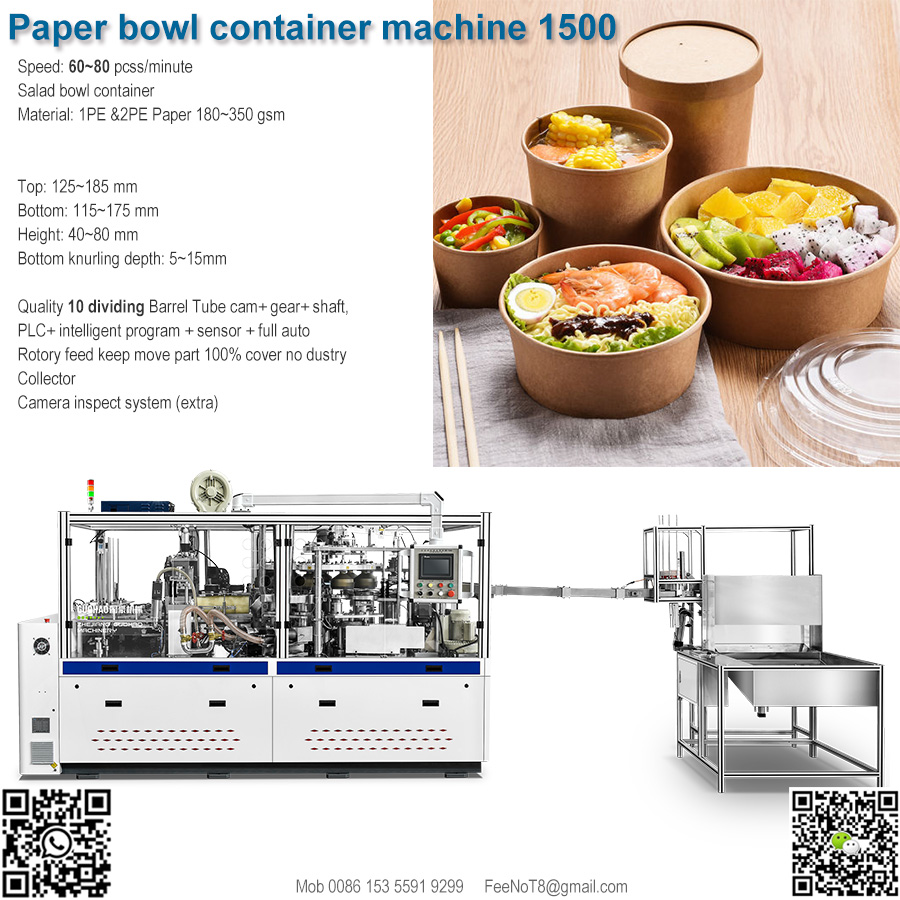

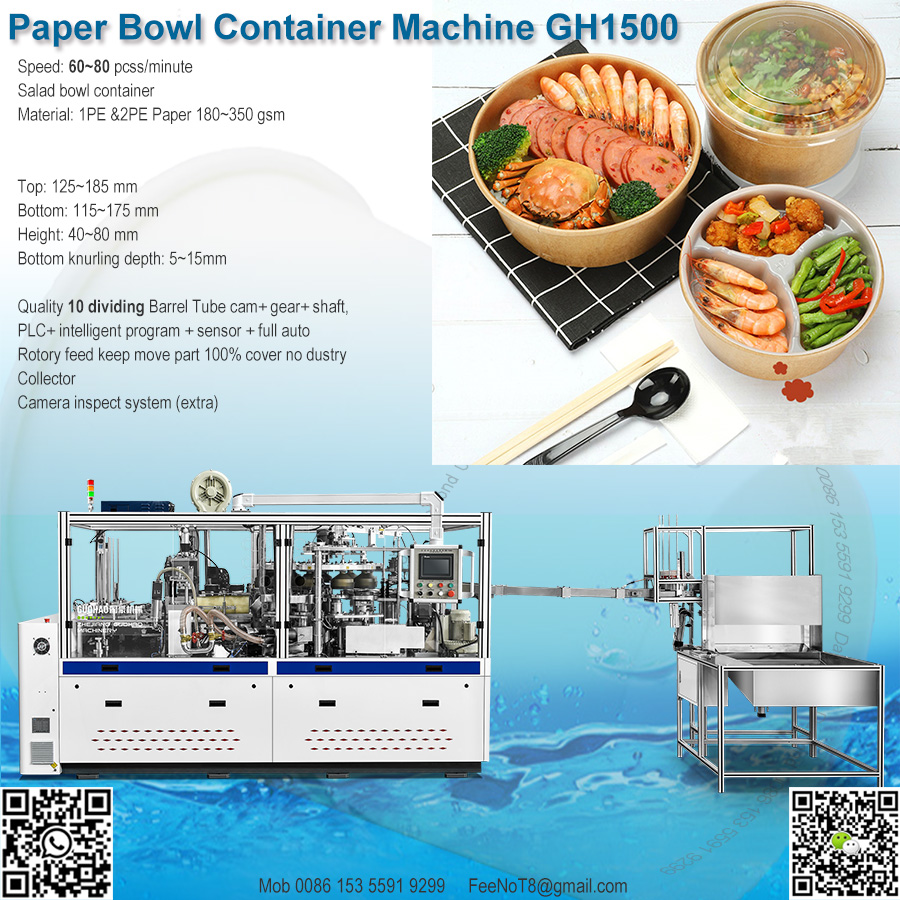

Picture of Paper bowl container machine GH1500
Picture of Paper bowl container machine GH1500
Character of Paper bowl container machine GH1500
- Paper bowl container machine GH1500
- Model: GH1500
- 60 ~80pcs/minute (Bowl),
- Raw material: 190~350gsm Coated paper, Single (double ) PE coated paper, (heavy paper, quality cups)
- Material: PE/PLA/PBS film coated paper,
- Tube barrel cam + shaft + gear drive,
- Usage: salad food ice cream paper bowl container
- Power Source: 380V, 3-phase, 50Hz
- Working Power: 8 KW (against the cup size, paper thickness) (total power 21KW)
- Need Air: 0.5~0.8Mpa, 0.4 cubic meter per minute,
- Machine size : 3250 x 1770 x 2100 + 1370 x 1330 x 1850
- Weight: (wooden case): 4900 KG (with wooden case and collector around 5300KG)
- Cup wall welding: 2pcs ceramic hot air pre-heating + ultrasonic welding
- Bottom heating: 2pcs ceramic hot air heating (main heating)
- ,
Description of Paper bowl container machine GH1500
- high speed Paper bowl container machine GH1500 improved for quality cups,
- Functions: Cup fan stocks >> side pre-heating (up/down hot air) >> Side welding >> cup cone forming >> bottom paper disc auto punched to mold >> insert the cone to cup main mold >> bottom heating 1 >> bottom heating 2 >> bottom lubricate > > bottom pre-folding >> Bottom knurling >> Top rim silicone lubrication >> rim first curling >> rim second curling >> (Option, camera detect, rejection ) >> count & collect.
- ,
