ZBJ-H32 Customized Paper Cup Machine Video
ZBJ-H32 Customized Paper Cup Machine Specification:
|Name||Paper Cup Machine|
|Model||ZBJ-H16 Ultrasonic||ZBJ-H22 Ultrasonic||ZBJ-H32 Ultrasonic|
|FOB Price||$ /set||$ /set||$ /set|
|Rated Speed:||40~45 pcs/m||35~45 pcs/m||30~40 pcs/n|
|Cup Size Range:||8~16oz||12~24oz||16~32oz|
|Suitable PE Paper||Both ONE or TWO Side PE Coated Paper|
|Suitable paper weight:||180~350gsm (Max 450gsm)|
|Cup Wall Welding:||Ultrasonic Sealing|
|Cup Bottom Heating:||Hot Air (Need Air compressor to provide the air)|
|Cup Bottom Knurling:||Heater Knurling ( One side PE paper)|
|Cool Device (circle water) Knurling (For Two Side PE Paper)|
|Working Air Source:||Air pressure:0.2~0.4Mpa; Air Out-put:0.6m³/minute
User should BUY Air-compressor .
|Power Source:||50/60Hz, 380V/220V (better use 380V, 3-phase).|
|Total Weight: (GW/NW)||1800KG/1650||2200KG/2000||2500KG/2300|
|Pack Size (L*W*H) m||3×1.3×1.9||3.2×1.4×2.1||3.5×1.5×2.2|
|Option 1: Cup Stock/Collector: include (blower, 2meter transfer tube, counter and pack desk)||$1000|
|Option 2: Safety Fence (Plastic-glass window, fence, out-look better)||$750|

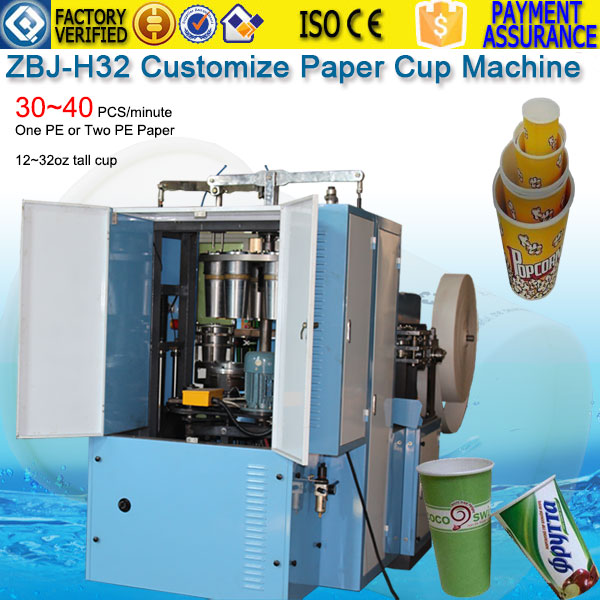

ZBJ-H32 Customize Ultrasonic Paper Cup Machine Picture:
Special Model Ultrasonic Paper cup machine description:
Special Model Paper Cup Machine is an automatic machine with multi-working station, which has the function of photocell detection, failure alarm, counter and the advantages of humanism design, safer operation and easier maintenance.
It makes both double and single PE-film-coated paper cups after running a whole procedure of automati pre-printed-cup-fan-paper Feeding (Two-step paper-feed and Anti-back device to keep the accurate position), Cup-wall-side welding(ultrasonic wave), robot transfer cup body, silicone-oil lubricating (for top curling, Dimethyl silicone oil 201,Food Grade), bottom-disk punching, bottom pre-heating and pre-folding, main heating, bottom knurling(cool device for 2PE), top curling, cup discharging, collecting.
It is an ideal equipment of making 8~32oz hot drink paper cups(coffee paper cups, tea paper cup, etc), cold drinks paper cups ( cola paper cups, juice paper cups, pepsi paper cups, ice cream paper cups, etc).
- Price Given on T/T Payment, (Extra US$1000/Shipment For L/C Payment.)
- Price Term: FOB Ningbo port, China.
- Payment: T/T( 30% deposit, 70% before delivery) or L/C.
- Lead Time: 30~45 working days at sight the deposit.
- Packaging: Seaworthy Wooden Packing.
- 1 year guarantee, Spare parts guarantee for one year. All life time support.
- English manual, Video. Questions response within 48 hours.
- Send technician for installation & training, the cost cover by buyer ( round tickets,accommodation, an allowance of USD80 a day).
