ZBJ-H12 Heater Paper Cup Machine Video
ZBJ-H12 Heater Paper cup machine Specification:
| Model | ZBJ-H12 Heater |
ZBJ-H12 Ultrasonic |
ZBJ-H16 Ultrasonic |
ZBJ-H22 Ultrasonic |
ZBJ-H32 Ultrasonic |
| Rated Speed: | 45~60pcs/minute | 40~45pcs/m | 35~45pcs/m | 30~40pcs/n | |
| Cup Size Range: | Mold Exchangeable | ||||
| 3~12oz | 8~16oz | 12~22oz | 16~32oz | ||
| Top Diameter : | 45~110 mm | 60~120 | 60~120 | 60~120 | |
| Bottom Diameter : | 30 ~ 80 mm | 50~90 | 50~100 | 50~100 | |
| Cup Height : | 40~115 mm | 45~145 | 80~180 | 100~220 | |
| Suitable PE Paper | One PE Paper | Both ONE or TWO Side PE Coated Paper | |||
| Suitable paper weight: | 140~250gsm | 140~350gsm (Max 450gsm) | |||
| Cup Wall Welding: | Heater Sealing | Ultrasonic Sealing | |||
| Cup Bottom Heating: | Heater | Hot Air (Need Air compressor to provide the air) | |||
| Cup Bottom Knurling: | Heater Knurling | Heater Knurling ( One side PE paper) | |||
| Cool Device (circle water) Knurling (For Two Side PE Paper) | |||||
| Working Power: | 3.3KW | 3.3~3.5KW | |||
| Total Power: | 4.8KW | 6KW | |||
| Working Air Source: | NO need | Air pressure:0.2~0.4Mpa; Air Out-put:0.6m³/minute User should BUY Air-compressor . |
|||
| Power Source: | 50/60Hz, 380V/220V (better use 380V, 3-phase). (Your Power different? Tell us in Advance to avoid mistake) |
||||
| Total Weight: (GW/NW) | 1500KG/1350KG | 1800KG/1650 | 2200KG/2000 | 2500KG/2300 | |
| Pack Size (L*W*H) m | 2.75×1.24×1.7 m | 2.75×1.3×1.7 | 3×1.3×1.9 | 3.2×1.4×2.1 | 3.5×1.5×2.2 |
ZBJ-H12 Heater Paper cup machine description:
ZBJ-H12 Heater Paper Cup Machine is an automatic machine with multi-working station, which has the function of photocell detection, failure alarm, counter and the advantages of humanism design, safer operation and easier maintenance.
It makes only one-side(single) PE-film-coated paper cups after running a whole procedure of automati pre-printed-cup-fan-paper Feeding (Two-step paper-feed and Anti-back device to keep the accurate position), Cup-wall-side welding(ultrasonic wave), robot transfer cup body, silicone-oil lubricating (for top curling, Dimethyl silicone oil 201,Food Grade), bottom-disk punching, bottom pre-heating and pre-folding, main heating, bottom knurling(cool device for 2PE), top curling, cup discharging, collecting.
It is an ideal equipment of making 3~12oz paper cups(hot drink paper cup, coffee paper cup, tea paper cup, etc).

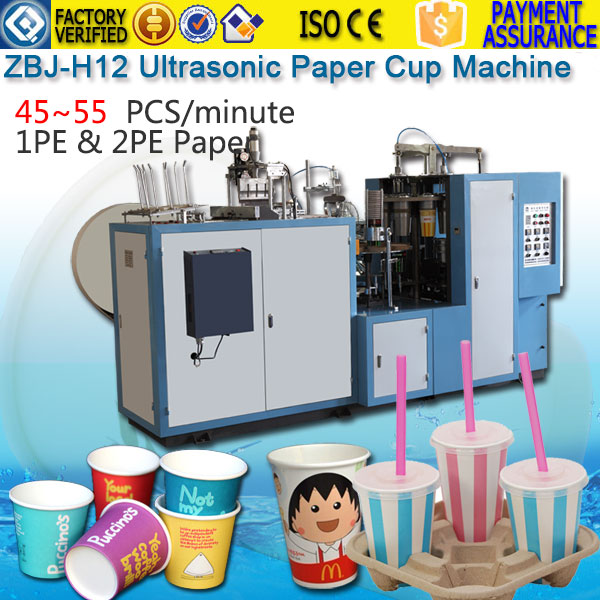

ZBJ-H12 Heater Paper cup machine picture:
heater paper cup machine,price, cost, detail, picture
ultrasonic paper cup forming machine price
- Price Given on T/T Payment, (Extra US$1000/Shipment For L/C Payment.)
- Price Term: FOB Ningbo port, China.
- Payment: T/T( 30% deposit, 70% before delivery) or L/C.
- Lead Time: 30~45 working days at sight the deposit.
- Packaging: Seaworthy Wooden Packing.
- 1 year guarantee, Spare parts guarantee for one year. All life time support.
- English manual, Video. Questions response within 48 hours.
- Send technician for installation & training, the cost cover by buyer ( round tickets,accommodation, an allowance of USD80 a day).
