How to make ripple and double wall paper cups? Double wall ripple paper cup production machine line 150S, to produce two layer anti scalding, hot insulation coffee ripple double wall paper cups.
Require, single wall paper cup forming machine + double wall paper cup sleeve glue machine.
How to make ripple double wall paper cups?
How to make ripple double wall paper cups?
To produce ripple double wall paper cups, require machines working together,

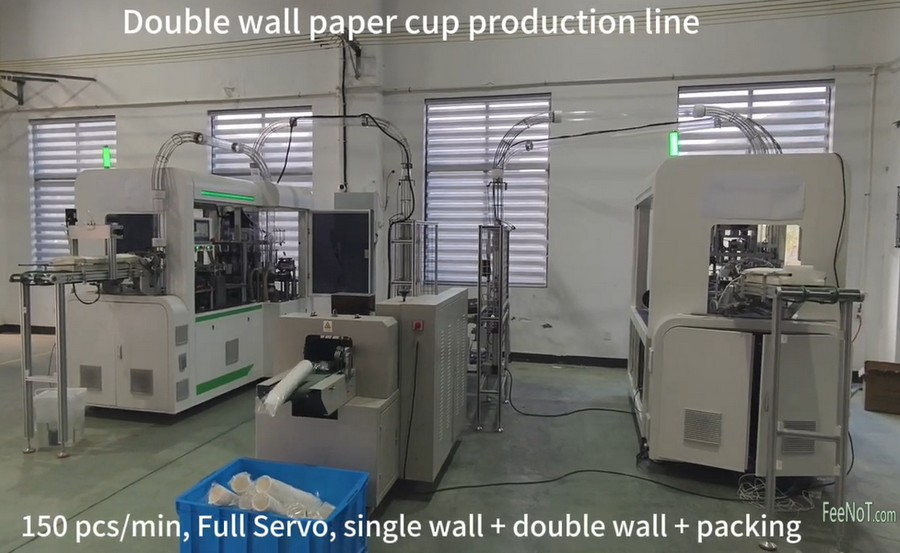

150s all servo single wall paper cup machine + 150S DW16 all servo double wall paper cup sleeve machine + packing machine
150s all servo single wall paper cup machine + 150S DW16 all servo double wall paper cup sleeve machine + packing machine
- 1st, 150S servo paper cup machine, produce single wall paper cups, all servo driven, 150 pcs/minute.
- 2nd, Add a mid-transfer system, collect and transfer single wall paper cups to double wall sleeve machine,
- 3rd, ripple double wall paper cup machine , seal the 2nd layer sleeve, and wrap the sleeve/jacket around single wall cups, all servo driven, 150 pcs/minute.
- 4th, paper cup packing machine, produce 3-side bag, packaging paper cups into plastic / paper bags.
- Whole line, fully automatic, high speed, stable, intelligent.
Info of double wall paper cup production machine
Fully automatic, all servo, Disposable 8oz coffee double wall paper cup sleeve machine, produce ripple wall paper cup, double wall paper cups against customer size.
While hot water coffee tea into single wall paper cups, too hot to hold by hand, the heat will scald the hand finger, to anti-scalding, make a second wall around paper cups to provent hot.
Double wall style: Hollow sleeve: double wall paper cups,
Direct sleeve: ripple/corrugated paper cups, embossed paper cups, and so on.
Specification of double wall paper cup production machine
- Model: 150S DW16,
- Speed: up to 150 pcs/minute,
- Cup size: 4~16oz,
- Top: 45~100 mm,
- Bottom: 30~72 mm,
- Height: 30~135 mm,
- Material: 150~320gsm film coated paper, paper with glossy/varnish print,
- Water glue stick the double wall sleeve and inner cup.
- Water Glue: (polyvinyl acetate emulsion),
- Option: Hot melt glue for side wall sealing, and so on.
- Weight: 3000KG,
- Machine:3200x1650x2100mm,
- Collector: 900 x 700 x 2100mm (against cup size )
- Total power: 30KW (working power 8KW),
- Power: 380V 3-Phase 50/60 Hz,
- Need Air (pressure:0.3~0.5Mpa, Output:300~500 L/m),
- Application: ripple double wall paper cups bowl container,
Picture:

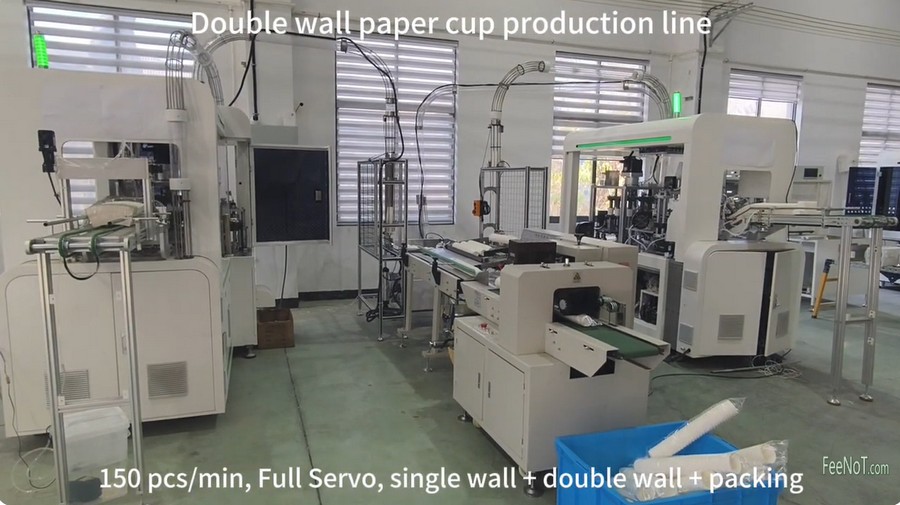

Double wall ripple paper cup production machine line 150S
