Handle paper cup machine 100s new tech hot sale

  • Handle paper cup machine 100s
  • Price: $28,000,
  • Speed: 100 pcs/minute,
  • Cup size: 4~12 oz,
  • Top: 45~100 mm,
  • Bottom: 30~72 mm,
  • Height: 30~115 mm,
  • Two ultrasonic sealing,
  • Material: PE/PLA/PBS film coated paper,
  • Application: handle paper cup, paper cup handle,
BASIC INFO Advance Service Remark Price

Info & Video

Watch handle paper cup machine 100s operation demo video

Paper cup handle together forming machine new tech

More vidoe list on youtube: https://www.youtube.com/@Feenot/featured

New tech handle paper cup machine 100s speed is 100 pcs/min, make 4~12oz hot coffee tea handle paper cups, two ultrasoic sealing, 10 divide open cam, stable & reliable, hot sale.

Firstly this machine improved on hot sale model 100s OC12, which speed is 100pcs/minute,

Handle paper cups are required by some customer who want to use handle hold hot water tea coffee cup, prevent hand hurt by the hot water.

While design this machine, research the market, most of the paper cup handle machine speed is around 50, 70 pcs per minute, we choose the stable model 100s cup machine, improved the speed to 100pcs per minute.

100s paper cup handle stick machine, one ultrasonic, one whole system of handle punch, separately cam control the handle sealing, and handle auto punch.

The functions as following: feed paper cup fan blank, feed roll paper for cup bottom, feed roll paper for cup handle, suck cup fan, punch cup handle disc, sealing handle with cup fan by ultrasonic, then cup wall sealing by ultrasonic, lift cup wall to main mold, bottom punch and insert, heating, knurling, cup top curling, discharge, count & pack.

While connect to the paper cup paking machine, make it full automatic, one packing machine online with 4, 6, paper cup bowl container machines.

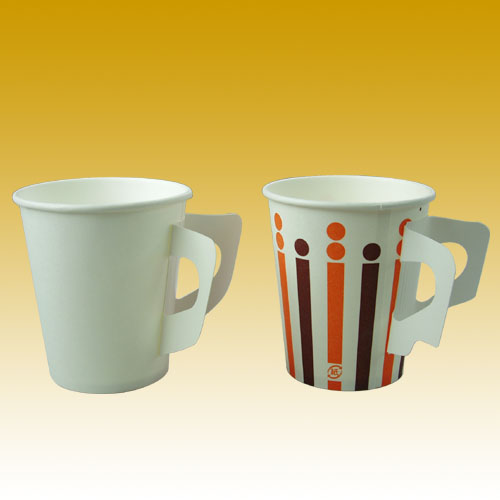

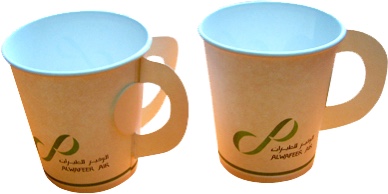

Application: hot drinks tea coffee handle paper cups.

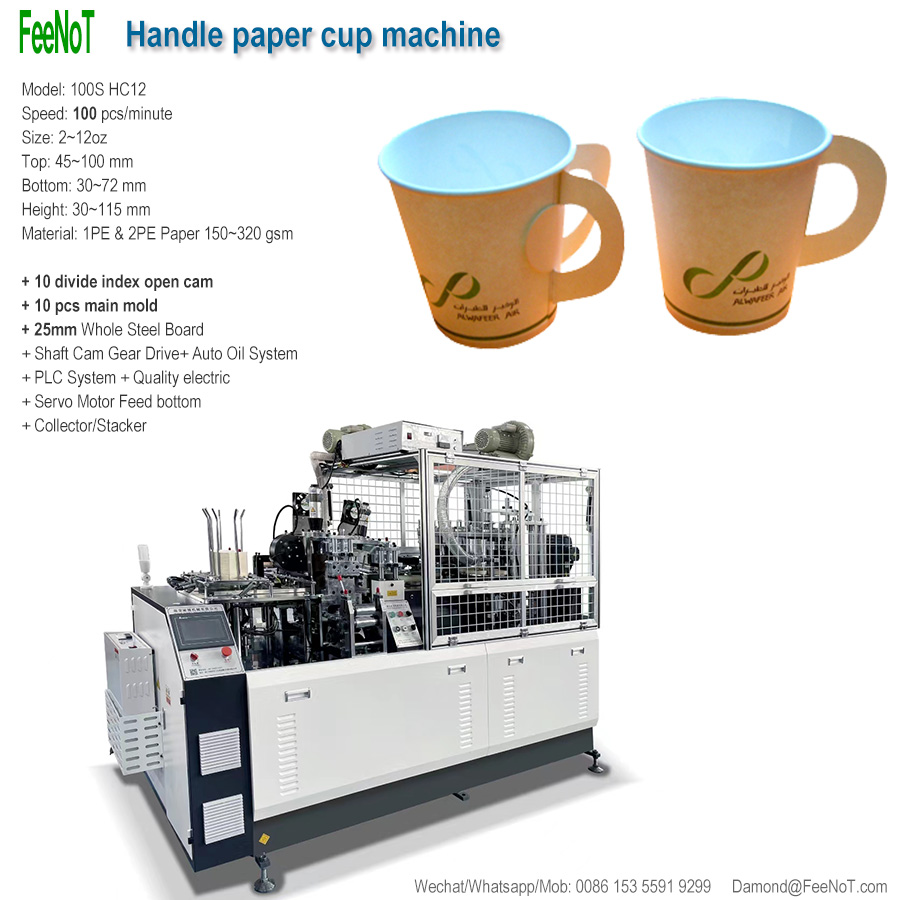

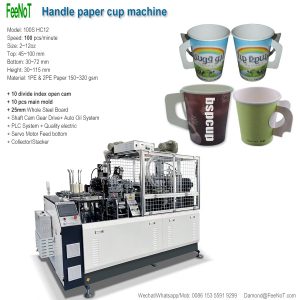

Handle paper cup machine 100S specification

  • Model: 100S HC12,
  • Cup size: 4~12 oz,
  • Top: 45~100 mm,
  • Bottom: 30~72 mm,
  • Height: 30~115 mm,
  • Material: 150~320 gsm 1PE & 2PE paper,
  • Weight: 2600KG,
  • Machine: 2450x1350x1900mm,
  • Collector: 900 x 700 x 2100mm,
  • Total power: 13KW (ceramic hot air),
  • Power: 380V 3-Phase 50/60 Hz,
  • 10pcs main mold (steel + aluminium alloy),
  • 25mm Thick Whole steel board structure base,
  • PLC, intelligent control, automatic oil system,
  • Handle welding: Ultrasonic,
  • Cup wall welding: Ultrasonic,
  • Cup bottom heating: Ceramic hot air (2pcs 4.4KW),
  • Need Air (pressure:0.3~0.5Mpa, Output:300~500 L/m),

handle paper cup machine 100s

Advantage of handle paper cup machine 100s

  • 10pcs main mold (steel + aluminium alloy),
  • 25mm Thick Whole steel board structure base,
  • PLC, intelligent control, automatic oil system,
  • Handle and cup fan welding: Ultrasonic, some other use heater, which is not stick stable,
  • Cup wall welding: Ultrasonic,
  • Cup bottom heating: Ceramic hot air (2pcs 4.4KW),
  • stable 100 speed 10 divide tube cam machine.

Service of handle paper cup machine 100s

  • Spare parts guarantee for one year in machine arrival.
  • We offer a 12 months warranty. During the warranty period, we provide free replacement of damaged parts due to quality problems (post charges covered by buyer). All failures/breaking caused by improper operation of the buyer and/or normal abrasion are not within the warranty.
  • Manual, Video, to help operate machine, Questions response within 48 hours (except holiday).
  • FREE: The buyer come to learn how to operate machine, how to adjust, how to change parts. It is free.(buyer should pay for his cost of ticket, hotel, food, etc).
  • The seller agrees to dispatch technician for installation & training, the cost covered by the buyer.
  • Technician overseas Cost include:
  • 1, Mechanic allowance, (for example one machine training 5days, on the way 2days, total 7days, $150*7=$1050).
  • 2, Ticket cost, round ticket cost (different country the cost different),
  • 3, Visa cost, some country need visa cost,

Remark of handle paper cup machine 100s

  • Price Term: FOB Ningbo port, China. (INSURANCE OUT OF CHINA COVERED BY THE BUYER)
  • Payment Term: T/T payment (30% deposit, 70% before delivery). ** The buyer is welcomed to test machine before delivery.
  • Delivery Time: 30~50 working days at sight the deposit. (actual delivery time given while order confirm)
  • Package: Standard export package. (need special package, please info us in advance).
  • Warranty: One year from the equipment arrival.
  • Power Source: The power source: 380V 3-Phase, 50/60Hz (R, S, T, N line, please confirm power source before start order).

Price of handle paper cup machine 100s
