ZBJ-H12 India Heater Paper Cup Machine Video
ZBJ-H12 Heater Paper cup machine Specification:
|Cup Size Range:||Mold Exchangeable|
|Top Diameter :||45~110 mm||60~120||60~120||60~120|
|Bottom Diameter :||30 ~ 80 mm||50~90||50~100||50~100|
|Cup Height :||40~115 mm||45~145||80~180||100~220|
|Suitable PE Paper||One PE Paper||Both ONE or TWO Side PE Coated Paper|
|Suitable paper weight:||140~250gsm||140~350gsm (Max 450gsm)|
|Cup Wall Welding:||Heater Sealing||Ultrasonic Sealing|
|Cup Bottom Heating:||Heater||Hot Air (Need Air compressor to provide the air)|
|Cup Bottom Knurling:||Heater Knurling||Heater Knurling ( One side PE paper)|
|Cool Device (circle water) Knurling (For Two Side PE Paper)|
|Working Air Source:||NO need||Air pressure:0.2~0.4Mpa; Air Out-put:0.6m³/minute
User should BUY Air-compressor .
|Power Source:||50/60Hz, 380V/220V (better use 380V, 3-phase).
(Your Power different? Tell us in Advance to avoid mistake)
|Total Weight: (GW/NW)||1500KG/1350KG||1800KG/1650||2200KG/2000||2500KG/2300|
|Pack Size (L*W*H) m||2.75×1.24×1.7 m||2.75×1.3×1.7||3×1.3×1.9||3.2×1.4×2.1||3.5×1.5×2.2|

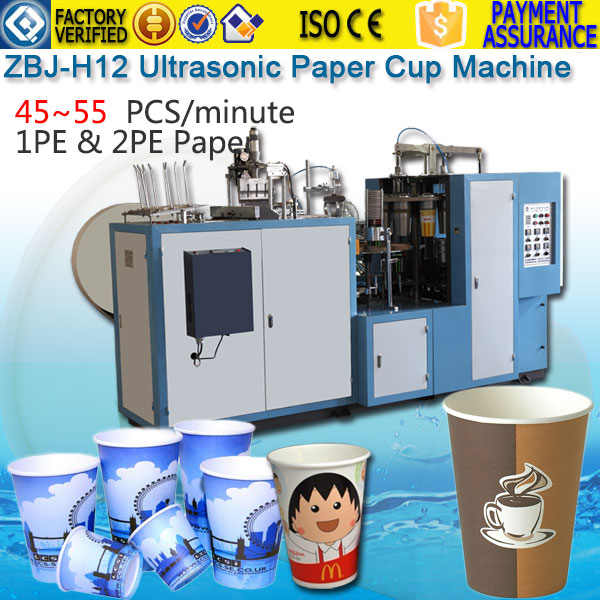

ZBJ-H12 Heater Paper cup machine description:
ZBJ-H12 Heater Paper Cup Machine is an automatic machine with multi-working station, which has the function of photocell detection, failure alarm, counter and the advantages of humanism design, safer operation and easier maintenance.
It makes only one-side(single) PE-film-coated paper cups after running a whole procedure of automati pre-printed-cup-fan-paper Feeding (Two-step paper-feed and Anti-back device to keep the accurate position), Cup-wall-side welding(ultrasonic wave), robot transfer cup body, silicone-oil lubricating (for top curling, Dimethyl silicone oil 201,Food Grade), bottom-disk punching, bottom pre-heating and pre-folding, main heating, bottom knurling(cool device for 2PE), top curling, cup discharging, collecting.
It is an ideal equipment of making 3~12oz paper cups(hot drink paper cup, coffee paper cup, tea paper cup, etc).
