Paper noodle box forming machine 120s new tech

  • 120s paper noodle box forming machine
  • Price: US$55,000/set,
  • Speed: 120 pcs/minute,
  • Top: 75~150 mm,
  • Bottom: 70~130 mm,
  • Height: 55~110 mm,
  • servo system instead of old mechanism transmission,
  • one servo control one movement, easy maintenance,
  • 10pcs main mold + 8pcs curling mold,
  • Application: soup noodle salad paper bowl container,
BASIC INFO Advance Service Remark Price

Video of 120s paper noodle box forming machine

Watch 120s paper noodle box forming machine operation demo video

More vidoe list on youtube: https://www.youtube.com/@Feenot/featured

paper noodle box forming machine

New tech 120s paper noodle box forming machine speed 120pcs/min, making soup noodle paper bowl container, salad paper bowl, adopt all servo system, stable & reliable.

Adopt new tech all servo motor instead of old bulky long shaft-cam-gear-chain mechanism system, old cup machine very difficult to change parts, if any parts broken, need move all the structure, New tech all servo paper cup machine each servo control one movement function, easy maintenance, high efficient.

It is a full automatic machine to make paper cup bowl container with the function of paper cup fan blank feed, cup wall sealing, cup body lift and transfer, bottom punch, heating, knurling, cup top curling, finished cups discharge, count, collect.

Widly application for example: salad paper bowl, food paper container, noodle paper bowl, take away box, soup bowl, juice container.

Specification of 120s paper noodle box forming machine

  • Model: 120S All Servo,
  • Speed: 120 pcs/minute,
  • Cup size: 20~35oz,
  • Top: 75~150 mm,
  • Bottom: 70~130 mm,
  • Height: 55~110 mm,
  • Material: 190~320 gsm 1PE & 2PE paper,
  • Weight: 3500KG,
  • Machine:2600x1750x1900mm,
  • Collector: 1100 x 1100 x 2100mm (against cup size ),
  • Total power: 35KW, Working power 15KW,
  • Power: 380V 3-Phase 50/60 Hz,
  • Need Air (pressure:0.3~0.5Mpa, Output:300~500 L/m),
  • Application: hot drink coffee tea paper cup, cold drink cola juic paper cup,

FeeNoT NEW Technology Machinery

FeeNoT new tech machinery focus on new technology all servo paper cup bowl making machine, ripple double wall paper cup machine, paper lid cover cap machine, paper plate dish machine, carton paper box container machine, multi-compartment paper lunch box machine, square rim paper cup bowl container machine, muffin cake machine, packing machine for cup bowl container lid cover cap, print machine, die cutting machine, paper cup material, customize printe paper cup fan stock, New tech paper container package solution.

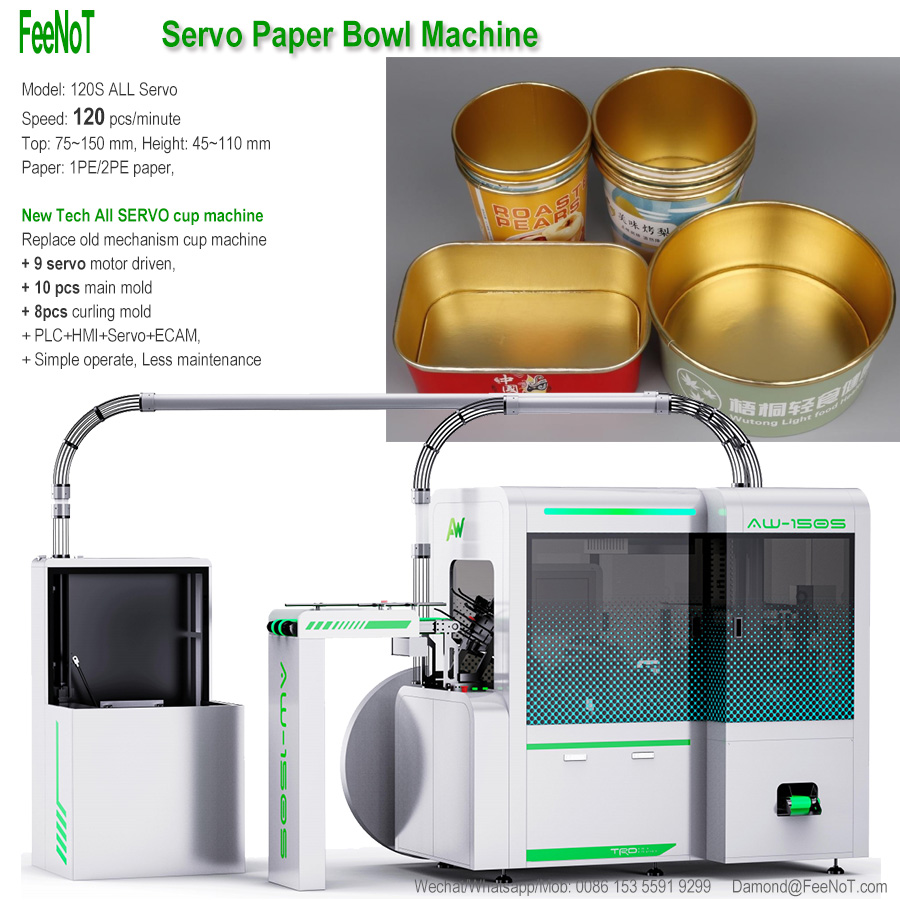

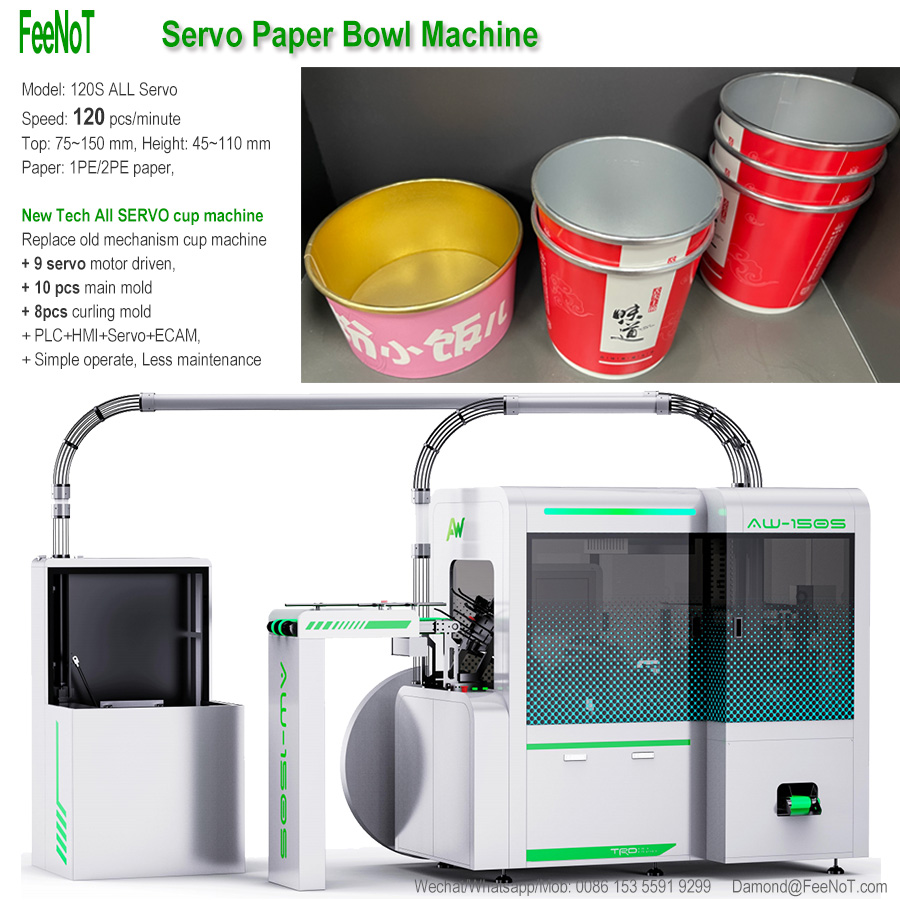

120s paper noodle box forming machine

paper-noodle-box-forming-machine-120s-servo
paper-noodle-box-forming-machine-120s-servo

Advantage of 120s paper noodle box forming machine

  • Servo drive system instead of old complicated mechanism transmission,
  • Old bulky long shaft-cam-gear easy wear out, broken,
  • Servo+ECAM+PLC+HMI, efficient, intelligent, stable, reliable,
  • 9sets Servo motor system instead of cam-shaft-chain-gear-links, accuracy, stable, reliable, Simple operate, easy maintenance.
  • 10pcs main mold plate rotate Servo,
  • 8pcs cup curling mold rotate Servo,
  • paper cup fan feed drive Servo,
  • cup-fan suck and cup wall sealing assembly Servo,
  • paper cup wall turn Servo,
  • the cup wall lift transfer Servo,
  • bottom roll feed Servo,
  • cup bottom disc punch Servo,
  • bottom heating knurling up/down servo,
  • 10pcs quality ally cup mold, angle 36 degree,
  • 8pcs curling mold (twice curling), angle 45 degree, ,
  • 30mm Thick Whole steel board structure base, stable,
  • cup fan blank feeder 1 meter (high speed, feed more blanks one time)
  • Cup wall welding: Ultrasonic + ceramic hot air,
  • Bottom heating: Ceramic hot air (2pcs 4.4KW),

Service of 120s paper noodle box forming machine

  • Spare parts guarantee for one year in machine arrival.
  • We offer a 12 months warranty. During the warranty period, we provide free replacement of damaged parts due to quality problems (post charges covered by buyer). All failures/breaking caused by improper operation of the buyer and/or normal abrasion are not within the warranty.
  • Manual, Video, to help operate machine, Questions response within 48 hours (except holiday).
  • FREE: The buyer come to learn how to operate machine, how to adjust, how to change parts. It is free.(buyer should pay for his cost of ticket, hotel, food, etc).
  • The seller agrees to dispatch technician for installation & training, the cost covered by the buyer.
  • Technician overseas Cost include:
  • 1, Mechanic allowance, (for example one machine training 5days, on the way 2days, total 7days, $150*7=$1050).
  • 2, Ticket cost, round ticket cost (different country the cost different),
  • 3, Visa cost, some country need visa cost,

Remark of 120s paper noodle box forming machine

  • Price Term: FOB Ningbo port, China. (INSURANCE OUT OF CHINA COVERED BY THE BUYER)
  • Payment Term: T/T payment (30% deposit, 70% before delivery). ** The buyer is welcomed to test machine before delivery.
  • Delivery Time: 30~50 working days at sight the deposit. (actual delivery time given while order confirm)
  • Package: Standard export package. (need special package, please info us in advance).
  • Warranty: One year from the equipment arrival.
  • Power Source: The power source: 380V 3-Phase, 50/60Hz (R, S, T, N line, please confirm power source before start order).
