Ripple paper cup machine

  • Ripple paper cup machine
  • Model: DW22
  • Speed: 70~80 pcs/min,
  • Size: 4~22oz paper cup
  • Material: PE paper or glossy printed paper,
  • Tube barrel cam + shaft + gear drive,
  • Usage: double wall ripple paper cups,
  • Manufacturer factory price :
BASIC INFO

Video of Ripple paper cup machine DW22

Working video playlist on youtube

Video of Ripple paper cup machine DW22

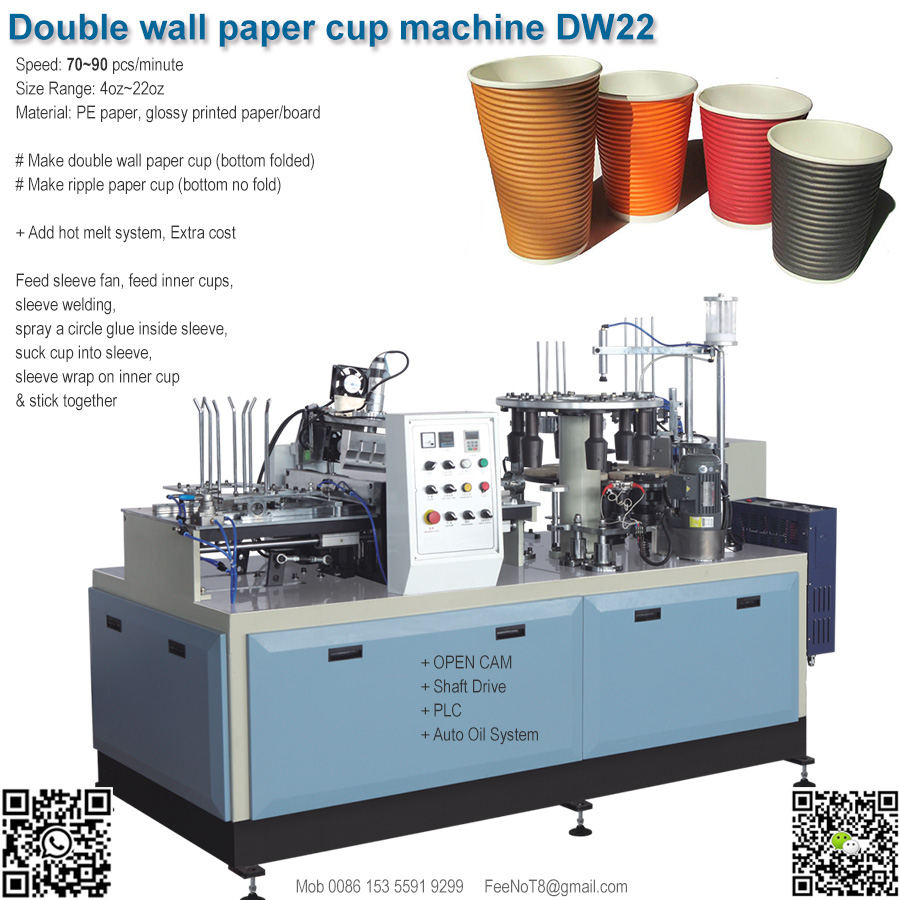

Picture of Ripple paper cup machine DW22

Picture of Ripple paper cup machine DW22

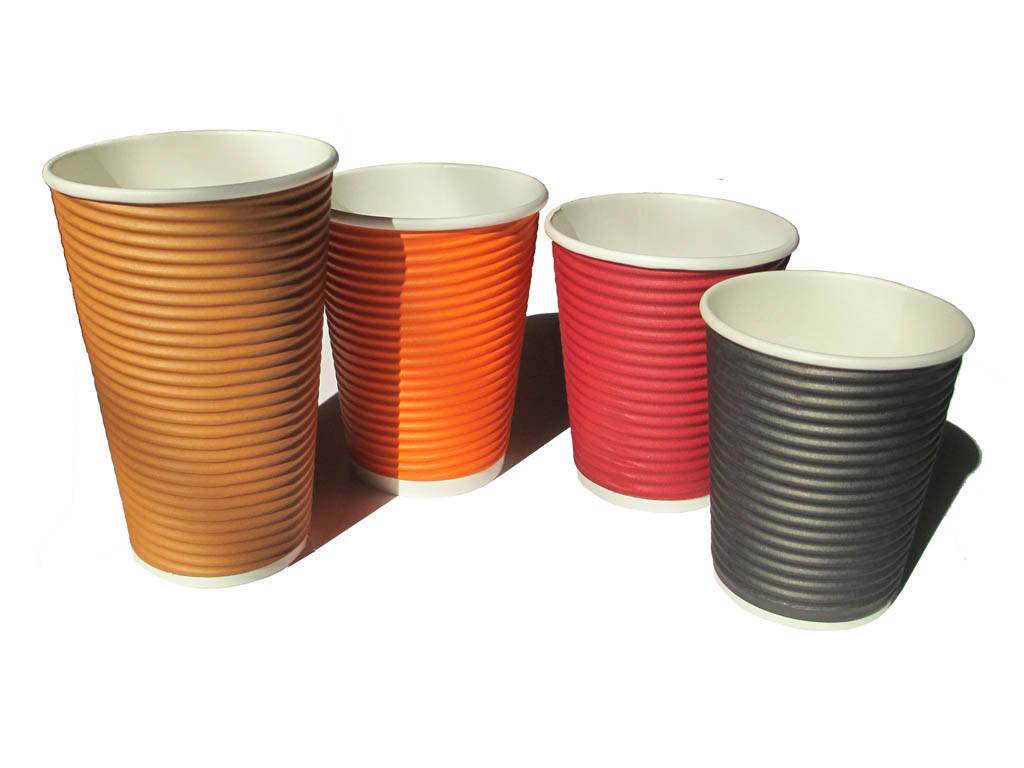

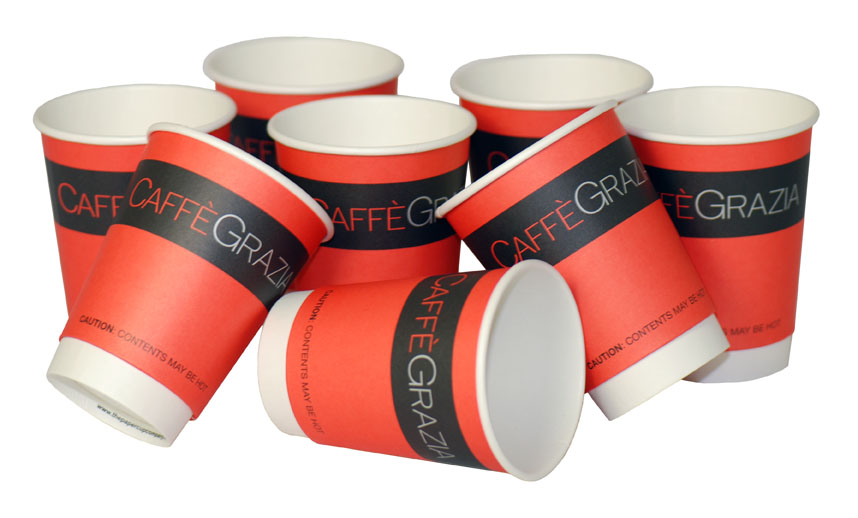

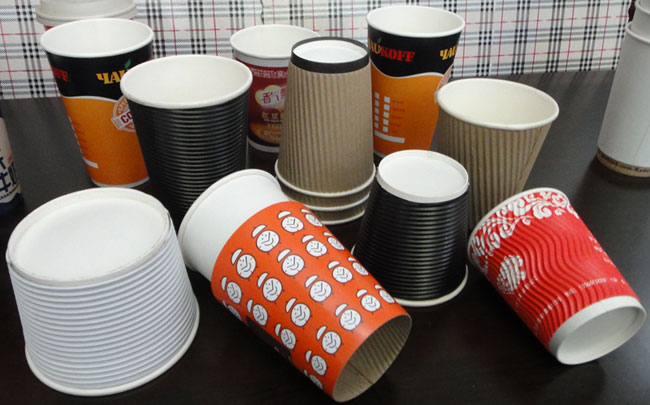

double wall ripple paper cup machine
double wall ripple paper cup machine

Character of Ripple paper cup machine DW22

  • Speed: 70~100 pcs/minute, Mate for OC12 cup machine,
  • Size range: 4~22oz cup,
  • T: 50~95mm; B: 45~70mm; H: 45~170mm,
  • Material: 150~350gsm PE paper or glossy printed paper,,
  • Total Power:5KW,
  • Power source: 380v 3-Phase, 50/60 Hz,
  • Weight: 2200/2000KG,
  • Machine size: 2.67 x 1.28 x 1.9 (2.5 x 1.1 x 1.7) ,
  • Air requirement: pressure:0.3~0.5Mpa, Output:100~300 L/m,
  • We Reserve the right to alter specifications without prior notice.,
  • ,

To make double wall paper cups, (ripple or double wall)

  • Need two style machines,
  • A, Paper cup machine, to make the inner white cup, single wall cup,
  • B, Paper cup sleeve machine, to make and adhesive sleeve around the inner cup.

Description of Ripple paper cup machine DW22

  • WT-22 double wall cup machine is a kind of automatic double layer cup forming machine. It comes with open intermittent indexing cam mechanism and gear transmission, longitudinal axis structures. The whole machine adopts automatic lubrication system, which makes all mechanical parts working much more smoothly. It has functions of automatic paper feeding row by row, ultrasonic sealing, paper cylinder transferred by mechanical arm, oiling, bottom folding, stepping glueing system, air cylinder system and double wall paper cup stacking.,
  • It has invertor for auto speed adjusting, stops automatically if any problem controlled by sensors, so that the machine is well protected and becomes more durable.,
  • We adopt separate cam drivers on the left and right of cup side sealing device, with open-cam structure, and the working status is quiet and stable, which is the top technology owned by us in China. It can make cups with different sizes by changing molds.,
  • ,

Advantage of Ripple paper cup machine DW22

  • PLC + OPEN CAM + Automatic oil system,,
  • Sleeve welding by ultrasonic, ,
  • Auto bottom folded (hollow sleeve cup),,
  • Circle spray water glue inside sleeve cone body,,
  • Auto suck inside cup down & adhesive with sleeve,,
  • Water Glue :(polyvinyl acetate emulsion),,
